EPSON Stylus Photo R1900/R2880/R2000/R2000s/SC-P400 Series Revision I
Disassembly And Assembly Disassembling the Printer Mechanism 98
4.4.4 Lower Housing / Printer Mechanism
1. Remove the Upper Housing / Printer Cover. (p.83)
2. Disconnect the PictBridge cable from connector CN1 on the Main Board.
3. Disconnect the High Voltage Module cable from connector CN25 on the Main
Board.

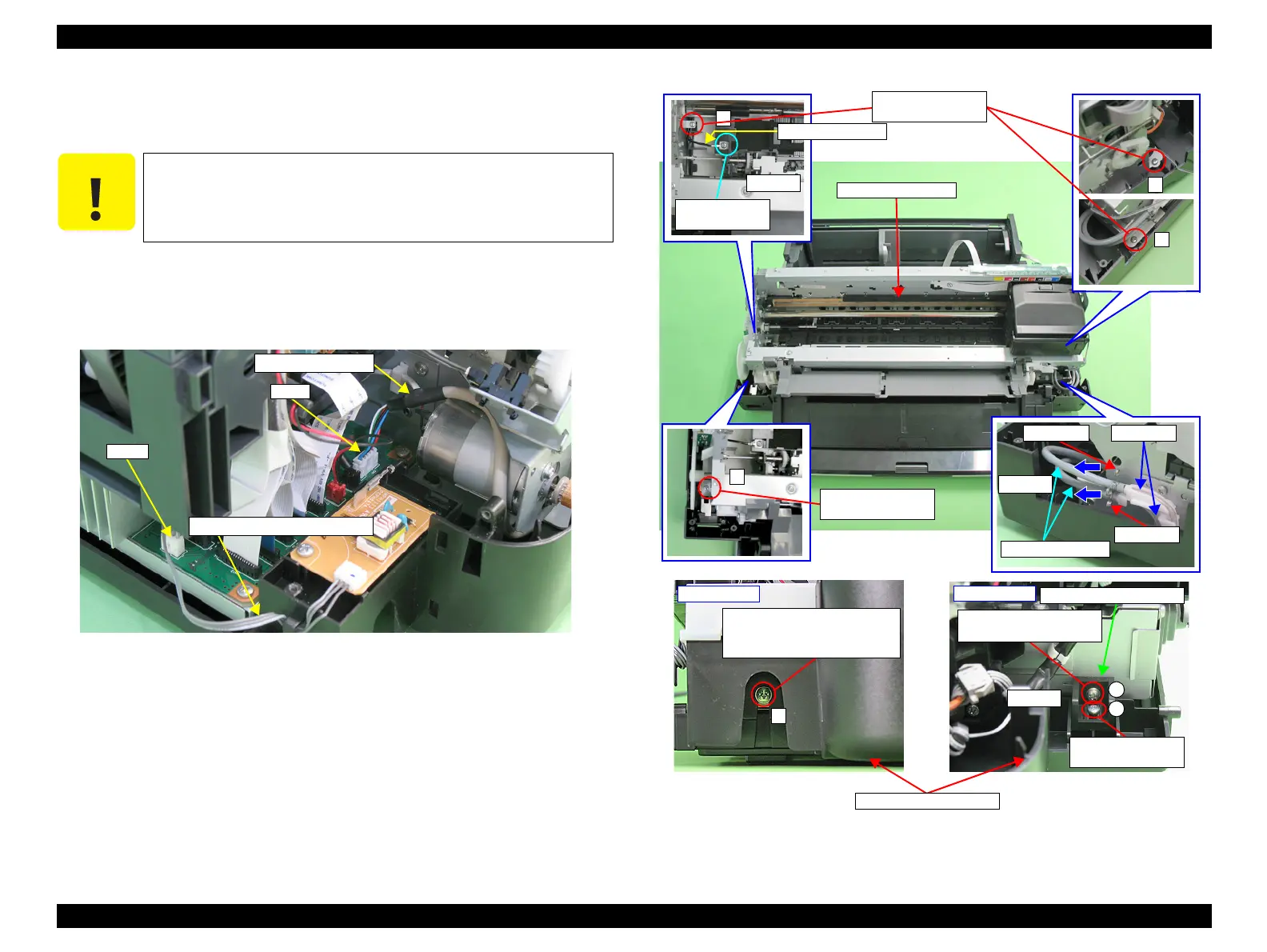

Figure 4-61. Removing the Lower Housing and Printer Mechanism
4. Grip both ends of the two Ink Tube Fasteners with your fingers, slide them in the
direction of the arrows, and pull out the Waste Ink Tubes from the two Ink Tubes.
5. Remove the C.B.P. M3 x 8 screw that secures the electrode cable on the Front
Paper Guide and remove the electrode cable.
6. Remove the C.B.P. M3 x 10 screw and the C.B.S. (P2) M3 x 10 screw that secure
the Shield Plate Holder, and remove the Shield Plate Holder.
7. Remove the five screws and one washer that secure the Printer Mechanism. (four
C.B.P. M3 x 10 screws, one P.W.,4.3 x 0.8 x 8 washer attached with one of the
C.B.P. screws, and one C.B.S. (P2) M3 x 10 screw)
Figure 4-62. Screws that Secure the Printer Mechanism
C A U T I O N
following steps, be extremely careful not to If having trouble
disassembling, Module Cover to make the work easier. (refer to
4.3.3 High Voltage Module Step2 (p89) .)
PictBridge cable
CN1
CN25
High Voltage Module cable
1
3
4
4) C.B.P. M3x8
(6±1 kgf.cm)
Step 5
Fastener
Step 4
Waste Ink Tube
Ink Tube
Fastener
2
1) C.B.P. M3x10
(6±1 kgf.cm)
Printer Mechanism
Electrode cable
1) C.B.P. M3x10
(6±1 kgf.cm)
5
3) C.B.S. (P2) M3x10 &
P.W.,4.3 x 0.8 x 8
(6±1 kgf.cm)
Left Rear
Shield Plate Holder
Step 6
1) C.B.P. M3x10
(6±1 kgf.cm)
3) C.B.S. (P2) M3x10
(6±1 kgf.cm)
Right Rear
A
B
Lower Housing
