Disassembly And Assembly Removing the Housings 80
4.2.5 Panel Unit
1. Open the Printer Cover.
2. Open the Front Cover and CDR Tray Base.

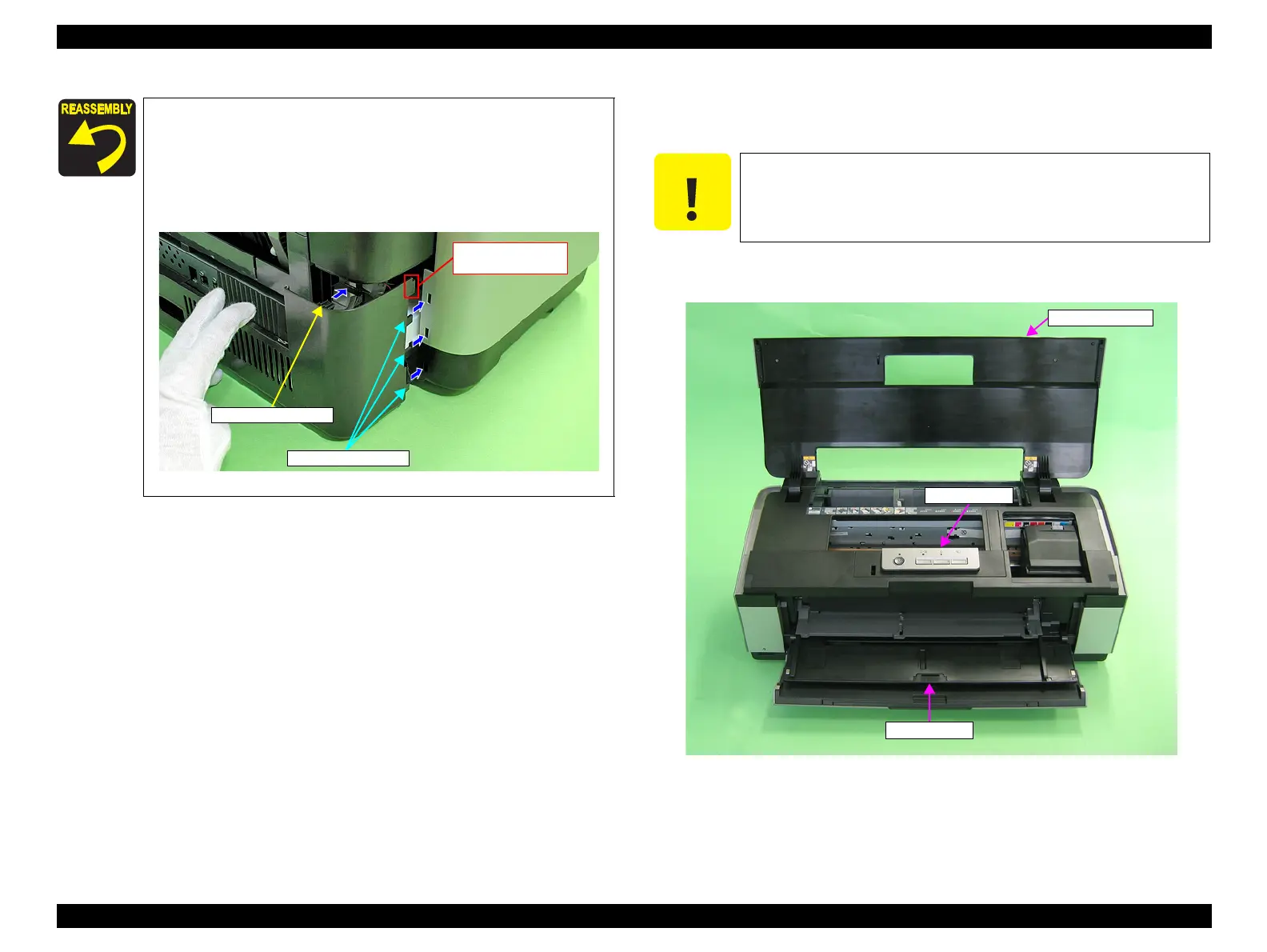

Figure 4-13. Removing the Panel Unit (1)
 Align the positioning tabs (one each on the left/right) with the
positioning holes (one each on the left/right) on the Upper
Housing.
 Align the positioning tabs (three each on the left/right) with the
positioning holes (three each on the left/right) on the Decoration
Plate Left/Right and the Lower Housing.
Figure 4-12. Reinstalling the Rear Housing
Positioning tab
Hook this to the
Upper Housing
Positioning tab
C A U T I O N
Before opening the Front Cover and CDR Tray Base, unlock the
Carriage. (Refer to "4.1.6 Locking/Unlocking the Carriage and
Opening/Closing the CDR Tray Base (p75)")
Panel Unit
Front Cover
Printer Cover
