Epson Stylus Photo R2000s Series - 4.2.7 Upper Housing; Printer Cover

EPSON Stylus Photo R1900/R2880/R2000/R2000s/SC-P400 Series Revision I
Disassembly And Assembly Removing the Housings 83
4.2.7 Upper Housing / Printer Cover
1. Remove the Decoration Plate Left/Right. (p.82)
2. Remove the Panel Unit. (p.80)
3. Open the Front Cover and CDR Tray Base. (Refer to 4.1.6 Locking/Unlocking the
Carriage and Opening/Closing the CDR Tray Base (p.75))
4. Remove the seven C.B.P. M3 x 10 screws that secure the Upper Housing.
5. Remove the Upper Housing while pulling out the CDR Sensor cable and the Panel
FFC through the cutout of the Upper Housing.

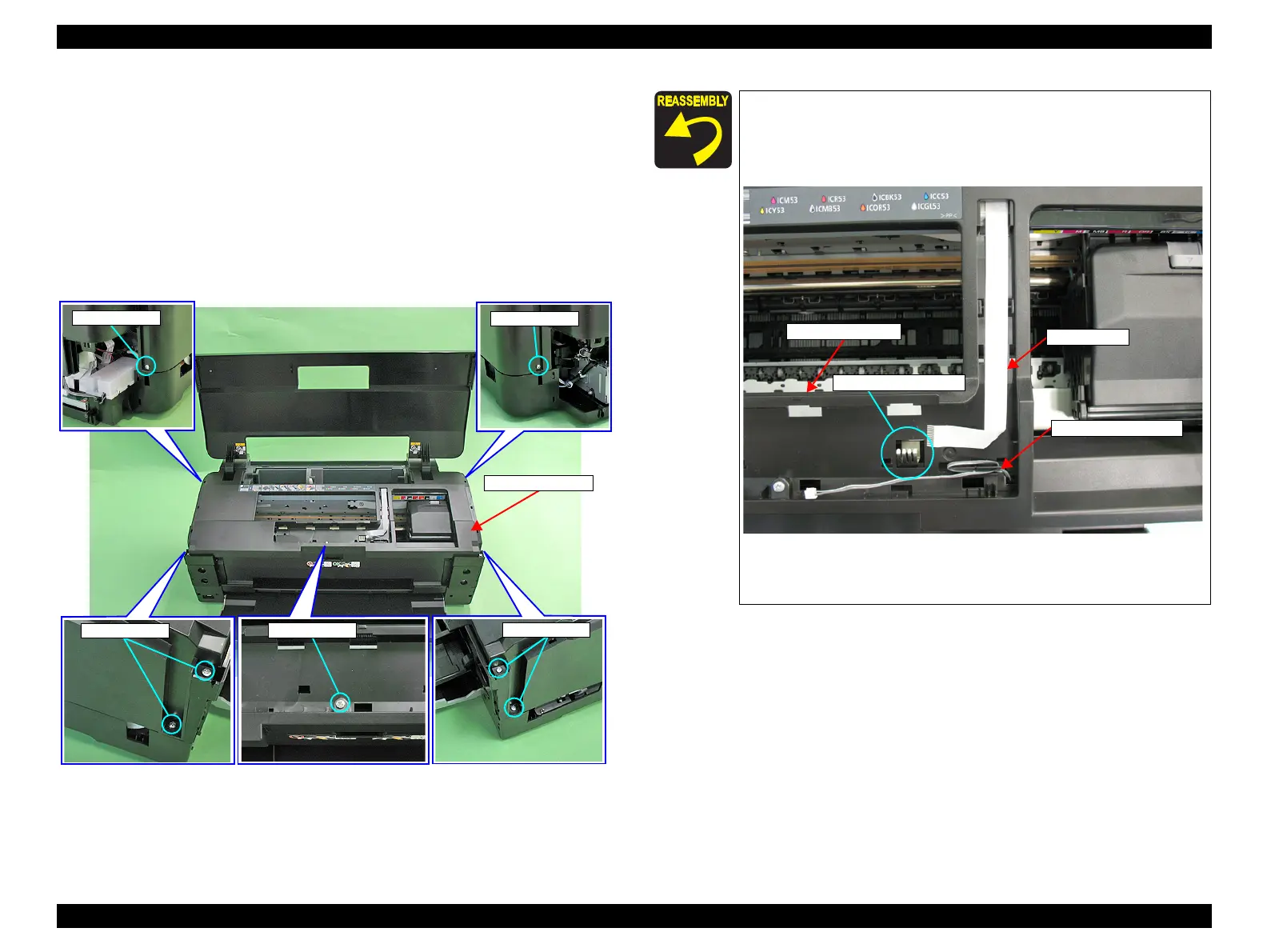

Figure 4-18. Remove the Upper Housing
C.B.P. M3x10
C.B.P. M3x10
C.B.P. M3x10
C.B.P. M3x10
C.B.P. M3x10
Upper Housing
 Route the Panel FFC and CDR Sensor cable correctly as shown
in the following Figure.
 Install the Upper Housing so that the Grounding Plate properly
protrudes through the cutout of the Upper Housing.
Figure 4-19. Routing Panel FFC and CDR Sensor Cable
 Tighten the screws in the order shown in Figure 4-18.
CDR Sensor cable
Panel FFC
Upper Housing
Grounding Plate
