9.5.4 Adjustment Procedure
9.5.4.1 Colorimetric calibration
OVERVIEW OF THE COLORIMETRIC CALIBRATION
Purpose
It can make revision values which adjust printing color of user’s printer
and SEC standard unit equally. For SC-P400 Series, the colorimetric
calibration can be done in the service mode only.
The following parts have an influence on ink discharge, therefore revision is
necessary after part exchange.
• Printhead
• Main board
• Power board
This revision values are applied to the EPSON genuine printer driver.
Tools
Note "*": It is downloaded automatically if connected to the network when a PC starts EPSON
ColorBase2.

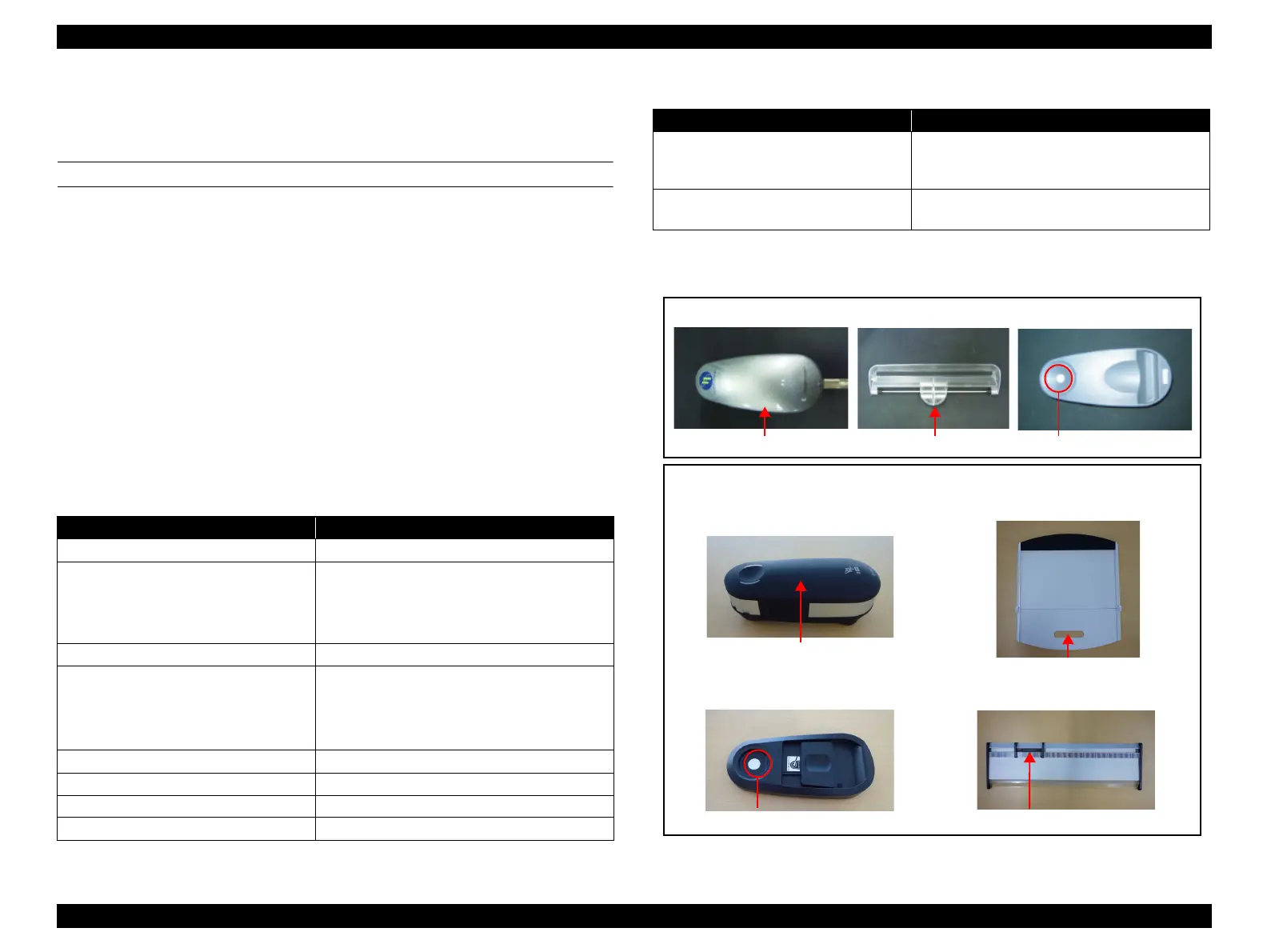

Figure 9-5. Calibrator and accessories
Table 9-9. Tools for Colorimetric Calibration
Tools Purpose / Specification
Plain paper (A4/Letter) For checking the nozzles.
Ultra Premium Presentation Paper Matte
Enhanced Matte Paper, Archival Matte
Paper
(A4/Letter)
For printing the calibration chart.
Colorimetric Calibration application EPSON ColorBase2
PC OS: refer to Table 9-10.
The following files must be installed on the PC:
- Printer driver for the model to be adjusted
- Adobe AIR Runtime
*
Calibrator X-Rite i1Pro (with UV filter) or i1Pro2
White reference tile Accessory of calibrator
Scanning ruler Accessory of calibrator
Backing board Accessory of calibrator
Premium Glossy Photo Paper For using as a background of the color chart
during scanning (only when a backing board is
not attached to calibrator).
Two USB cables For connecting printer and calibrator to PC with
two USB cables.
Table 9-9. Tools for Colorimetric Calibration
Tools Purpose / Specification
Calibrator
Scanning ruler
i1Pro calibrator / accessories
White reference tile
Calibrator
Backing board
White reference tile
Scanning ruler
i1Pro2 calibrator / accessories
