EPSON Stylus Photo R1900/R2880/R2000/R2000s/SC-P400 Series Revision I
Troubleshooting Overview 42

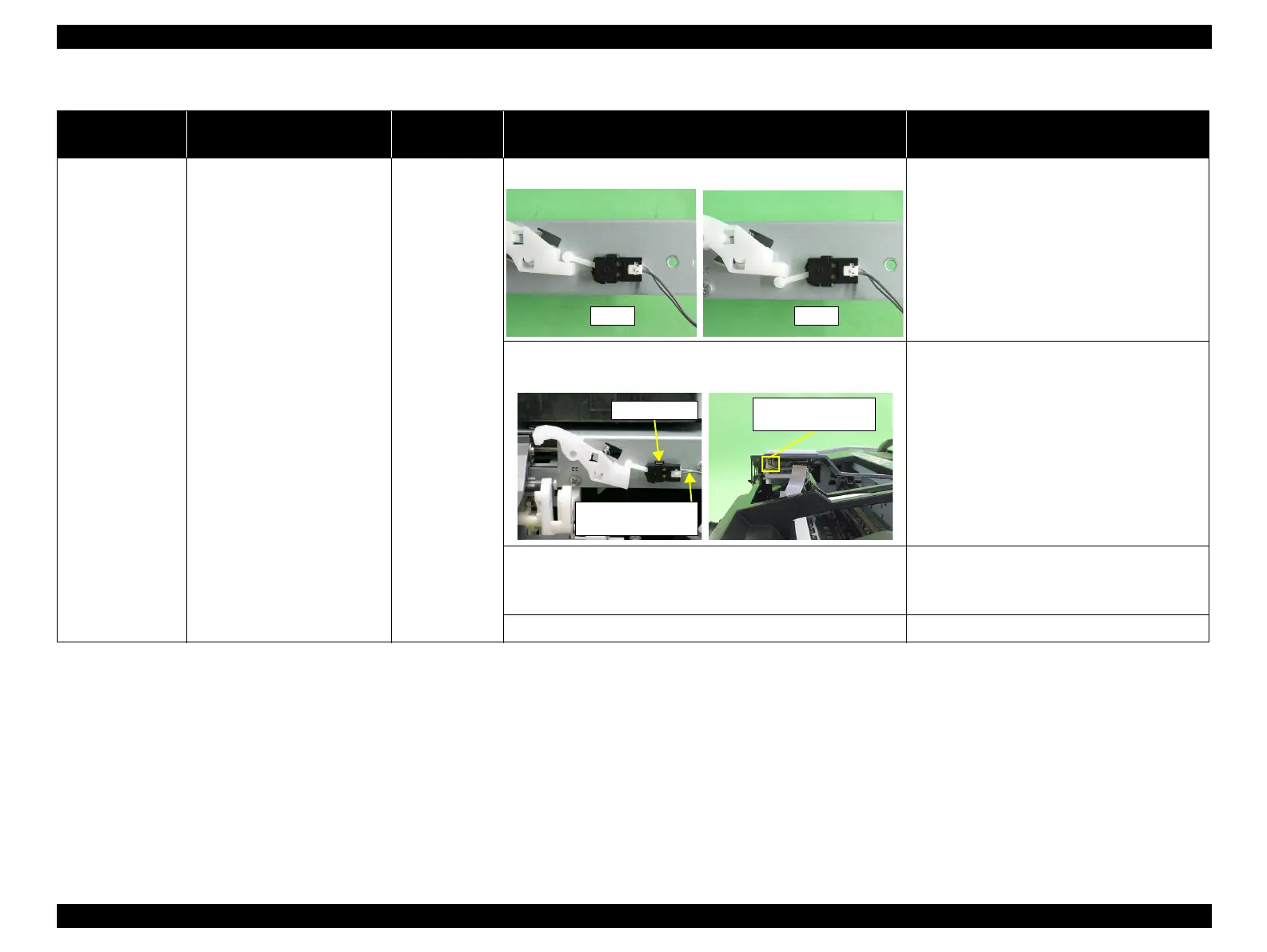

Table 3-4. Troubleshooting of CDR Guide Error
Occurrence
Timing
Phenomenon Detail
Faulty Part/
Part Name
Check Point Remedy
At operation CDR Guide Error is indicated on
the LED and STM3 when CD/
DVD printing is executed after
the CDR Tray Base is opened and
the CDR Tray is inserted.
CDR Sensor 1. Check that the CDR Sensor is installed correctly. 1. Install the CDR Sensor correctly.
2. Check that the connector cable of the CDR Sensor is connected
to the CDR Sensor and the connector on the Panel Board.
2. Connect the connector cable of the CDR
Sensor to the CDR Sensor and the Panel Board.
3. Using a tester, check that the CDR Sensor is normal.
CDR Tray Base open: 3.3V
CDR Tray Base closed: 0V
3. Replace the CDR Sensor with a new one.
4. Check the CDR Sensor or connector cable for damages. 4. Replace the CDR Sensor with a new one.
OK NG
Connector on the
Panel Board
