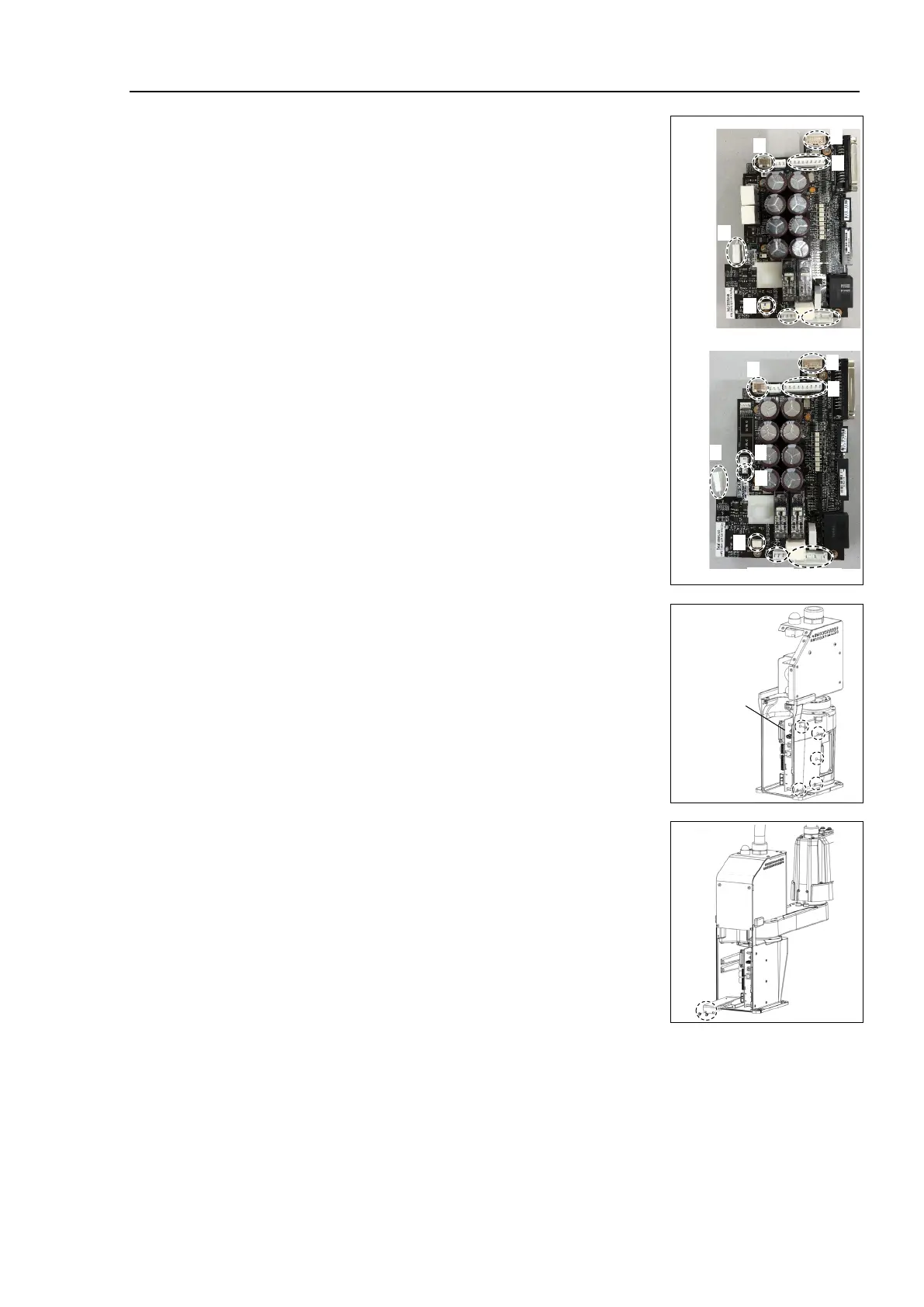

T3-B T6-B Maintenance 14. Lithium Battery, SD Card, Boards, and Filter
T-B series Maintenance Manual Rev.1 119
(8)
Connect CPU/DPB board connector.
A: Power connector (IN/OUT
×1 for each)
B: Power cable connector (
×1)
C: Signal cable connector
D: Hand I/O connector
E: LED connector
F: Regenerative resistor 1 (T6-B only)
G: Regenerative resistor 2 (T6-B only)
H: Battery connector
E
D
B
C
A-OUT
A-IN
T3-B
H
E
D
B
C
A-OUT
A-IN
F
G
T6-B
H
(9)
Mount CPU/DPB board to base.
Hexagon socket head cap button bolt: 5-M3x5
Tightening torque: 0.45 ± 0.1 N·m
CPU/DPB
Board
(10)
T6
-B:
Mount the regenerative resistor fixing plate
and connect the connector of regenerative resistor
junction cable.
2-M4×8 Sems
(11)
Connect the following parts to the inside of the connector plate.
Air tube
TP connector
(12)
Mount the connector plate.
Reference: “7.4 Connector Plate”
