14.3 Replacing the SD Card
Name
Quantity
NOTE
Maintenance
part
SD card 1 2182748
Tools
Cross-point screwdriver (No.2)
1
Remove the SD card after removing the fieldbus I/O module if fieldbus I/O module is
inserted to the option slot. Also, install fieldbus I/O module after installing the SD
card. Also, install fieldbus I/O module after installing the SD card.
For more details about fieldbus I/O module, refer to the following.
Reference: T-B series Manual T3-B T6-B Manipulator
17. Fieldbus I/O
SD Card
Removal
(1)
Turn OFF the Manipulator.
(2)
Remove the power plug.
(3)
Remove the optional slot cover on the back face
of the Manipulator.
Sems bolt: 2-M3×6
Option
Slot Cover

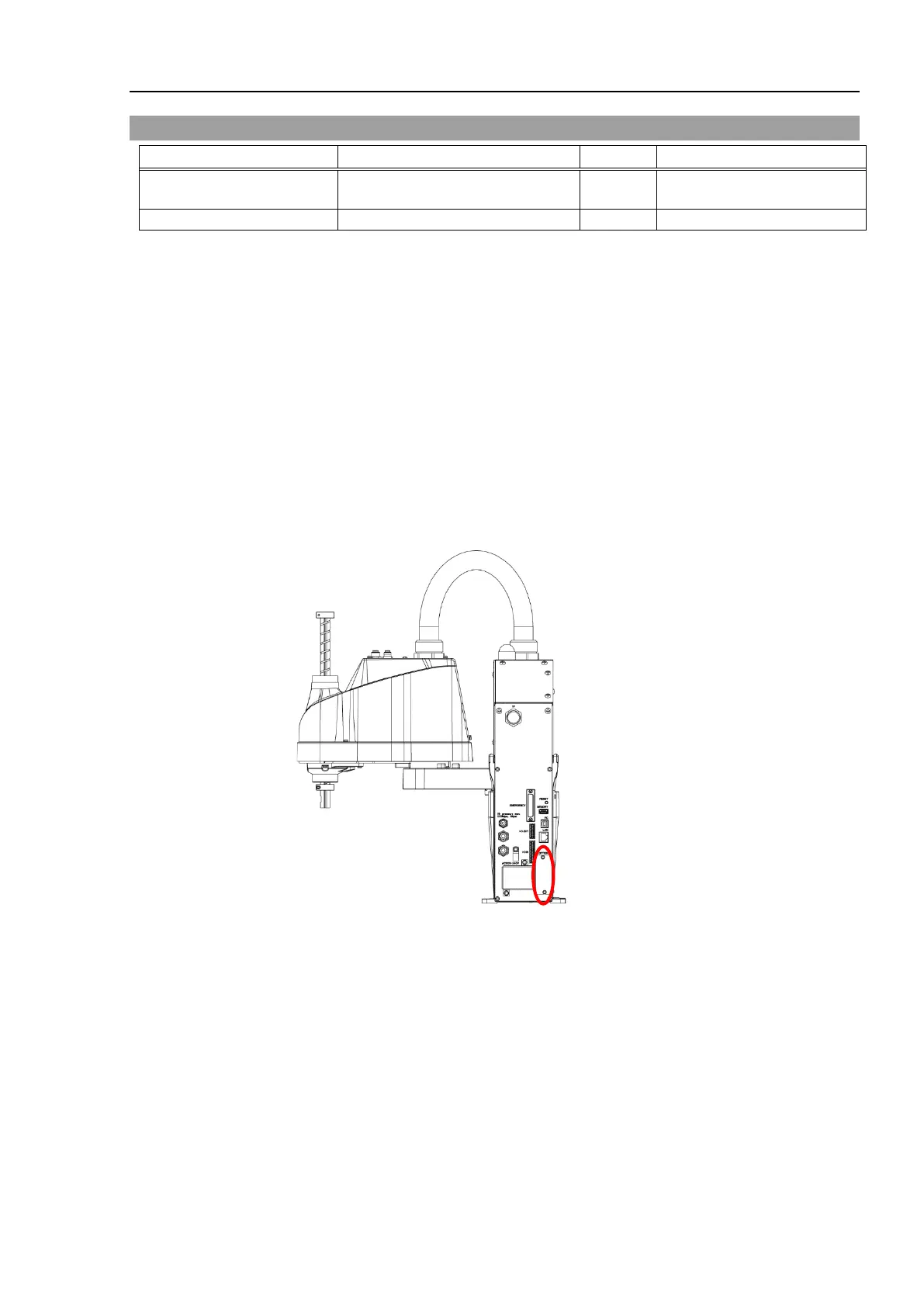

(Illustration: T3-B
401S)
(4)
Push the SD card which is inserted near the option slot to eject.
SD Card
Installation
For tightening hexagon socket head cap bolts, refer to “
2.4
Tightening Hexagon
Socket Head Cap Bolts
”.
(1)
Insert the SD card and inset to the SD card slot near the optional slot.
(2)
Mount the optional slot cover by screws.
Sems bolt: 2-M3×6

NOTE

NOTE
