8.1 Replacing Cable Unit
Name
Quantity
NOTE
Maintenance
part
Cable Unit 1
T3-B: 2207936
T6-B: 2207939
Tools
Hexagonal
wrench
Width across flats: 2 mm
1
For M3 button bolt
Width across flats: 2.5 mm 1
For M3 screw,
M4 button bolt
Width across flats: 3 mm
1
For M4 screw
Spanner
Width across flats: 5 mm
1
Hand I/O connector removal
Nut screwdriver
Width across flats: 5 mm
1
Spanner
Width across flats: 41 mm
1
Removal
Torque wrench
1
Cross-point screwdriver (No. 2)
1
For cross-recessed screw
Nippers
1
For cutting wire tie
Material
Wire tie
-
adhesive
-
LOCTITE268
Cable Unit

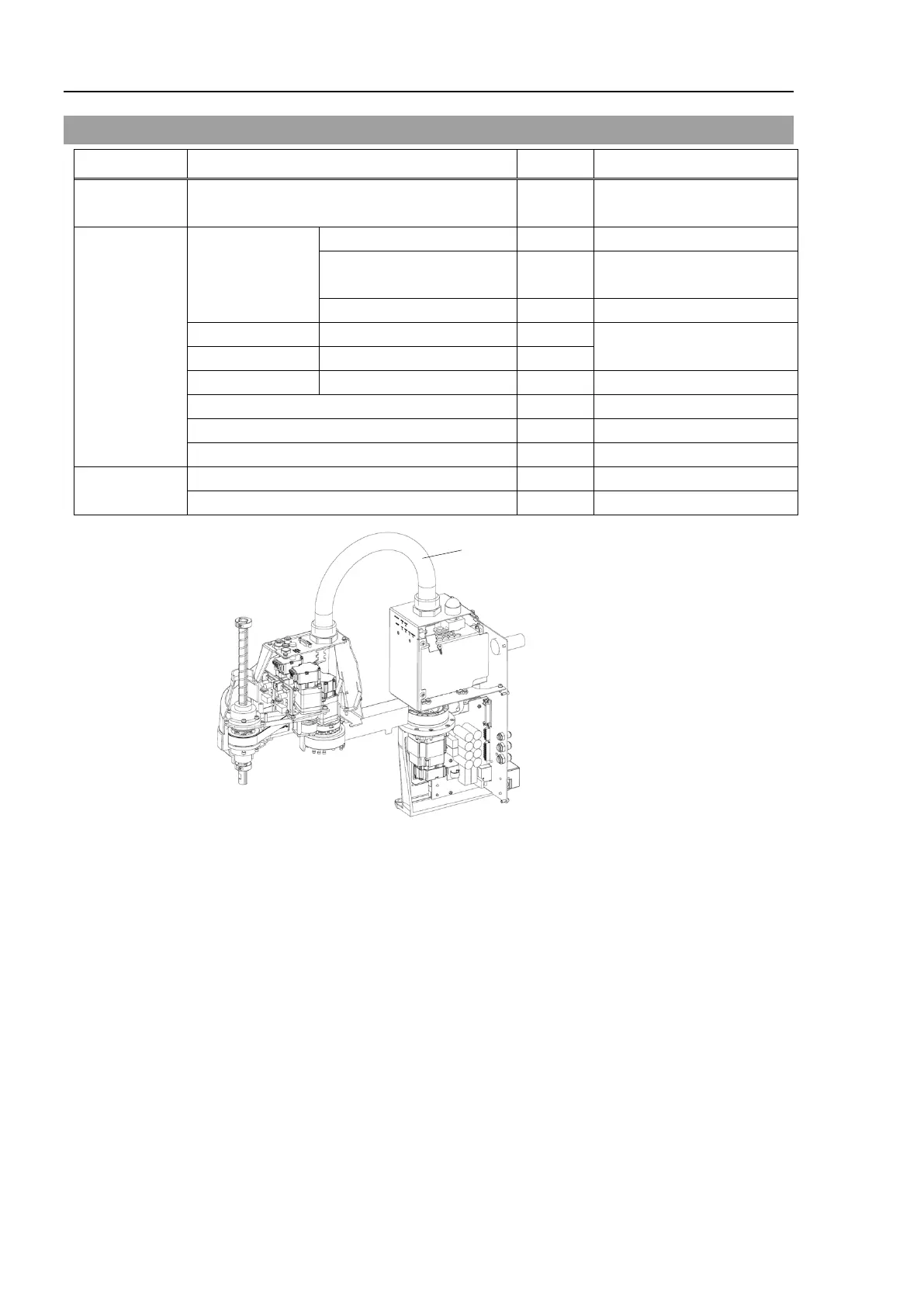

(Illustration: T3-B 401S)
