Epson T-B Series Maintenance Manual

T3-B T6-B Maintenance 7. Covers
T-B series Maintenance Manual Rev.1 39

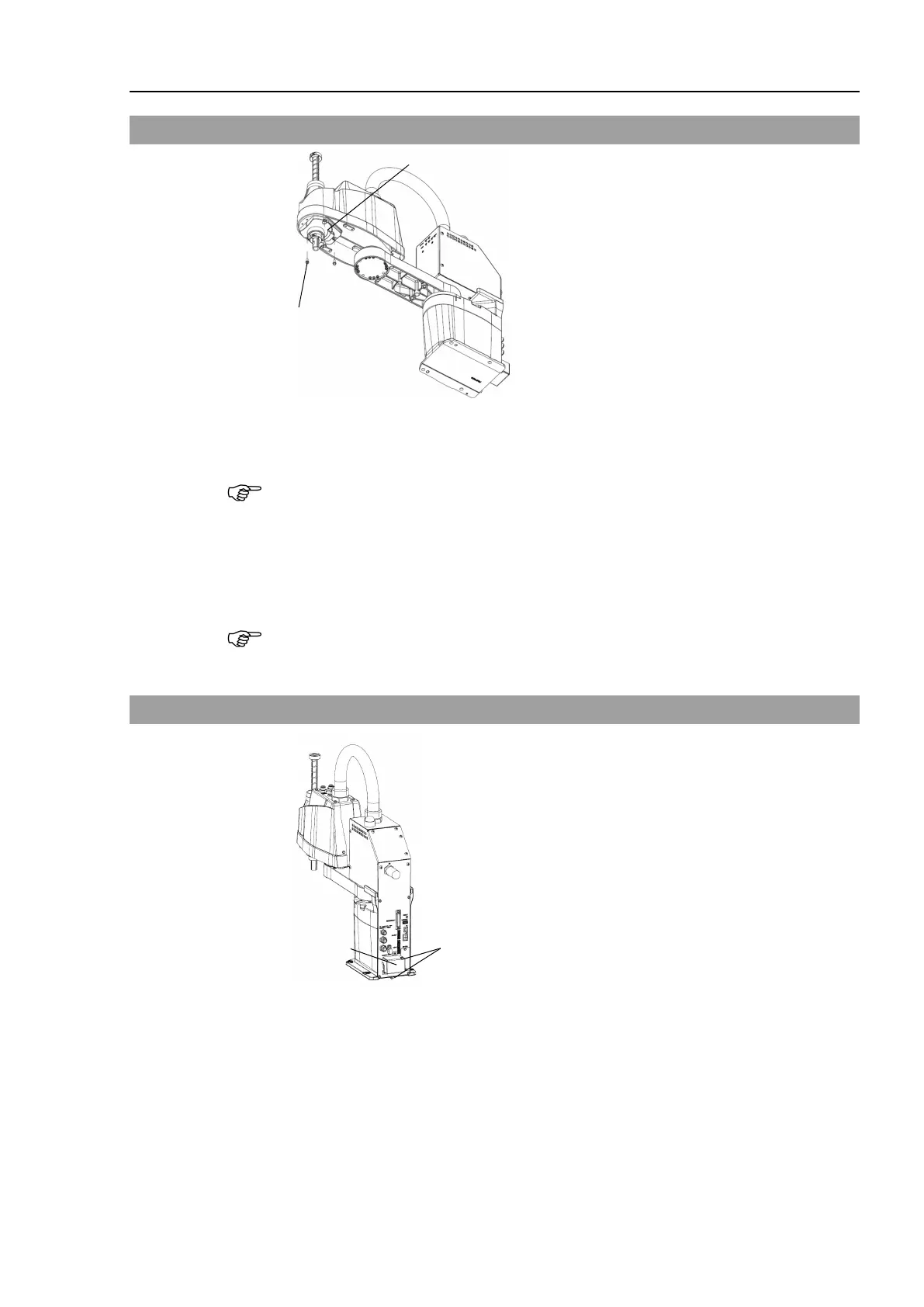

7.2 Arm Bottom Cover
T3
-B: 3-M4×12 Sems
T6
-B: 4-M4×12
Arm Top Cover
Unscrew the arm bottom cover mounting bolts and then remove the cover.
Be careful of the end effector. When the end effector is installed, the arm bottom cover
may not be removed from the shaft.
When you replace the ball screw spline unit, you need to remove the end effector to
remove the arm bottom cover completely.
When you can work (maintenance, inspection) without removing the cover completely,
move the shaft to the lower limit and lower the arm bottom cover.
For tightening hexagon socket head cap bolts, refer to “2.4 Tightening Hexagon Socket
Head Cap Bolts”.
7.3 Power Cable Cover
2-M4×8
Sems
Power Cable
Cover
Unscrew the power cable cover mounting bolts and then remove the power cable cover.

NOTE

NOTE
