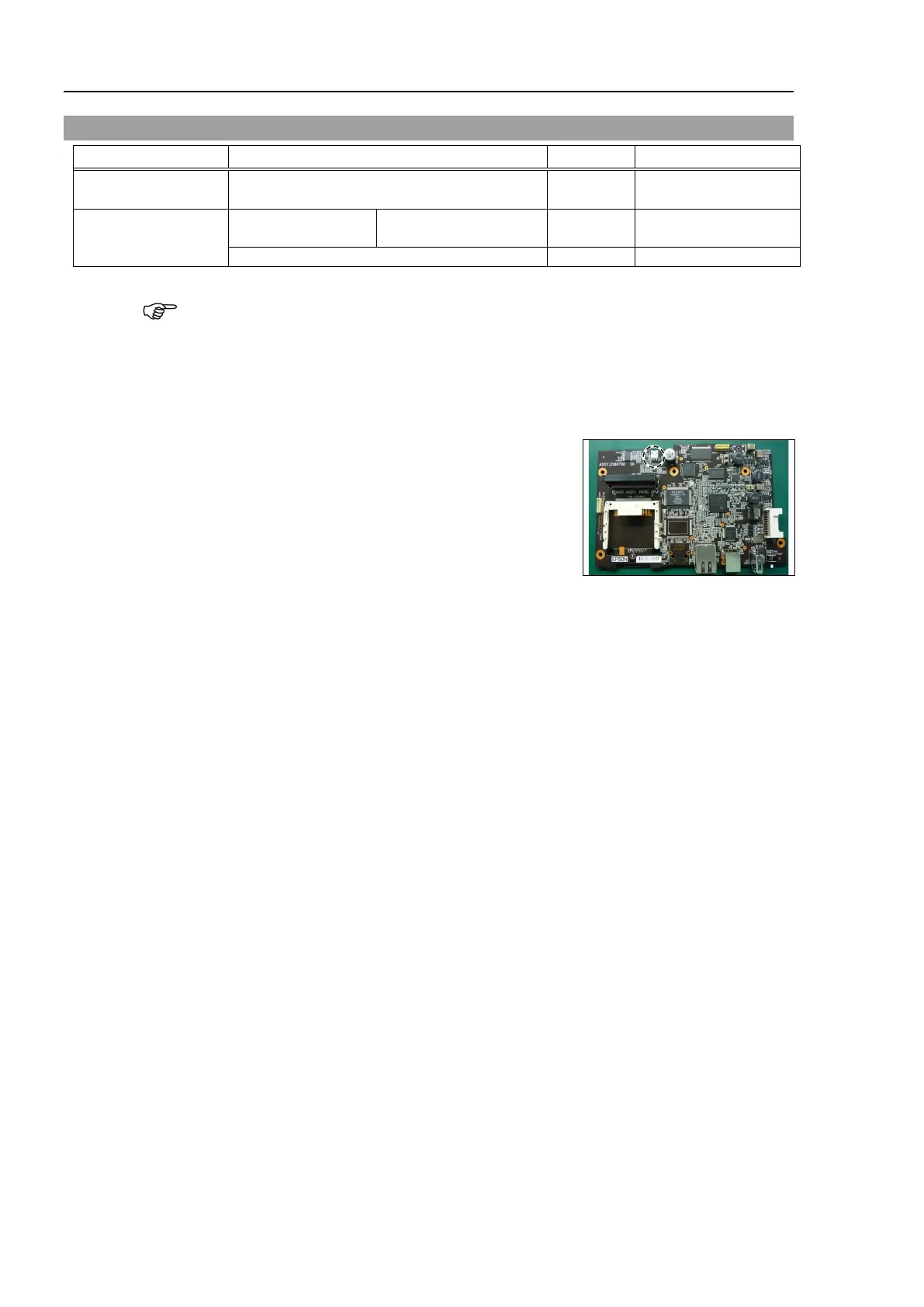

T3-B T6-B Maintenance 14. Lithium Battery, SD Card, Boards, and Filter
120 T-B series Maintenance Manual Rev.1
14.2 Replacing the Lithium Battery
Name
Quantity
NOTE
Maintenance
part
Lithium Battery 1 2113554
Tools
Hexagonal
wrench
width across flats: 2
mm
1 For M3 button bolt
Cross-point screwdriver
1
Replace the battery within 30 minutes after turning OFF.
If more than 30 minutes pass after removing the battery, voltage of the capacitor lower and
time may be reset.
Battery unit
(lithium battery)
Replacement
(1)
Remove CPU/DPB board from a base.
Reference: “14.1 Replacing the CPU/DPB Boards”
(2)
Remove the battery connector and
connect the new
one.
(3)
Mount CPU/DPB board to base.
Reference: “14.1 Replacing the CPU/DPB Boards”

