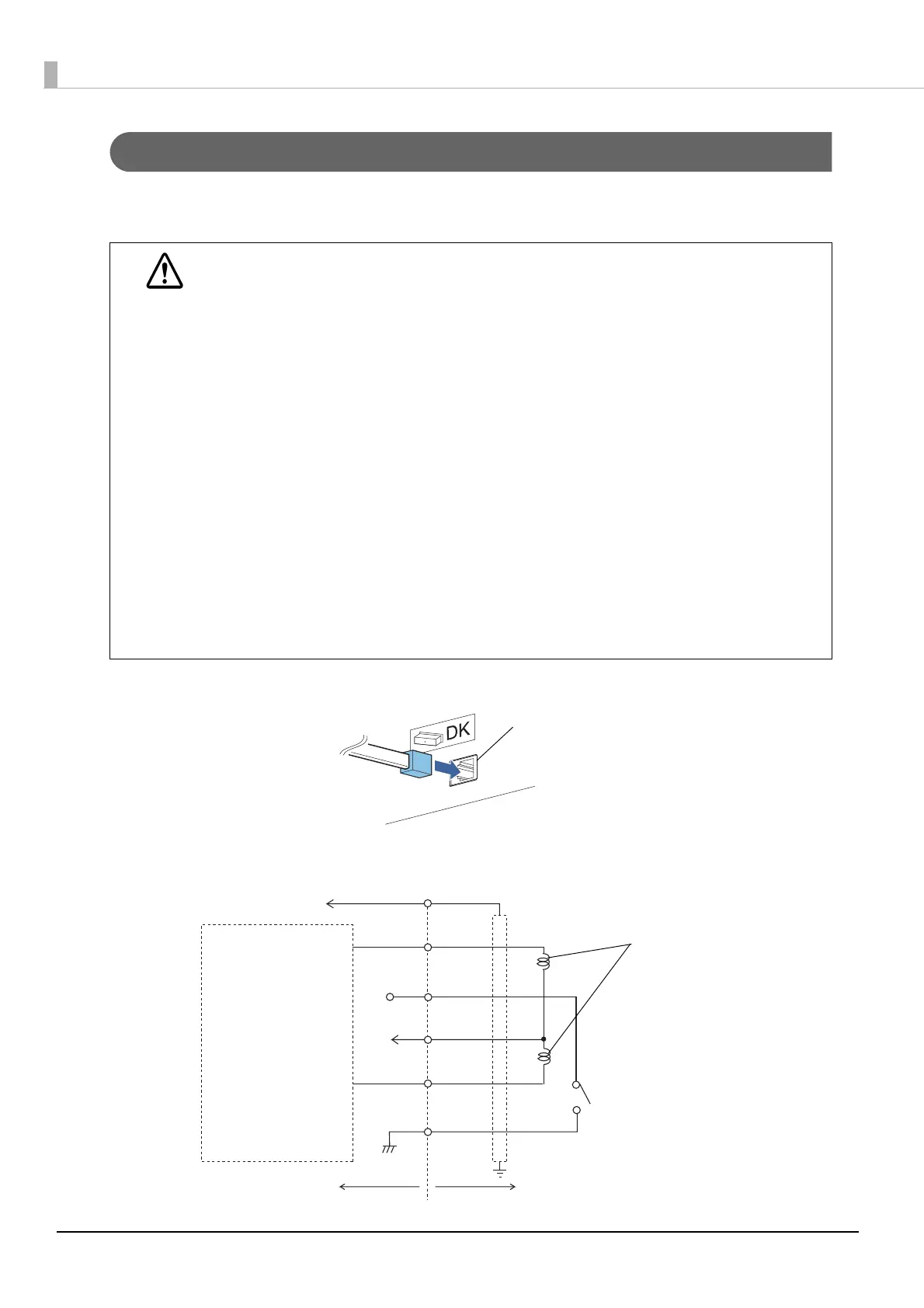

Connecting the Cash Drawer
Using the optional product for TM printer is recommended.
If the optional external buzzer is used, you cannot use a cash drawer.
Connect the connector of the drawer kick cable to the product.
Drawer Connection Circuitry
WARNING
Specifications of drawers differ depending on makers or models. When you use a
drawer other than specified, make sure its specification meets the following
conditions.
Otherwise, devices may be damaged.
The load, such as a drawer kick solenoid, must be connected between pins 4 and 2 or pins
4 and 5 of the drawer kick connector.
When the drawer open/close signal is used, a switch must be provided between drawer
kick connector pins 3 and 6.
The resistance of the load, such as a drawer kick solenoid, must be 24
or more or the
input current must be 1A or less.
Be sure to use the 24V power output on drawer kick connector pin 4 for driving the equip-
ment.
Use a shielded cable for the drawer connector cable.
Two driver transistors cannot be energized simultaneously.
Leave intervals longer than 4 times the drawer driving pulse when sending it
continuously.
Be sure to use the product power supply (connector pin 4) for the drawer power
source.
Do not insert a telephone line into the drawer kick connector.
Doing so may damage the telephone line or product.
F.G
+24V
With shielded
Drawer kick connector
Printer side
User side [Drawer kick side]
Drawer open/close switch
Drawer kick solenoid
Control device
1
2
3
4
5
6
