Epson TP1 - Wall Bracket (Option)

Functions & Installation 3. Installation
16 TP1 Rev.5
3.6 Wall Bracket (Option)

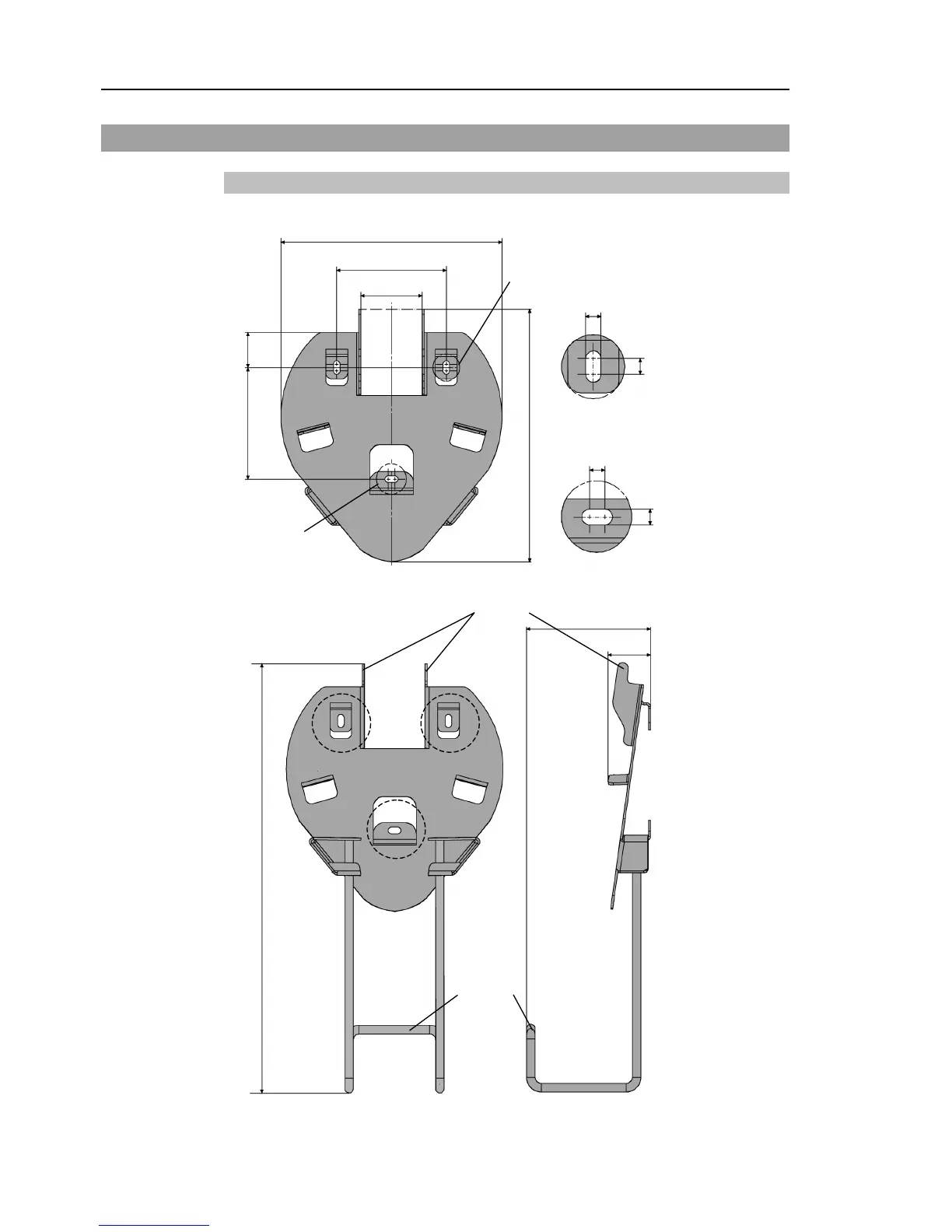

Outer Dimension
Hook A
Hook B
201.4
31.4
100
118
56.2
100
226
6
6
6
6
39.6
392.9
Detail : J
K
J
Detail : K
Front View
Back View Side View
[Unit :mm]
