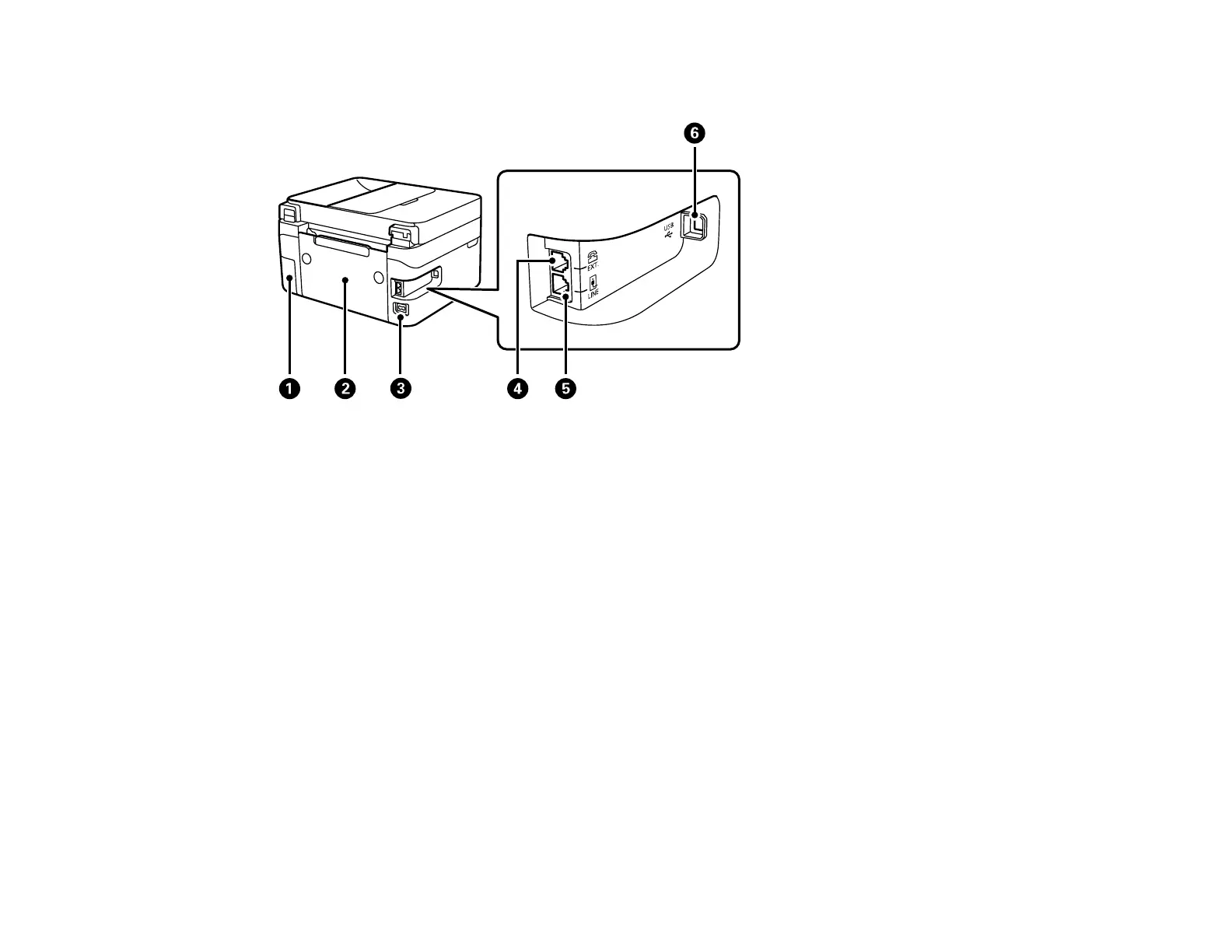

Product Parts - Back
1 Maintenance box cover
2 Rear cover
3 AC inlet
4 EXT port
5 LINE port
6 USB port
Parent topic: Product Parts Locations
Using the Control Panel
See these sections to learn about the control panel and select control panel settings.
Control Panel Buttons and Lights
Adjusting the Control Panel Position
Navigating the LCD Screen
Status Icon Information
Entering Characters on the LCD Screen
