1.3 Display
SAW
PROCESS SAW
REGULATION TYPE CW
WIRE TYPE Fe SOLID
WIRE DIMENSION 0.8 mm
CONFIGURATION"
TOOLS"
SET MEASURE MEMORY
FAST
MODE
Cursor
The control panel’s cursor is presented as a black field around the text, with the
selected text turning white. The cursor is displayed in the instruction manual with
bold text.
Text boxes
At the bottom of the display are five boxes containing text that describes the current
function of the five soft keys below the display.

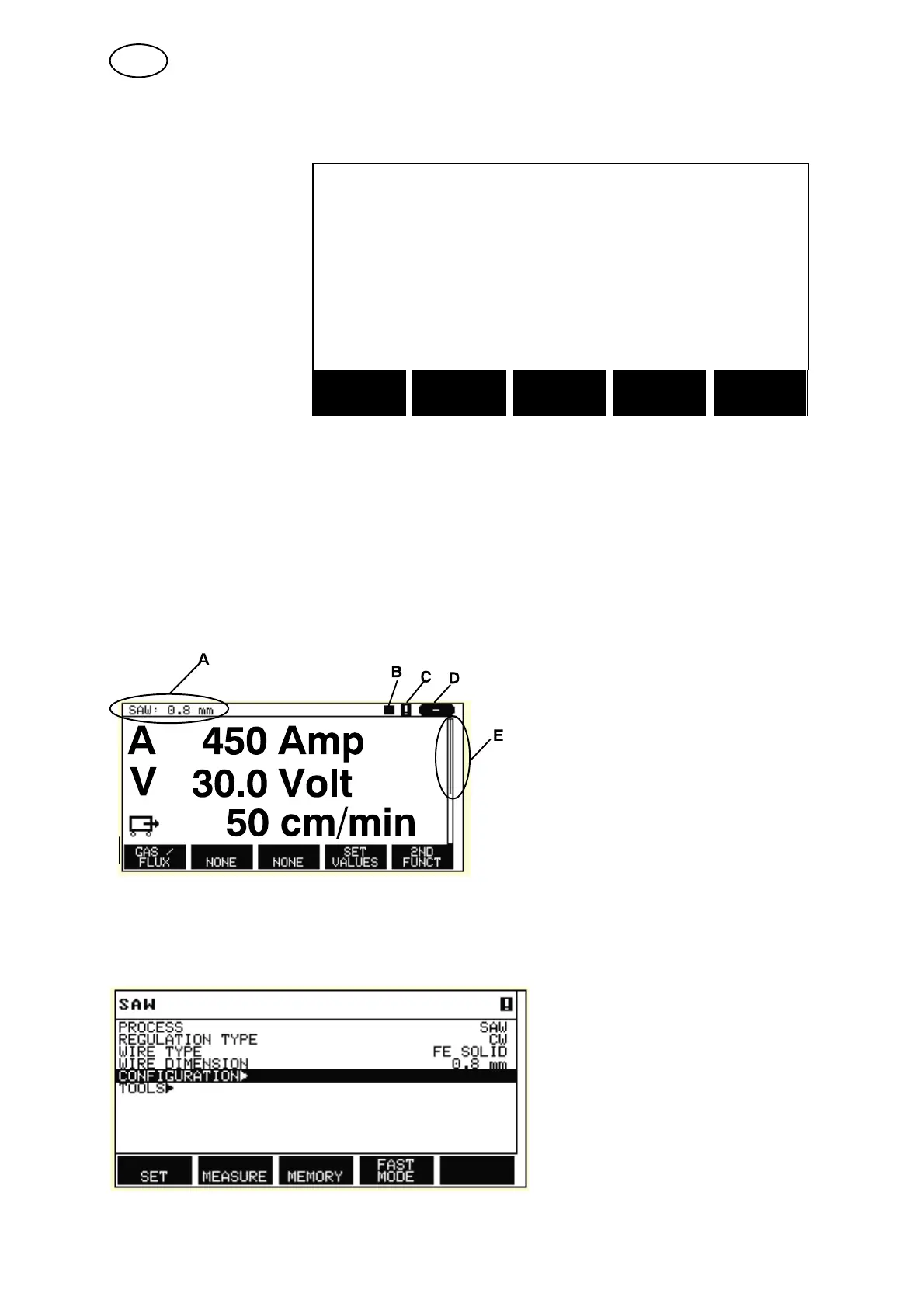

1.3.1 Symbols in the display
A The selected weld data set
B Welding direction
C A fault has occurred. See chapter
15
D Recalled memory position number
E Scroll bar. Further information can
be found in this menu
Arrows
Where there is more information behind a row, this is indicated with a black arrow "
behind the text.
