5 GOUGING
Main menu  Process
With arc air gouging, a special electrode comprising a carbon rod with a copper
casing is used.
An arc is formed between the carbon rod and the work piece, which melts the
material. Air is supplied so that the melted material is blown away.

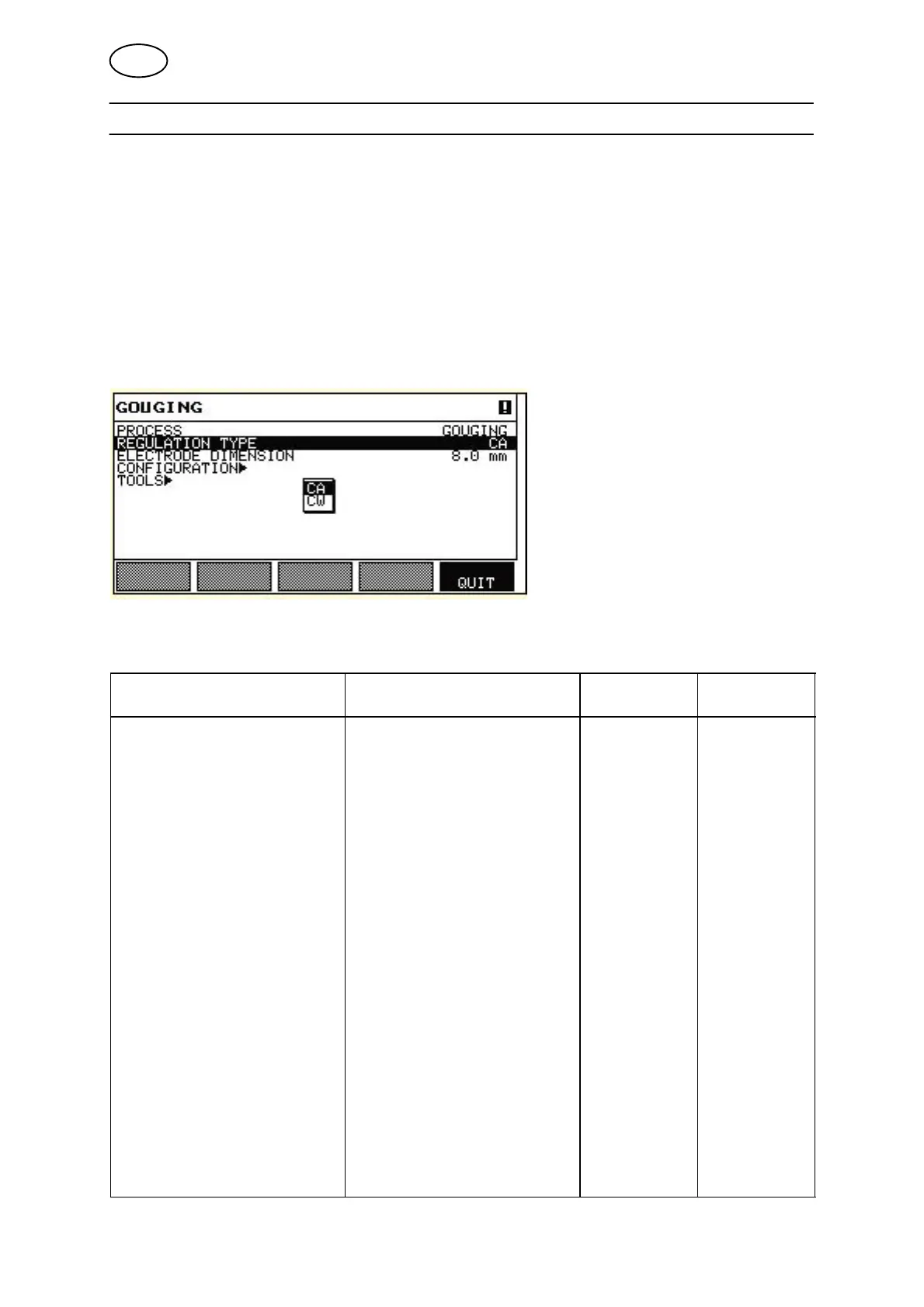

When the GOUGING process is selected, you can choose between two control
methods by marking REGULATION TYPE using the positioning knob and pressing
ENTER. Choose between constant welding current CA or constant wire feed CW,
see explanation in chapter 6.1 and 6.2.
5.1 Settings for gouging with CA
Settings Setting range In steps of Value after
resetting
Arc voltage* 14 − 50 V 0.1 V (1V) 30 V
Welding current* 0 − 3200 A 1 A 400 A
Travel speed* 0 − 200 cm/min 1 cm/min 40 cm/min
Welding direction Y − J − J
Start data
Air pre−flow 0 − 99.0 s 0.1 s 0 s
Start type Direct or Scrape − Direct
Wire creep start Auto or Set speed − Auto
Wire creep start speed 0 − 1000 cm/min 1 cm/min 20 cm/min
Start phases OFF or ON − OFF
Open−circuit voltage OFF or ON − OFF
Maximum open−circuit voltage 5 − 60 V 0.1 V 50 V
Stop data
Air post−flow 0 − 99.0 s 0.1 s 0 s
Crater filling OFF or ON − OFF
Crater filling time 0 − 10 s 0.01 s 1 s
Burnback time 0 − 10 s 0.01 s 1 s
Stop phases OFF or ON − OFF
Dynamic regulation OFF or ON − ON
