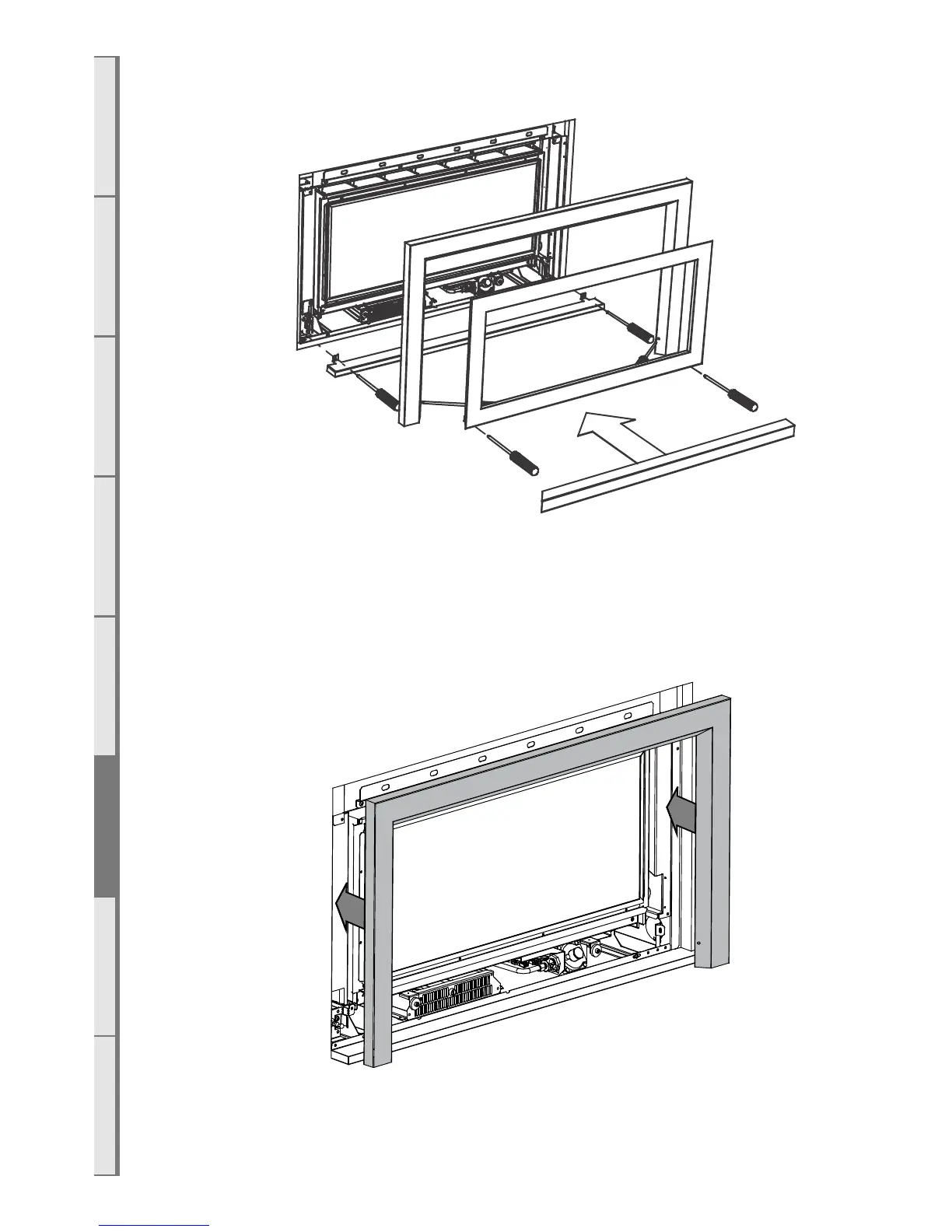

Step 4: Attach the lower foot to the fascia by screwing it in the positions shown below.
S
TEP 4
STEP 5 + 6
STEP 7 + 8
STEP 9
Step 5: Hang the Outer Fascia from the magnet bracket attached to the top of the firebox.
Insert the fascia so that it is parallel with the front of the gas fireplace. The Hex-nuts attaching
the magnets to the fascia will locate in the holes on the magnet bracket, securing the Outer
Fascia in the correct position. If this fascia does not fit, check to make sure the magnet bracket
installed above is in the correct orientation.
Step 6: Fit the two screws at the base of each side of this fascia. The heater may have to be
adjusted in or out of the cavity to ensure fascia fits correctly.
