41

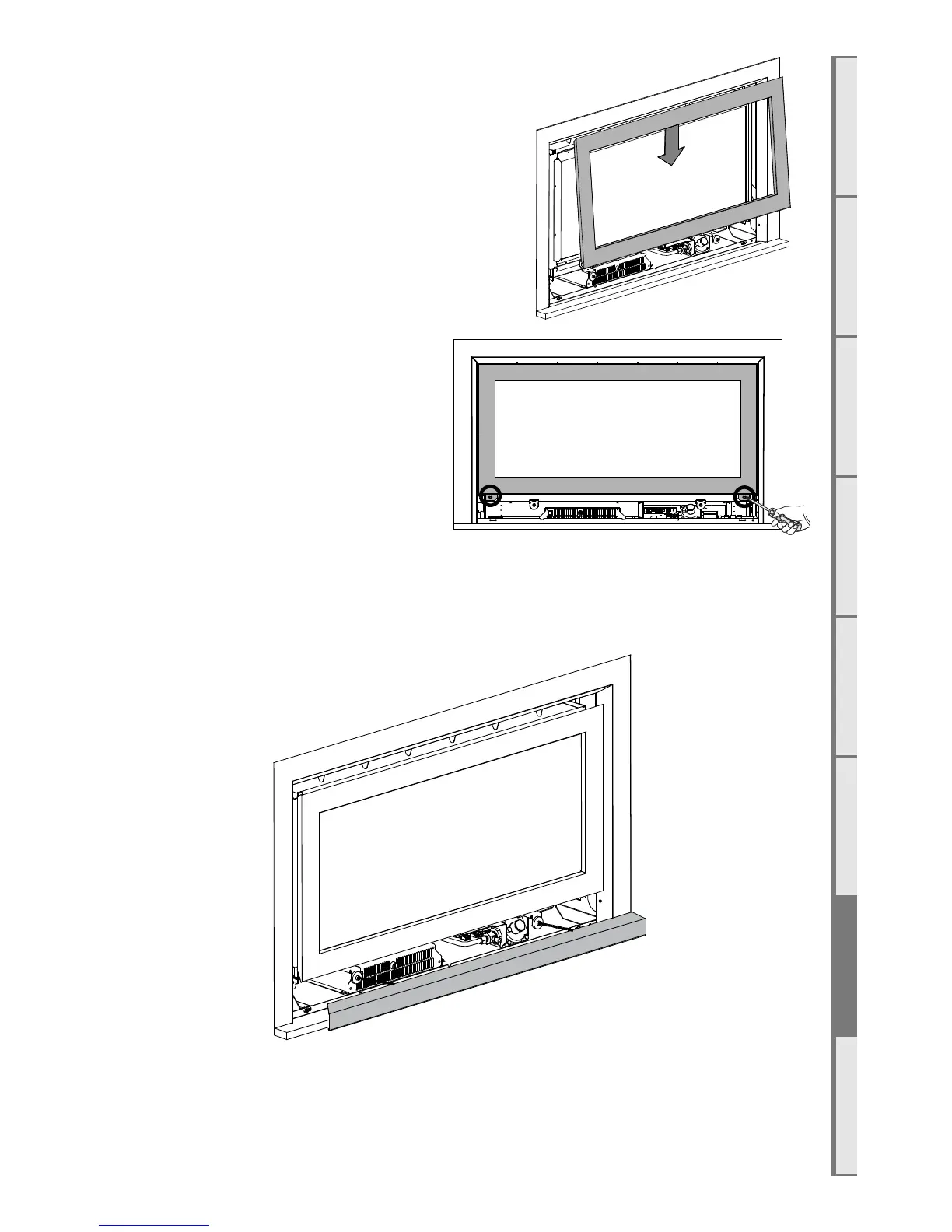

Step 7: Attach the inner fascia brackets to the Inner
Fascia as per the instruction page supplied with the
fascia. Hang the top edge of the Inner Fascia from
the lip that extends at 45 degrees from the top of the
firebox. This fascia is attached to the fire at its base by
two screws. Leave the screws loose enough to be able
to adjust the Inner Fascia.
Step 8: Check that the Inner Fascia
is centred. If this panel is not centred,
adjust the Inner Fascia side to side
until the spaces on either side are even.
Tighten the screws to fix the Inner Fascia
in place.
Step 9: Push the supplied magnet brackets into position. Place the bottom fascia trim onto the
magnets. If this panel does not fit, adjust the outer fascia side to side or the appliance in/out
until the trim fits well.
