4 Getting Started
The “Getting Started” chapter includes application examples and notes on the
wiring of the ES511.1.
4.1 Applications
4.1.1 ES511.1 with XETK, ES590 and ES400 Modules
For applications, the ES511.1 has direct access to XETK ECUs and to ECUs and
vehicle buses via the interfaces of the connected measure modules.

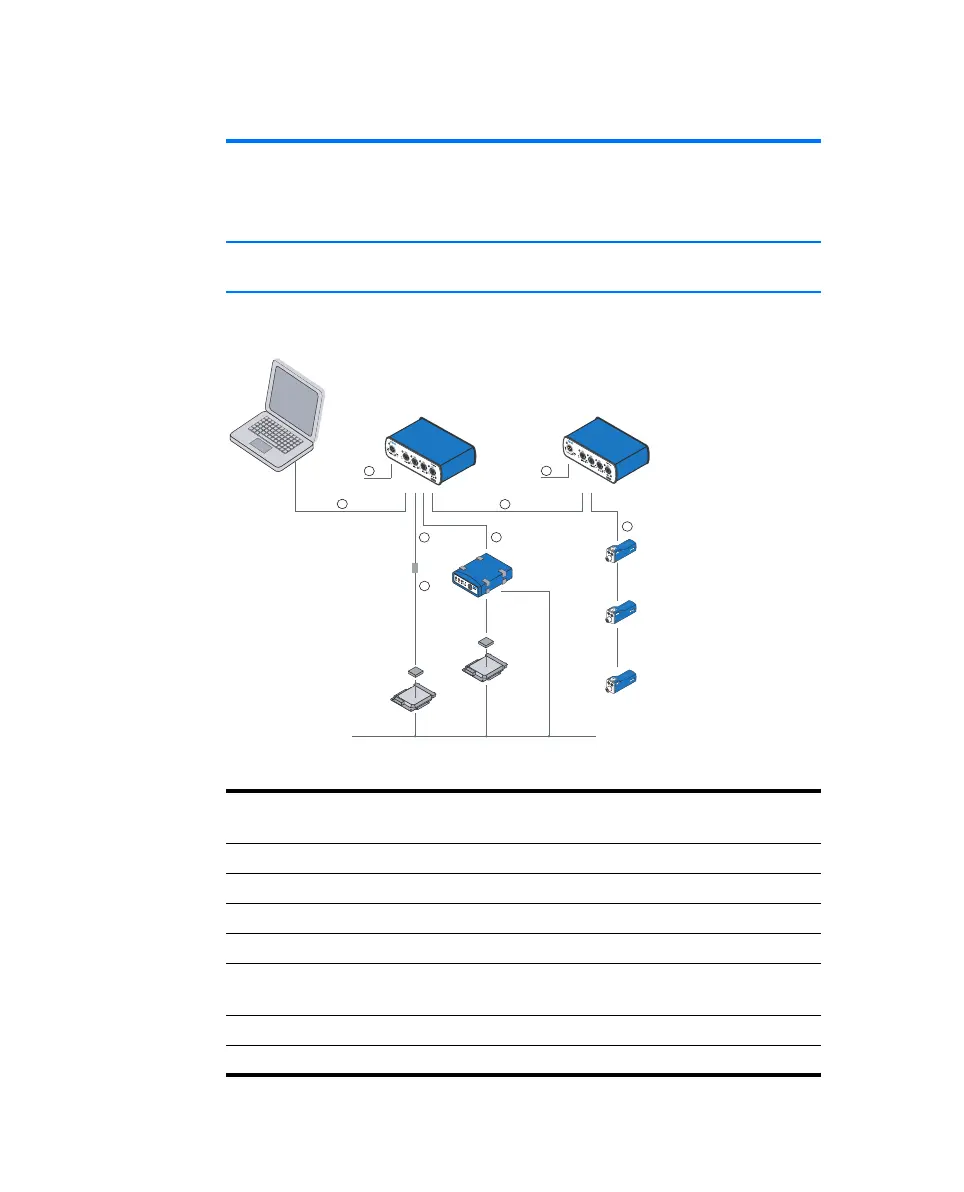

Fig. 4-1 ES511.1 with XETK, ES590 and ES400 Modules
Cable in
Fig. 4-1
Function Short
Name
1 Power supply cable CBP510-2
2 PC connecting cable CBE500-3
3 Ethernet connecting cable CBE530-x
4 PC connecting cable CBE200-x
5 ECU Adapter cable CBAM230 /
CBAM240
6 PC connecting cable CBE100-x
7 PC connecting and power supply cable ES4xx CBEP410-x
3
1
6-32V DC
4
1
6-32V DC
2
7
6
ES590/
ES591
ES510ES510
ES400
XCP
on
Ethernet
Ethernet
Application
Ethernet
CAN
XETK
ETK
ECU
ECU
XCP
on
Ethernet
ETK
Interface
CAN
Interface
5
