5.4 Pin Assignment
5.4.1 Interface „6-32V“

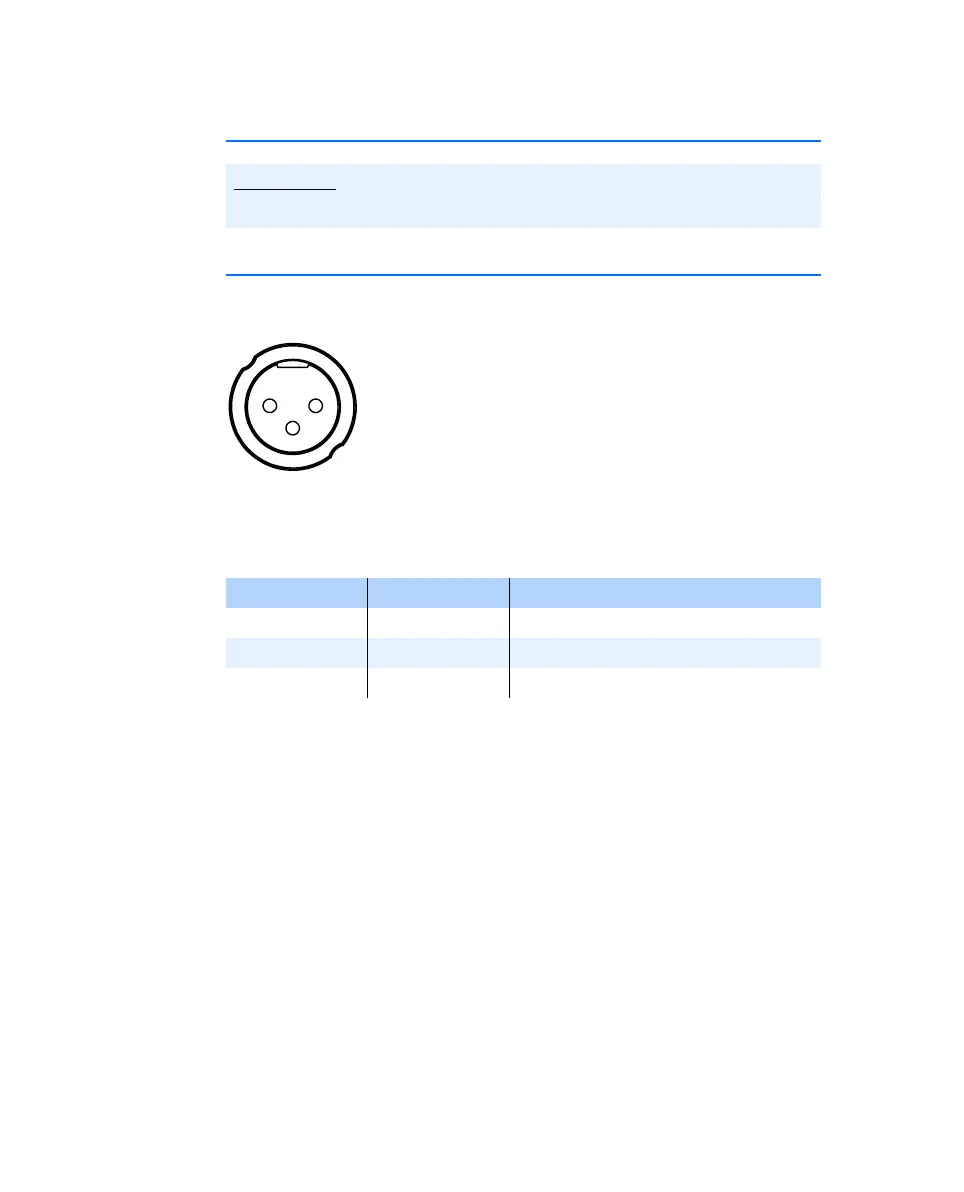

Fig. 5-1 Interface „6-32V“
Note
All connectors are shown with a view of the interfaces of the ES510.1.
Pin Signal Meaning
1- Reserved
2 UBATT+ Supply voltage, plus
3 Ground Ground
