Getting Started30
4.1.2 ES510.1 with ES511 and ES512 Measure Modules
The ES510.1 has access to ECUs and vehicle buses for applications via the con-
nected measure modules.

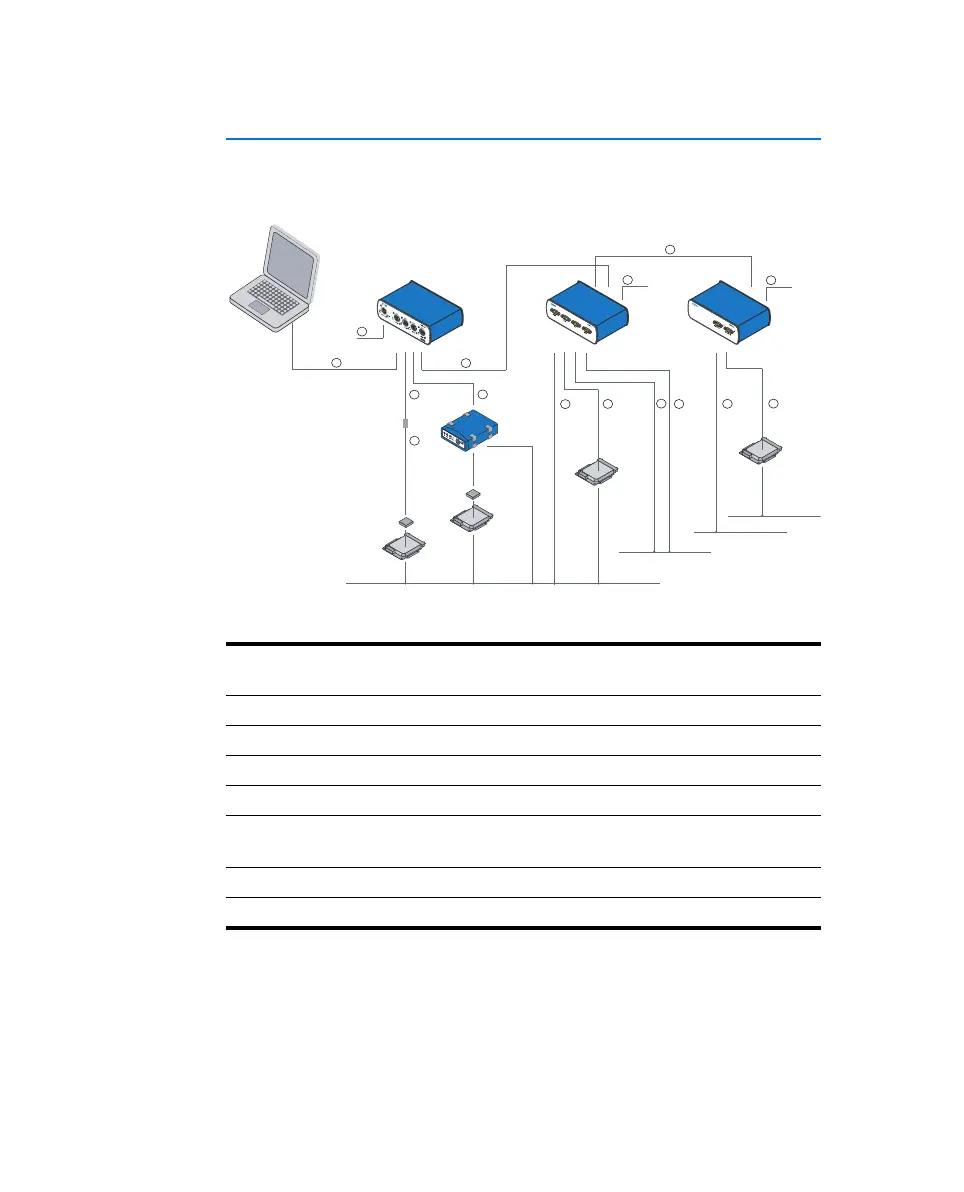

Fig. 4-2 ES510.1 with ES511 and ES512 Measure Modules
Cable in
Fig. 4-2
Function Short
Name
1 Power supply cable CBP510-2
2 PC connecting cable CBE500-3
3 Ethernet connecting cable CBE530-x
4 PC connecting cable CBE200-x
5 ECU Adapter cable CBAM230 /
CBAM240
6 PC connecting cable CBE100-x
7 PC connecting and power supply cable ES4xx CBEP410-x
3
1
6-32V DC
4
2
6
ES590/
ES591
ES511ES510
Ethernet
Application
Ethernet
CAN
XETK
ETK
ECU
ECU
XCP
on
Ethernet
ETK
Interface
CAN
Interface
5
1
6-32V DC
ES512
3
1
6-32V DC
Ethernet
ECU
ECU
CAN
Interface
7
7
CAN
Interface
LIN
Interface
LIN
Interface
FlexRay
Interface
FlexRay
Interface
LIN
FlexRay
Channel A
Channel B
7
7
7
7
