2.3 Housing
Housing with ports on the front and rear of the device is used for the ES511.1.
The sturdy metal housing has nonskid plastic feet and is intended for use in the
lab, on the test bench and in the passenger cell of vehicles.
2.4 Serial Number
The module’s serial number can be found on the front panel of the device.
2.5 Ports
2.5.1 Front Panel
The ES511.1 has an Ethernet port (upstream) to the host PC or to superordi-
nate ES51x modules, three Ethernet ports (downstream) for further ES510.1
and/or measurement and interface modules and a power supply port. RJ-45-
compatible Neutrik ports are used at the Ethernet ports.
The following ports are on the front of the ES511.1:
• 6-32V (operating voltage)
• HOST (Ethernet, SYNC-IN)
• ETH1 (Ethernet, SYNC-OUT)
• ETH2 (Ethernet, SYNC-OUT)
• ETH3 (Ethernet, SYNC-OUT)

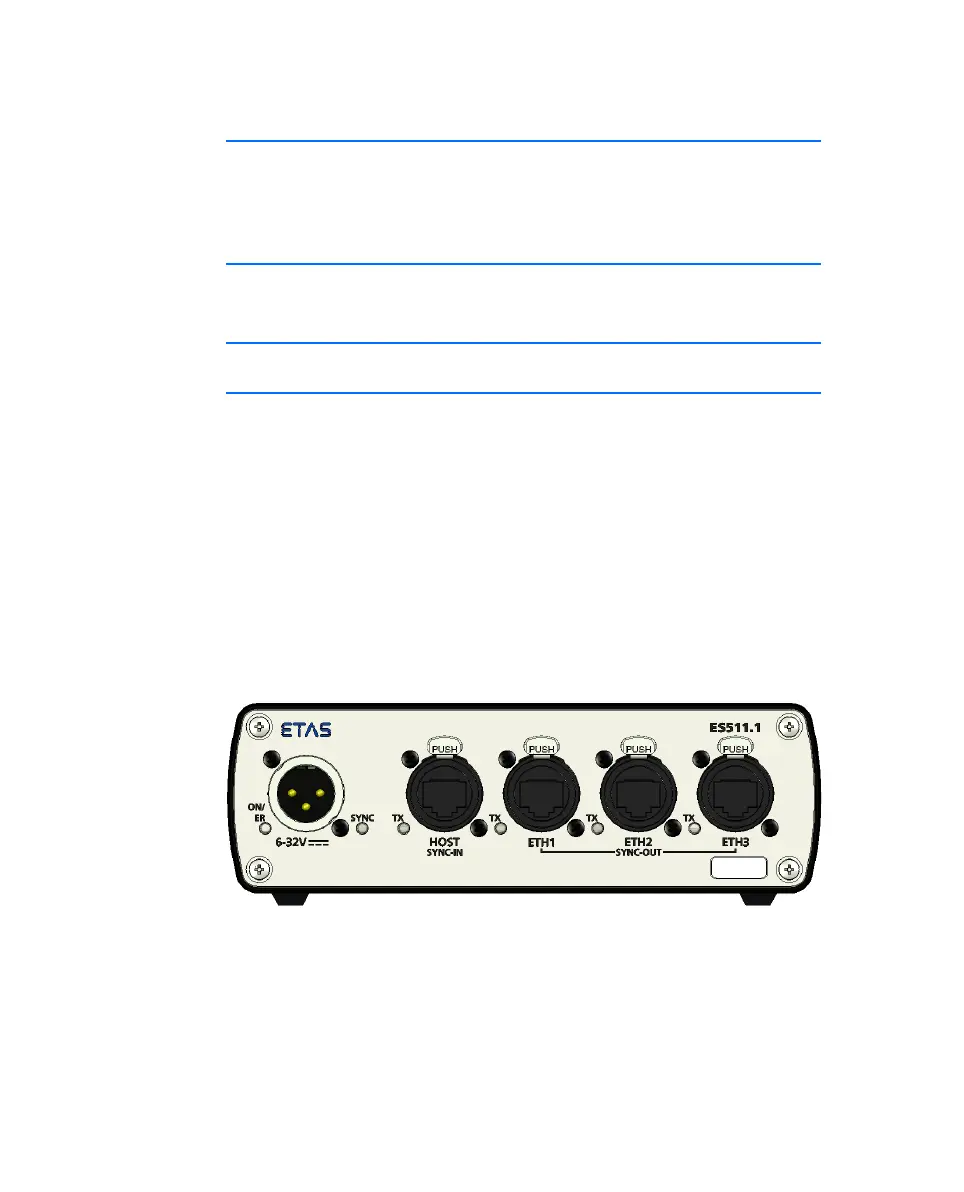

Fig. 2-2 Ports and LEDs
