EQT Router User Manual
Page 8 Revision 1.9.1
1
2
9
10
11
12
13
3
4
5
7
6
14
15
16
8
2
9
10
11
12
13
3
4 7
6
14
15 16
8
REF
Q-LINK
5
1
ETH ERNET
10/100LN/A CT
SERIAL
REF
LOCK
Q-LINK
ERROR
PWR1
GEN ERROR
PROC OK
PWR 2
ALARM
POWER SUPPL
Y
INPUTS
OUTPUTS
POW
ER S
UPP
LY
CAUTION
TO REDUCE RISK OF ELECTRIC SHOCK, GROUNDING CENTER
OF POWER SUPPLY CORD MUST BE MAINTAINED
CAUTION
TH IS EQU IPMEN T HA S MO RE THEN O NE POW ER SUPPLY . TO REDUCE T HE RIS K OF
ELECT RIC SH OCK DI SCON NECT BO TH PO WER SUP PLY CORD S BEFORE SERVI CING .

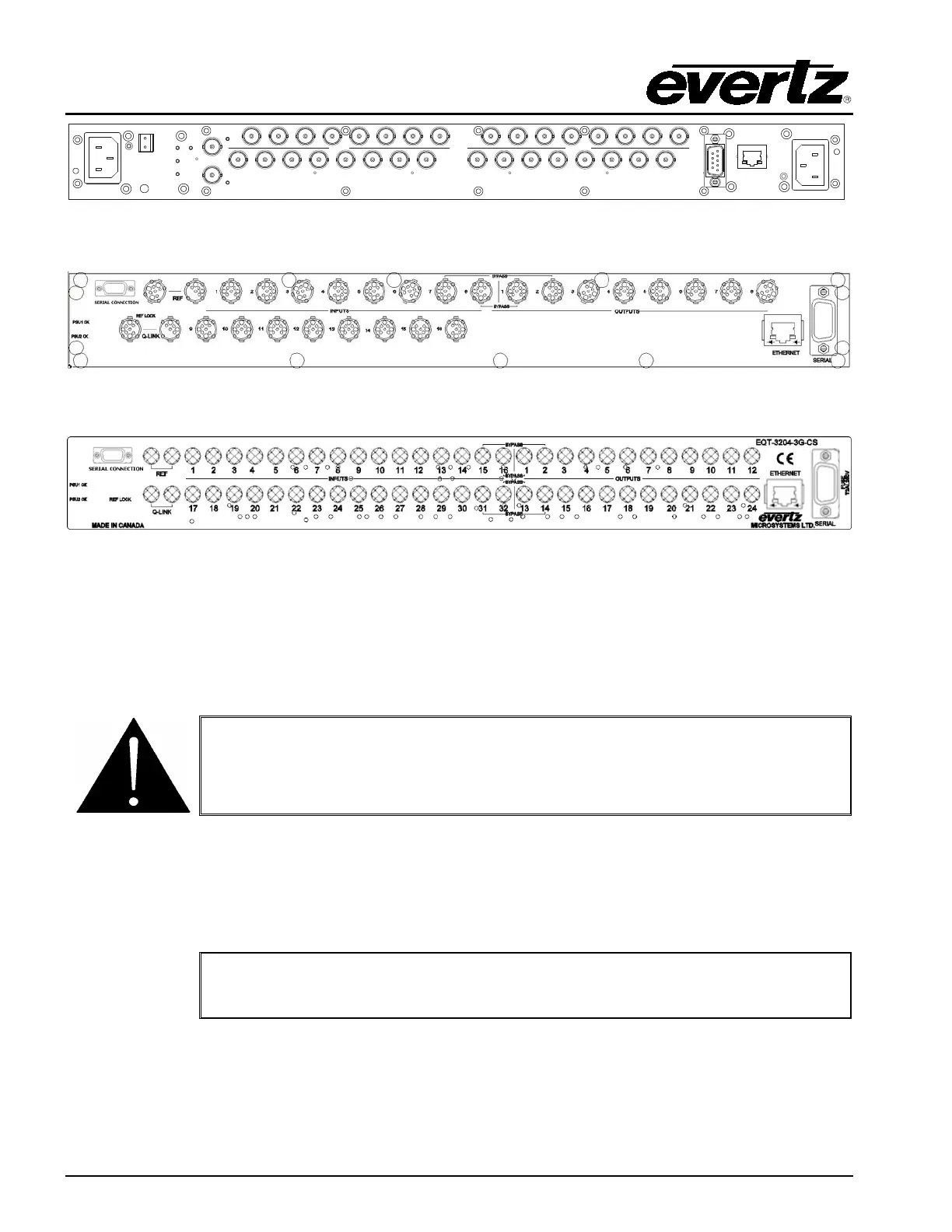

Figure 2-2: EQT Rear View (EQT-1616 and EQT-1604)
Figure 2-3: EQT Rear View (EQT-1602-CS (Newer Rear Plate))
Figure 2-4: EQT Rear View (EQT-3204-CS and EQT-3224 (Newer Rear Plate))
2.3.1. Video Inputs and Outputs
These connections are made using standard 75Ω video BNC connectors. A high quality coax cable
such as PSF1/2 (TF3255) for analog video, PSF1/3 (TF3304) for SDI video, Belden 8281 or 1694 for
SDI-HD video or suitable equivalents should be used for optimum performance.
It is both important and good practice that cables are properly supported and
not hanging on the connectors as this can put unnecessary str
connectors and possibly reduces their working life.
2.3.2. Video Reference
Standard Definition and High Definition Video routers have a separate looping Ref input that takes any
standard analog video signal with standard sync. In addition, High Definition routers will also accept a
tri-level sync.
Note: The Video Reference feature is only available on the coax version.
Video reference is not available on the –F fiber version.
2.3.3. Fiber Input and Output Connections (EQT-3232-3G-F ONLY)
These connections are made using standard LC fiber connector ends on single mode. There are 32
fiber inputs and 32 fiber outputs on the EQT rear panel. A high quality fiber cable such as Corning
SMF-28 or suitable equivalents should be used for optimum performance.
