6.1.3. Serial Interface
The serial port is an interface that is defined to provide external automation control of the EQT. The
interface is defined as a COM1 interface using the Quartz protocol. The format of the serial protocol is
also defined in this dialog using the options that are provided for Baud Rate, Parity, Data bits, Stop bits
and Standard (RS232 or RS422). A properly configured serial port is shown in Figure 6-8.

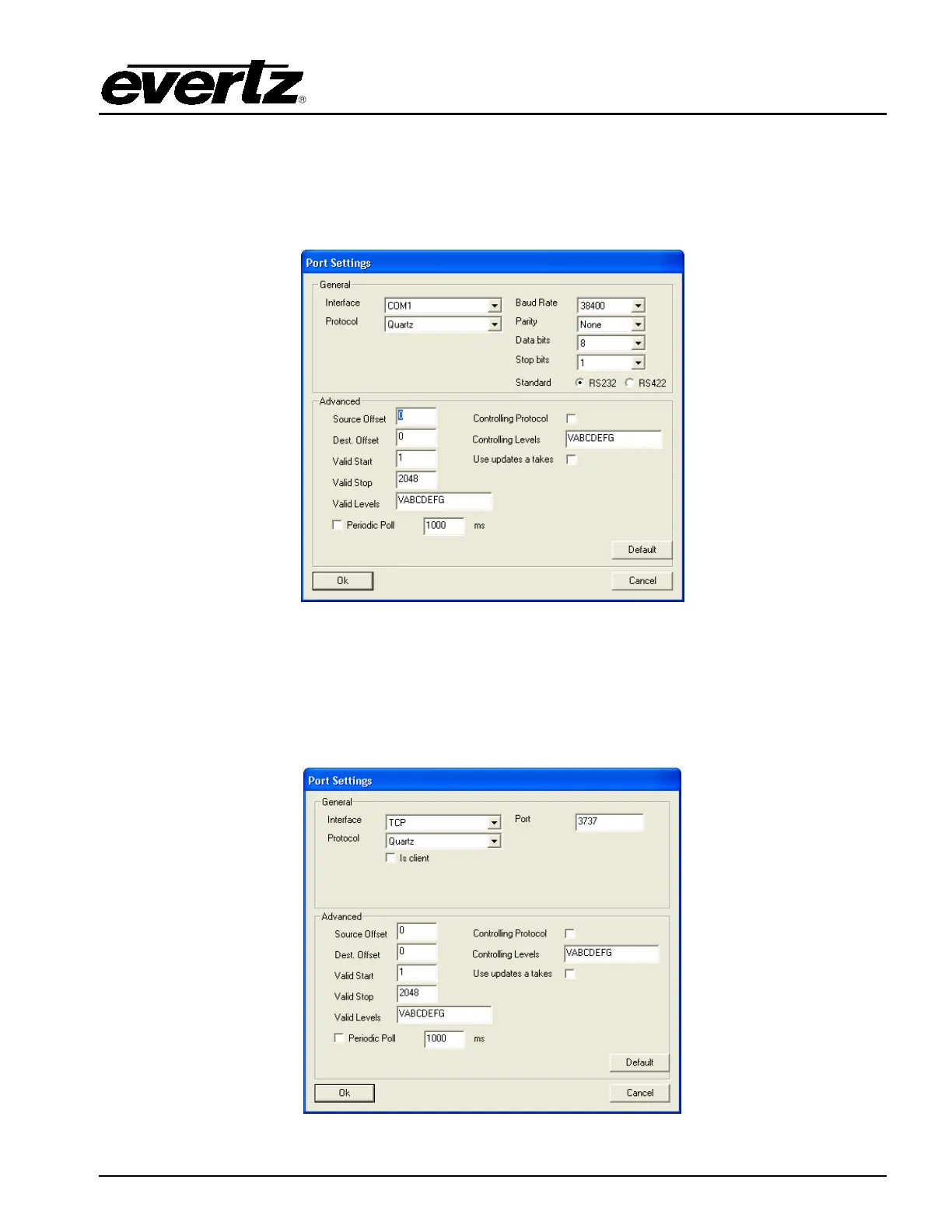

Figure 6-8: Serial Port Settings
6.1.4. Ethernet Interface
The Ethernet interface is defined to provide access to the EQT so that it can be controlled via Ethernet
using Quartz protocol. Up to four control ports can be added: 3737, 3738, 3739, and 3740. An example
of a properly configured Ethernet port for external control is shown in Figure 6-9.
Figure 6-9: Ethernet Port Settings
