5.5. CLEAN SWITCH OUTPUT CONTROL PARAMETERS (–CS VERSIONS ONLY)
The following shows the Clean Switch Output Control tab for the EQT. Table 9 provides further details
about each control.

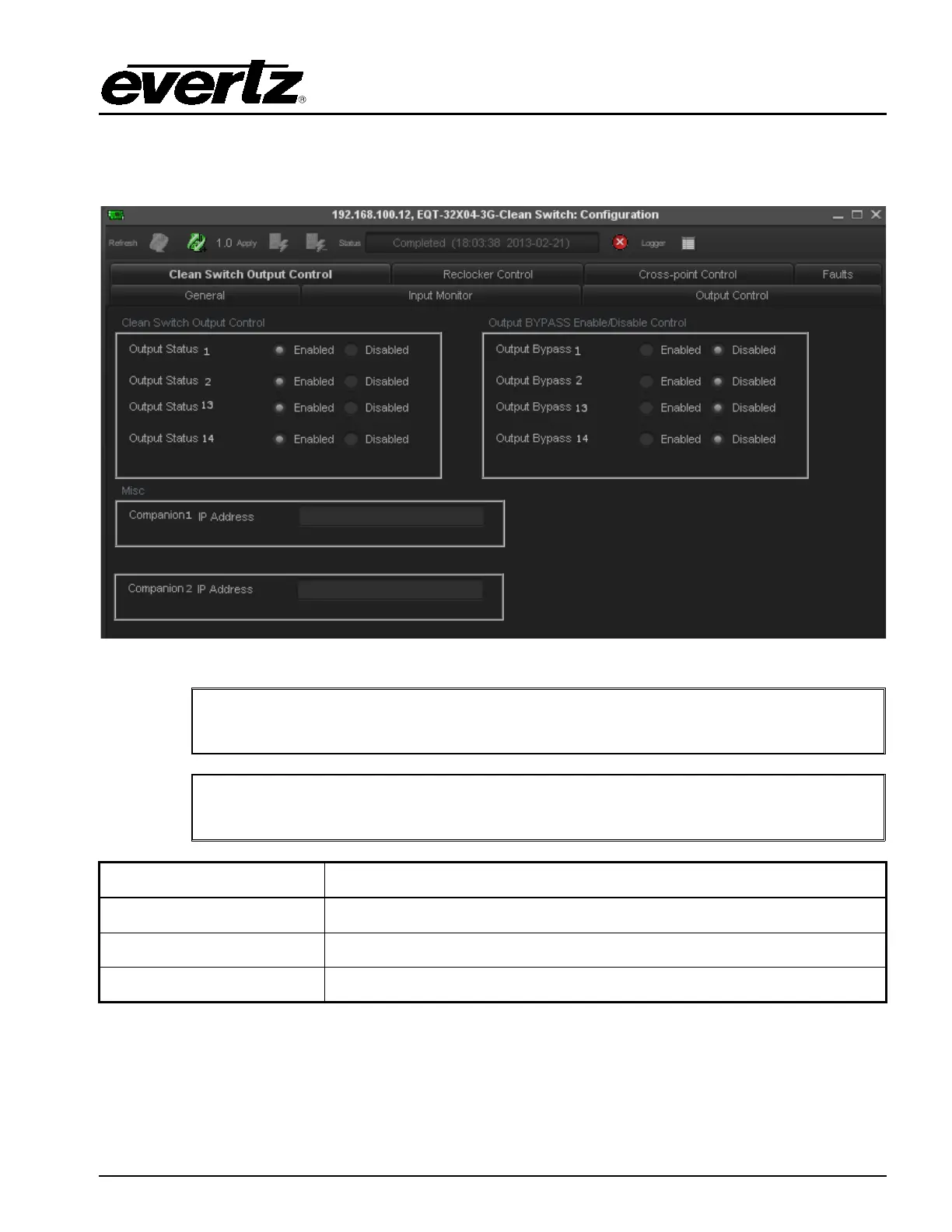

Figure 5-4: Clean Switch Output Control Tab

Note: ACO2 slot 1 is responsible for outputs 1 and 2 clean switch. ACO2 slot 2 is
responsible for outputs 13 and 14 clean switch (EQT-3204 Only)

Note: The companion IP address must be set in order to control the clean/quiet
switch functions in VistaLINK PRO. Details are in section 4.2.10
Parameter Description
Output Status Enables or disables the clean and quiet path on outputs 1, 2, 13 and 14.
Relay Status Enables or disables the relay to bypass outputs 1, 2, 13 and 14.
Companion IP Addresses Displays the Companion Address.
Table 9: Clean Switch Output Control Parameters
