EQT Router User Manual
Page 50 Revision 1.9.1
When generating a new system configuration some of the menus and functions are grayed out (not
available). This is deliberate to ‘lead the user through’ the functions that need to be set up. Carry out the
following functions to configure the system.
(1) Levels: Enter the level names for each of the signal levels you want to control. Do not tick the
“Complex” box at this stage.
(2) Frames: Enter the frames dialog and use the new button. Select the appropriate router from the
list available. The only change that needs to be made in the Edit Frame dialog is the Q-Link
address. This address must be unique among all devices in the system and it must match the
one that has been set on the router from section 4.2.9.

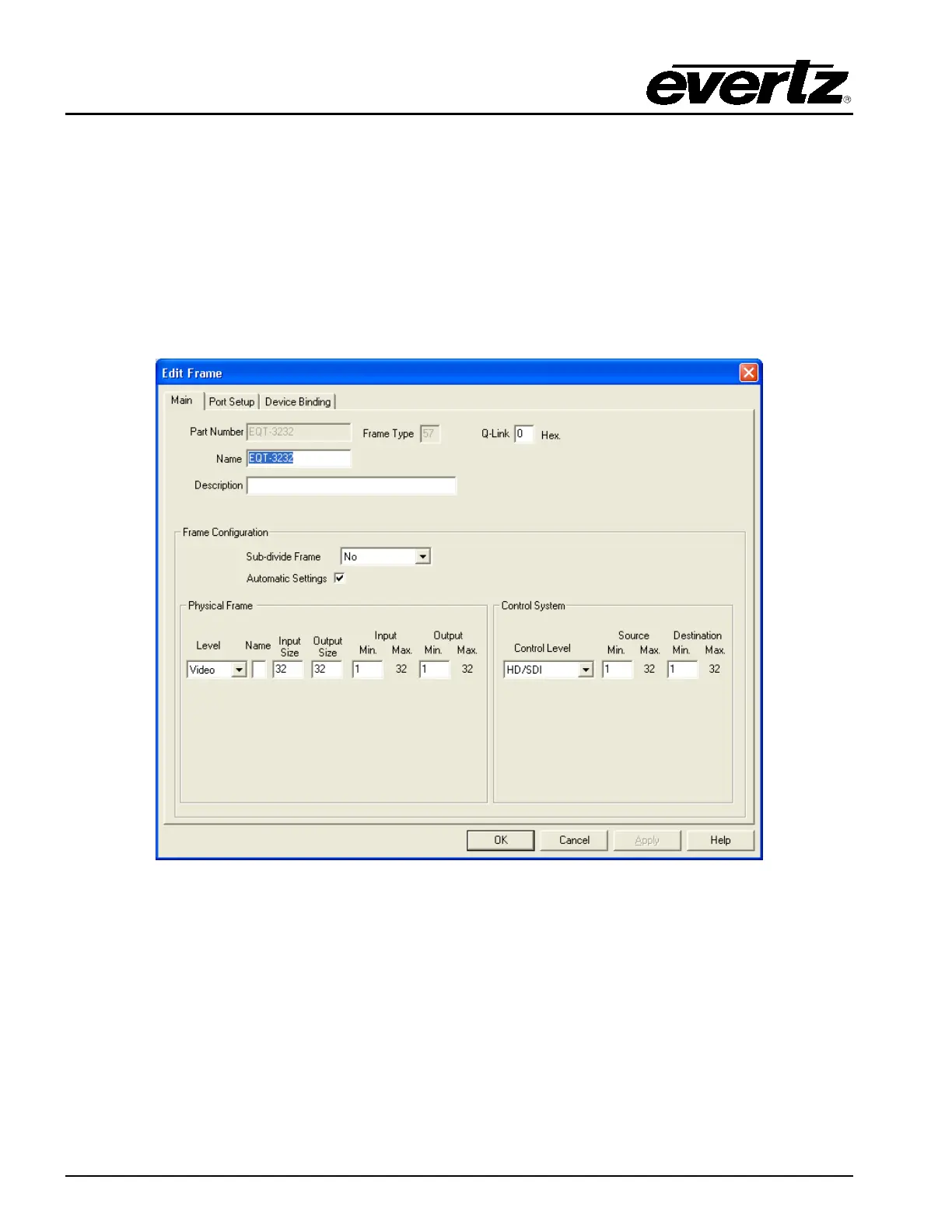

Figure 6-2: WinSetup Frame Editor
(3) Sources: Enter the sources dialog and use the add button to fill the name table with SRC-1 to
SRC-X. The names can be edited later when a few panels are configured and working correctly.
