EQT Router User Manual
Revision 1.9.1 Page 49
6. CONFIGURING THE SYSTEM USING WINSETUP
The WinSetup program is used to configure most of the routing functions, including control panel
operation. It allows such things as the number of signal levels to be defined, which control panels are
connected to the system and the names of the inputs and outputs.
The configuration of the EQT uses a special version of WinSetup. To ensure that the correct version is
used, check the Options> System Version menu. The correct version has the SC-500E as the only
system inside the Routing System Controller box.
Note: Configuration of the EQT requires a specific version of WinSetup.
WinSetup is supplied with a comprehensive help system that can be accessed by pressing F1 (function
key F1) from any screen (dialog). The help system can also be entered from the Help> Index menu. The
following notes are a very brief guide to getting started with WinSetup.
The following dialog box is the WinSetup main screen. Any part of the system can be configured from the
menu at the top of the screen. The grey bars above each main section and the line items within the main
sections can both be used for quick access to specific items.

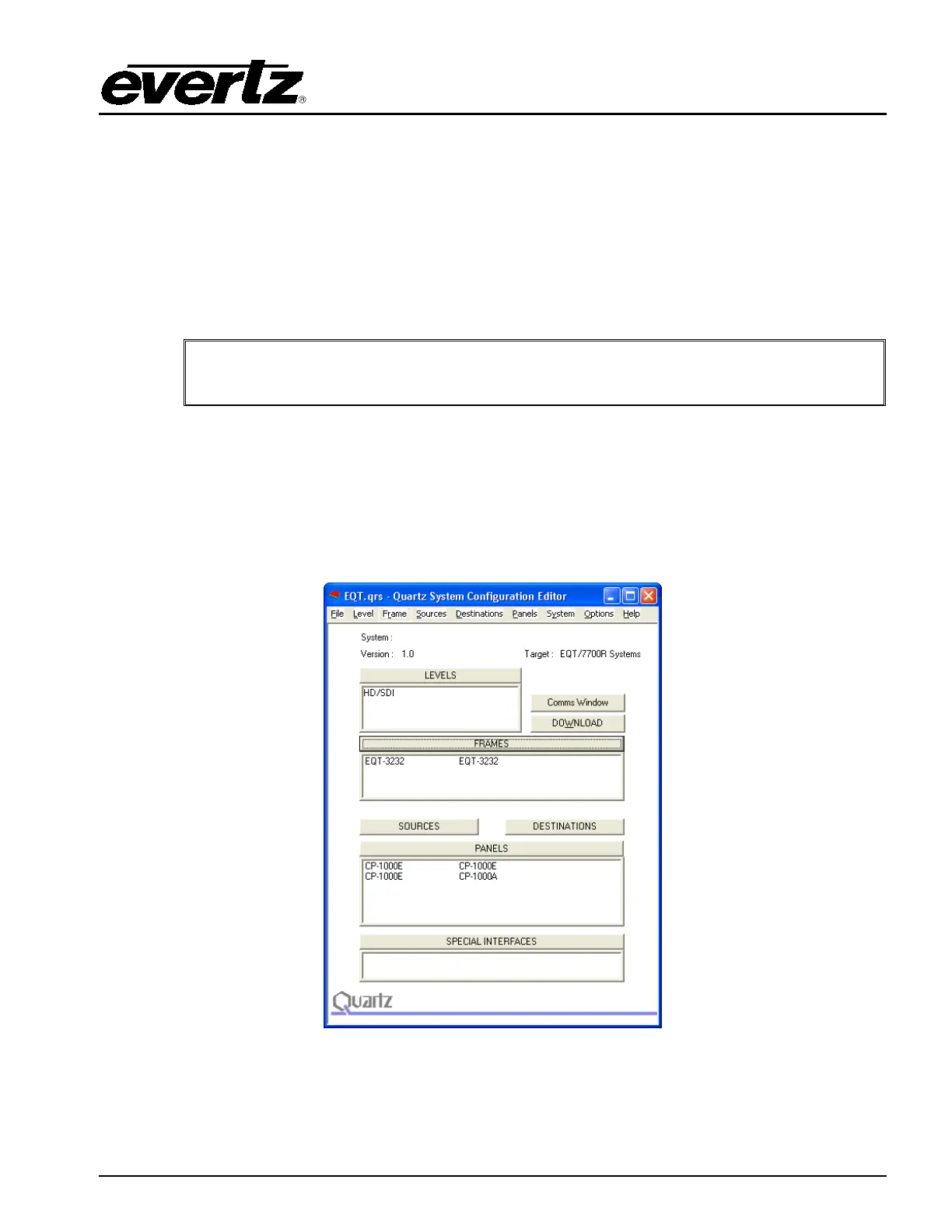

Figure 6-1: WinSetup Configuration Editor
