EQT Router User Manual
Page 52 Revision 1.9.1

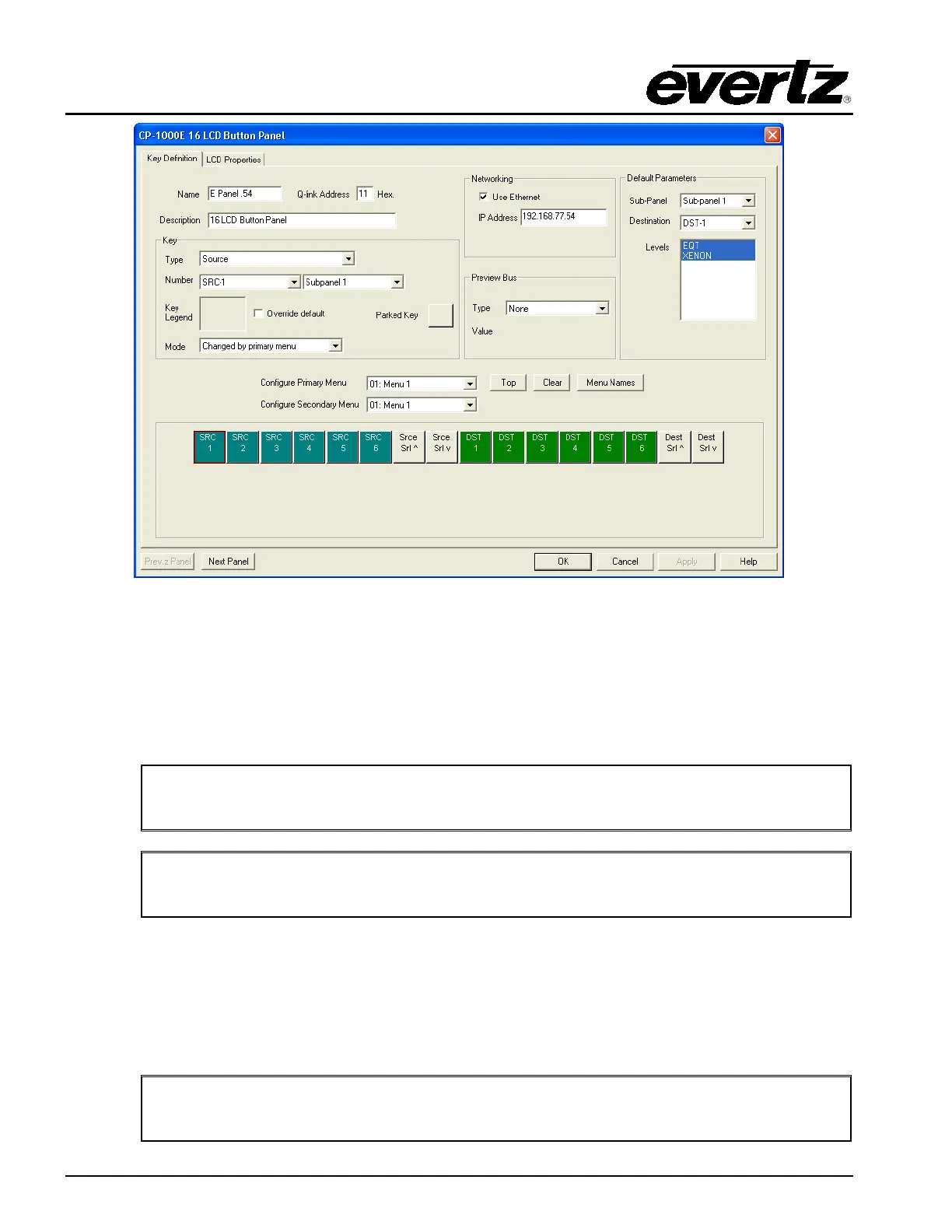

Figure 6-4: WinSetup Panel Configuration
Each button can be programmed by selecting the button and then editing the functions in the
Key section of the dialog box. Each panel should also be given a name for later identification; E
Panel .54 is used in this example. The Q-Link address will be allocated automatically by the
program but can be edited if required. The default parameters control how the panel will
function at power up. In this example the panel will always control DST-1 to start with. Now
add any further panels that the system will need.
Note: An indication for the connection method used (Q-
Link or Ethernet) must be
made in the panel configuration of each panel.
Note: For –
CS versions that are equipped with a local control panel, an Ethernet
panel configuration must be defined using the type CP-2402E.
To differentiate between a panel that is connected via Q-Link and a panel that is connected via
Ethernet, check the Use Ethernet box when appropriate. When checked, an IP address is
required to be entered. This is the IP address of the control panel.
(6) Download: Use the System menu, Download-to-Router to transfer the setup data to the router.
Remember to save the setup as it CANNOT be retrieved from the router.
Note:
The configuration for the EQT can only be downloaded over Ethernet and not
serially.
