Note: Configuration downloads to the EQT must be done using port 2500.
6.1. COMMUNICATION PORT SETUP
The EQT has several communication ports that require additional setup. This section is used to define
all of the interfaces that will be connected to the EQT. Enter the Edit Frame dialog and select the Port
Setup tab. From this dialog, ports can be added for Ethernet or serial control, Ethernet panel hosting,
and Q-Link panel hosting.

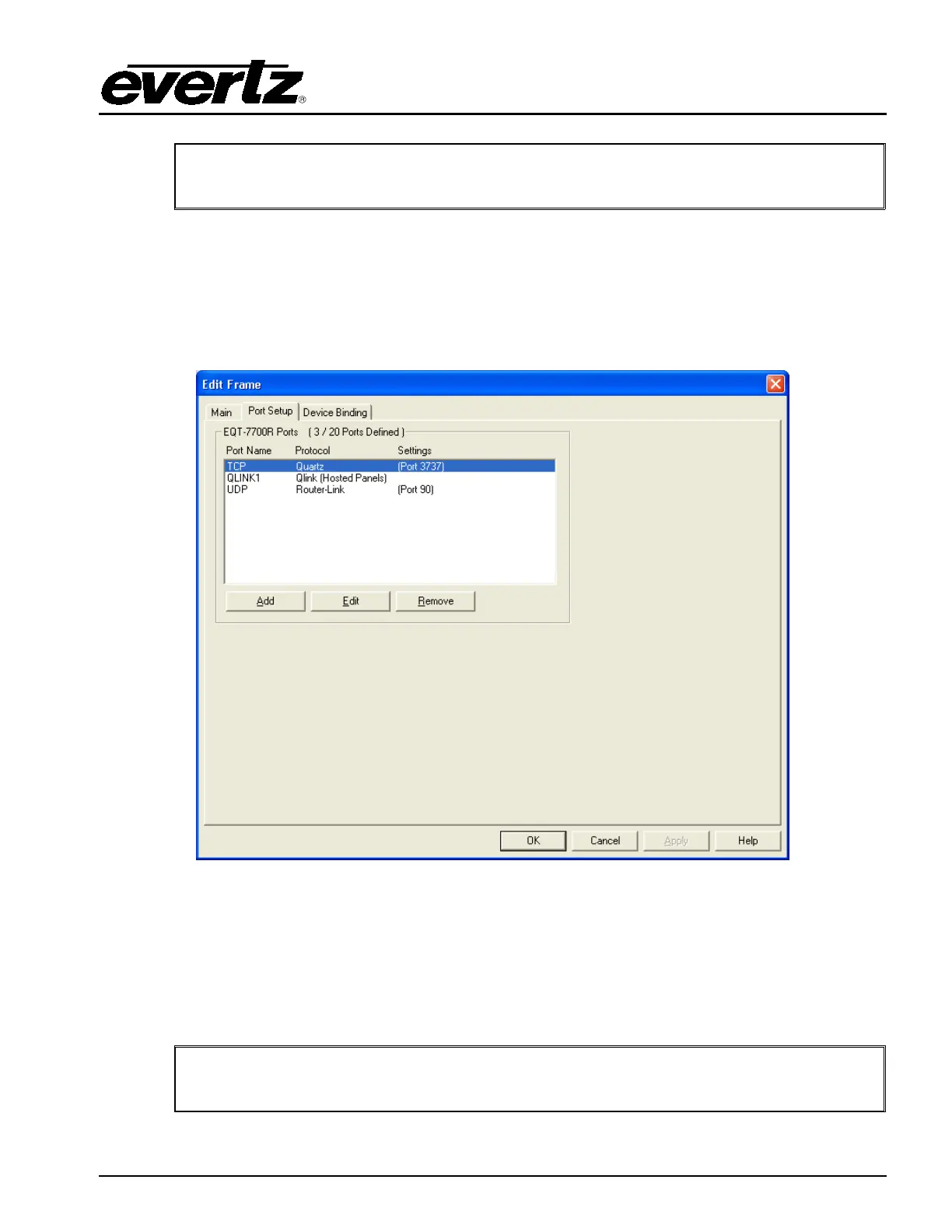

Figure 6-5: Port Setup
6.1.1. Control Panel Ethernet Interface
The control panel Ethernet port is a single interface that is defined to allow all properly equipped control
panels to connect to the EQT via Ethernet. The interface is defined as a UDP interface using the
RouterLink protocol. The port is always defined as 90. A properly configured setting is shown in Figure
6-6.
Note: A control panel Ethernet interface must be setup on the –CS versions that
are equipped with a local control panel.
