EQT Router User Manual
Revision 1.9.1 Page 25

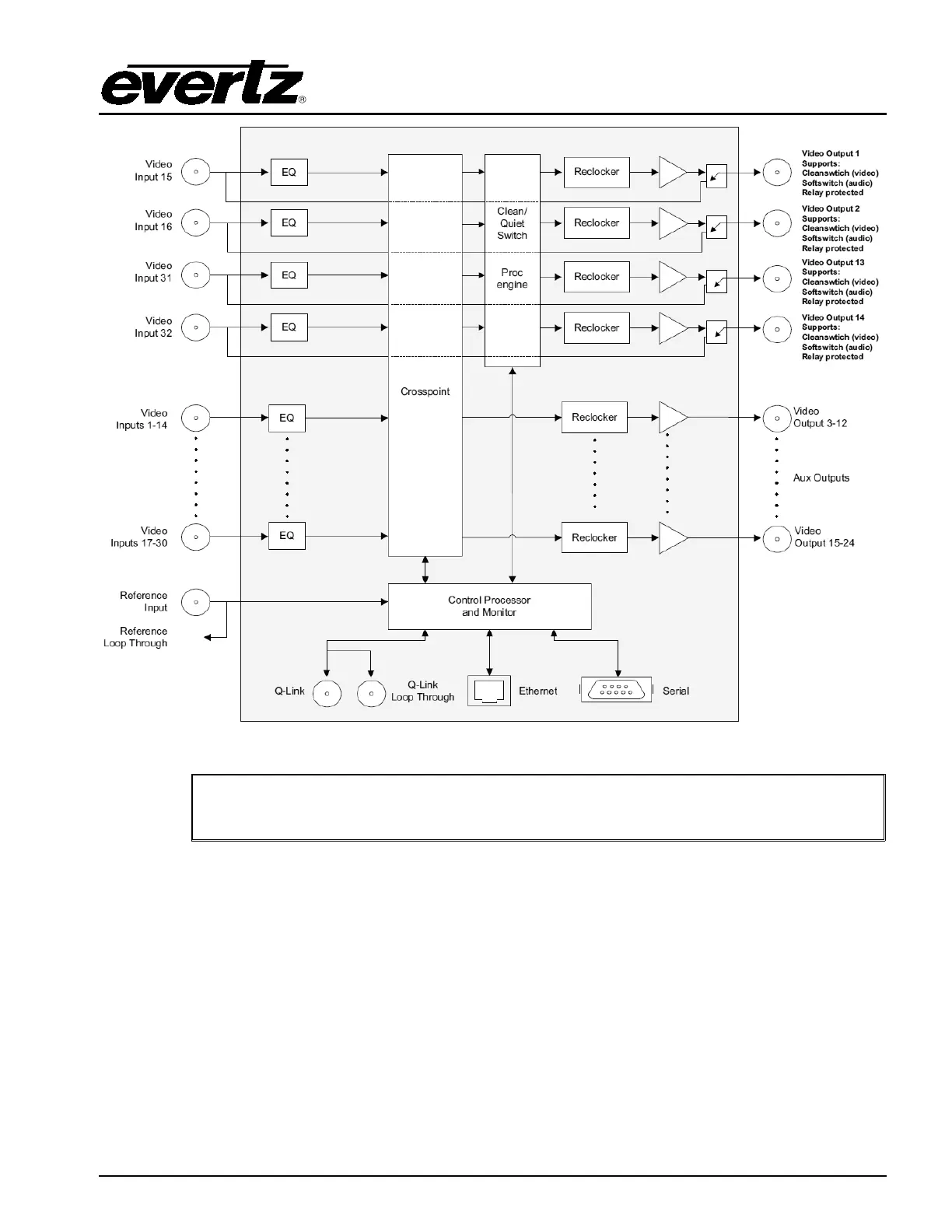

Figure 4-4: EQT-3204-3G-CS Block Diagram
Note: The relay protected outputs are Video Outputs 1, 2 in EQT-1602-CS and 1,
2, 13 and 14 in EQT-3204-CS and EQT-3224.
