EQT Router User Manual
Page 26 Revision 1.9.1
4.1.1. Front View

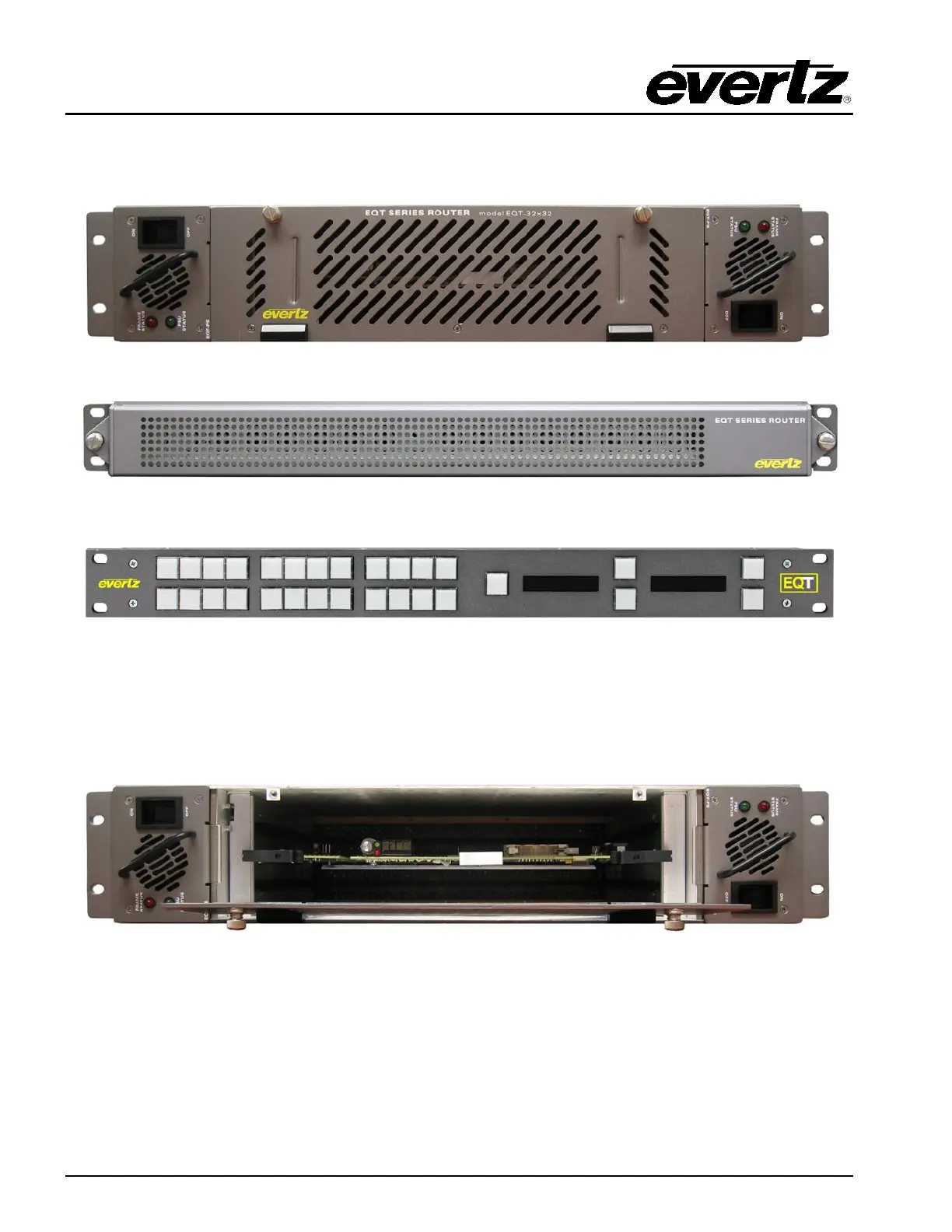

The front view of the EQT, as shown in Figure 4-5, Figure 4-6 and Figure 4-7, illustrates the flexibility
and ingenuity that was incorporated into the design.
Figure 4-5: Front View of EQT-3232
Figure 4-6: Front View of EQT-1616 and EQT-1604
Figure 4-7: Front View of EQT Clean Switch Versions (with Control Panel)
The front of the EQT router is accessible at all times by loosening the two thumb screws as shown in
Figure 4-8 and opening the front door. With the door open, the power supplies as well as the main
processing module of the EQT can be removed. This allows the user to maintain system connectivity in
cases where the power supply or main module needs to be serviced or upgraded. The clean switch
versions of the EQT do not have front accessibility of the electronics or power supplies.
Figure 4-8: Front View of EQT with Door Open
4.1.2. Rear View
There are a number of communication connections on the rear of the EQT frame. Figure 4-9, Figure
4-10, Figure 4-11 and Figure 4-12 identifies all of the connections on the rear panel. These connections
provide access to the various communication facilities of the EQT router, such as alarms, control and
video status monitoring.
