EQT Router User Manual
Revision 1.9.1 Page 7
2. INSTALLATION
2.1. UNPACKING
Remove the equipment carefully from the boxes and check against the Packing List supplied with each
unit. This shows what items have been shipped against your order and includes all options.
Any error should be reported to your supplier immediately. After you have unpacked the equipment
please save all the packing material as this could be useful in the future should the unit need to be
returned for maintenance.
Check each item supplied for transit damage. Any damage should be reported in detail to your supplier.
You must state the serial number of the unit, which can be found on the rear of the frame. Check that
power cords supplied are suitable for your country and that the equipment is compatible with your
mains (line) voltage. Note that remote panels are mains powered and must also be checked.
Note: Ensure that the EQT module is installed firmly inside the frame and that it
has not fallen out of position during shipping. Does not apply to –CS versions.
2.2. PHYSICAL INSTALLATION
2.2.1. Router Frames
All units are designed for mounting in standard 19" equipment racks. The depth of all the frames is
262mm, except the –CS and EQT-3224 versions which are 477mm deep. In addition allowance must
be made to accommodate the various cables which are to be installed at the rear of the frame.
Power dissipation in all units is low and cooling is achieved by fan-assisted convection.
2.2.2. Remote Panels
The Q-Link and Ethernet remote panels are 130mm deep plus the size of the cables. All remote panels
are designed to fit into standard 19" equipment racks and can be mounted at any angle.
2.3. ELECTRICAL CONNECTIONS
Figure 2-1 and Figure 2-2 display the EQT rear panel connections.

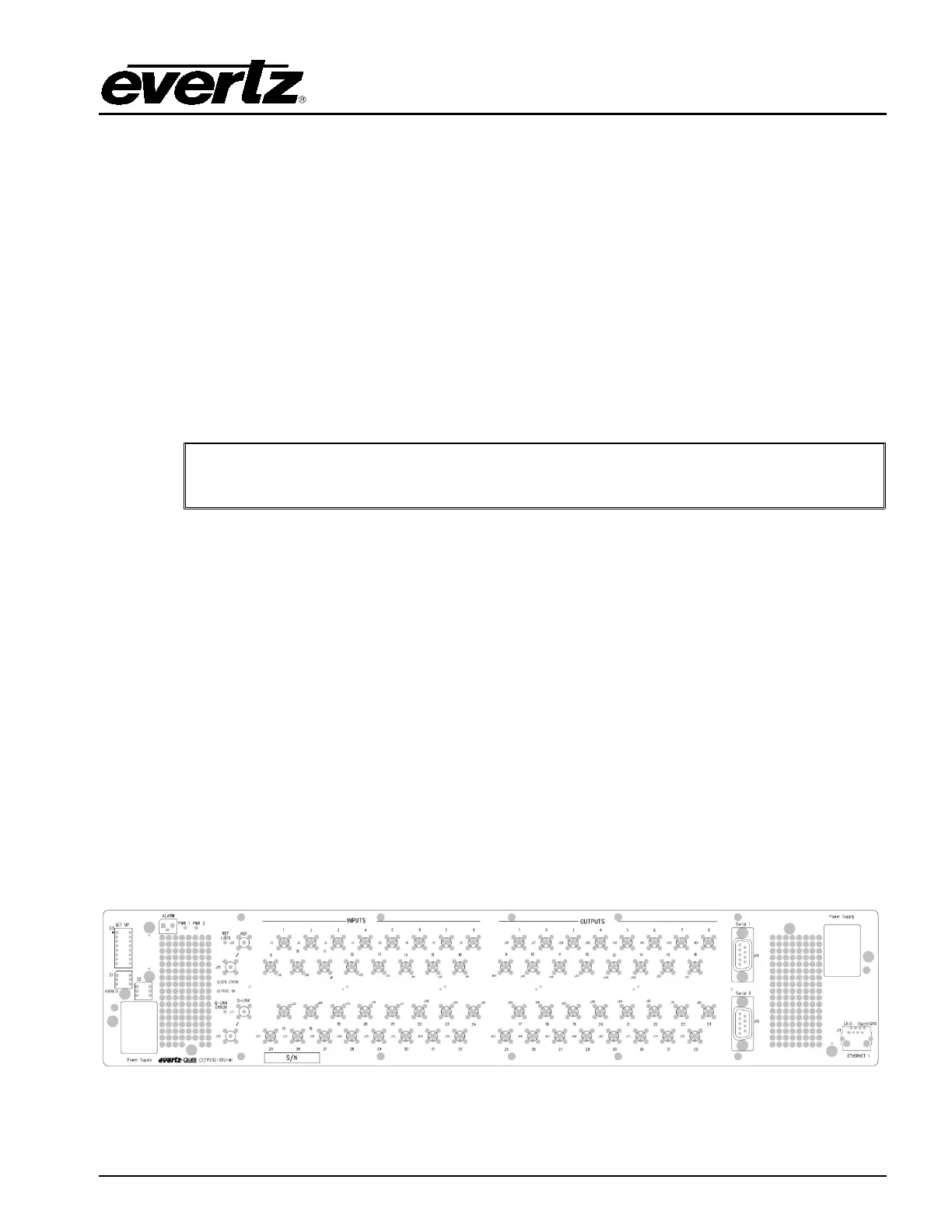

Figure 2-1: EQT Rear View (EQT-3232)
