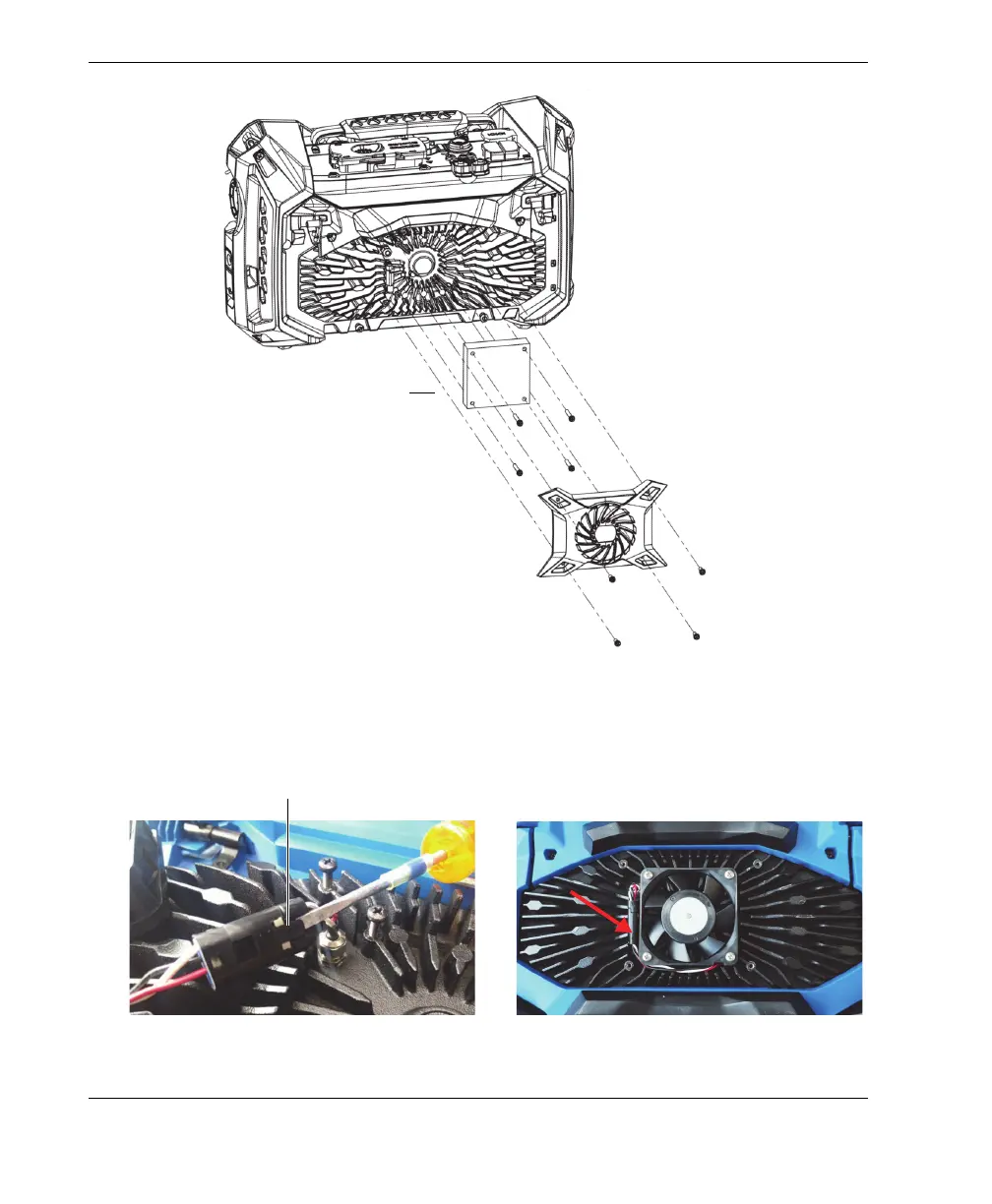

Figure 4-2 Assembly of fan and cover parts
Figure 4-3 Fan cable disconnection (left) and final placement (right)
Four screws on cover
Four screws on fan
Note: Use a Phillips #1
screwdriver for all screws.
Fan P/N: OMNIX3-SP-FAN (Q8301490)
Use a flathead screwdriver to pull up
the tab, and then disconnect the cable.
