mixer nozzles
If it became necessary to remove the instant shelf, dur-
ing the reassembly phase, pay attention to the nozzle/
pump combination used before.
Nozzles with 1 hole must be mounted in such a way that
the water is placed in the mixer from the lower coupling.
Consistent changes in the doses of a beverage may
require the replacement of the corresponding nozzle to
maintain proper ow.
The nozzles, with dierent capacities, are identied by
the color and number of holes:
Nozzle Capacity
Magenta (1 hole) 9 - 11 cc
Orange (1 hole) 11 - 13 cc
Magenta (2 holes) 19 - 22 cc
Orange (2 holes) 22 - 25 cc
White (1 hole) 22 - 25 cc
When changing the nozzle, it is necessary to set the
type of nozzle installed in the software of the device (in
the pump calibration function from the technical menu).
The white nozzle is used for the delivery of hot
water only.
At the end of the procedure it is necessary to test the
selections using the mixer to be sure of the correctness
of the beverage dispensing cycle.
1 2 3 4 5
6

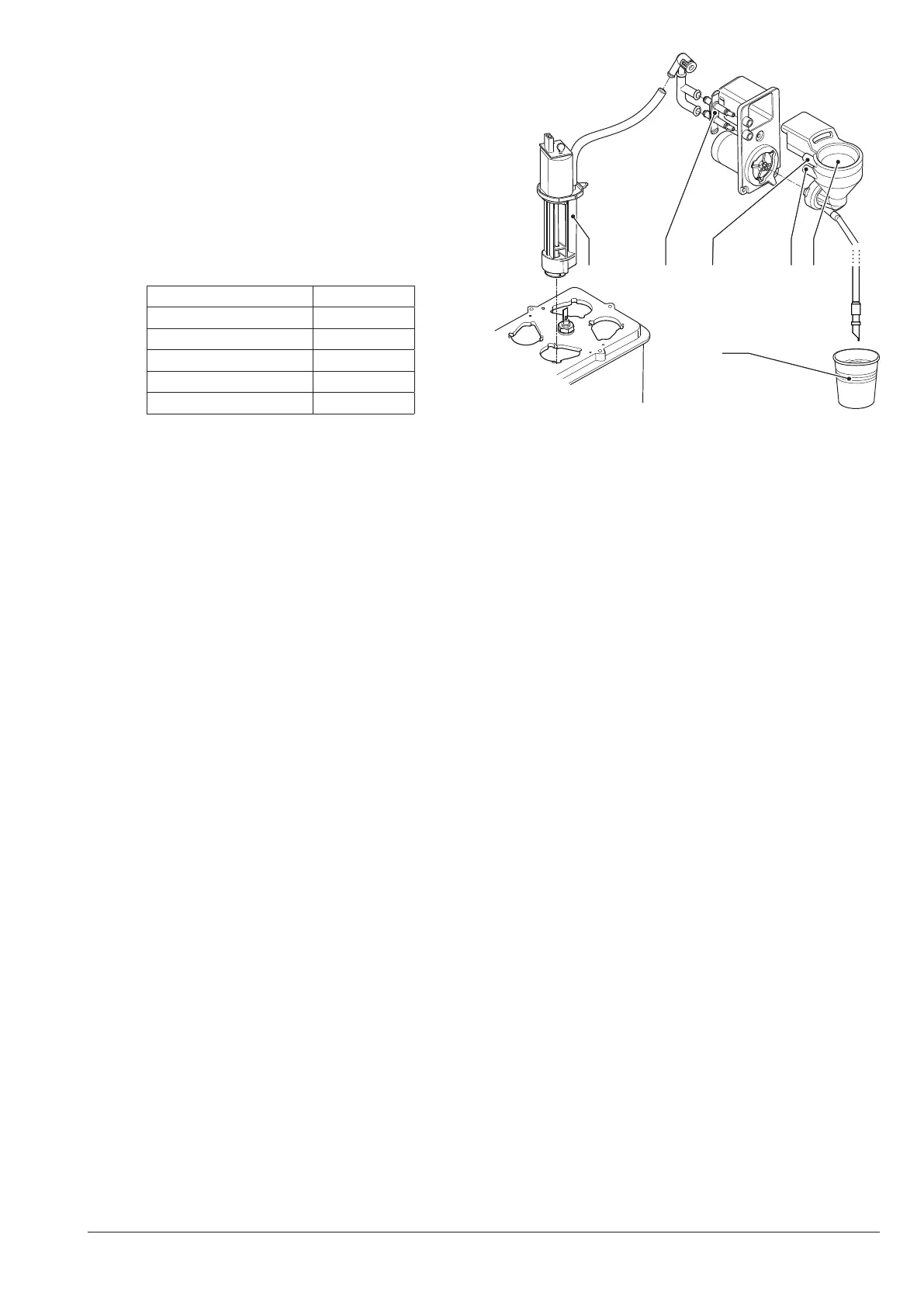

Fig. 33
1- Pump
2- Nozzle plate (single or double)
3- Upper coupling
4- Lower coupling
5- Mixer
6- Dispensed beverage
