EVOCA Opera - Page 68

05 2013 4365 00
1- LIQUID WASTE CONTAINER
2- WATER INLET SOLENOID VALVE
3- DISPENSING NOZZLES
4- INFUSER UNIT
5- EXPANSION NOZZLE
6- MIXER SHELF
7- SAFETY THERMOSTAT
8- ANTI-BOILING THERMOSTATS
9- AIR-BREAK
10- BOILER
11- HOT WATER TAP (IF PRESENT)

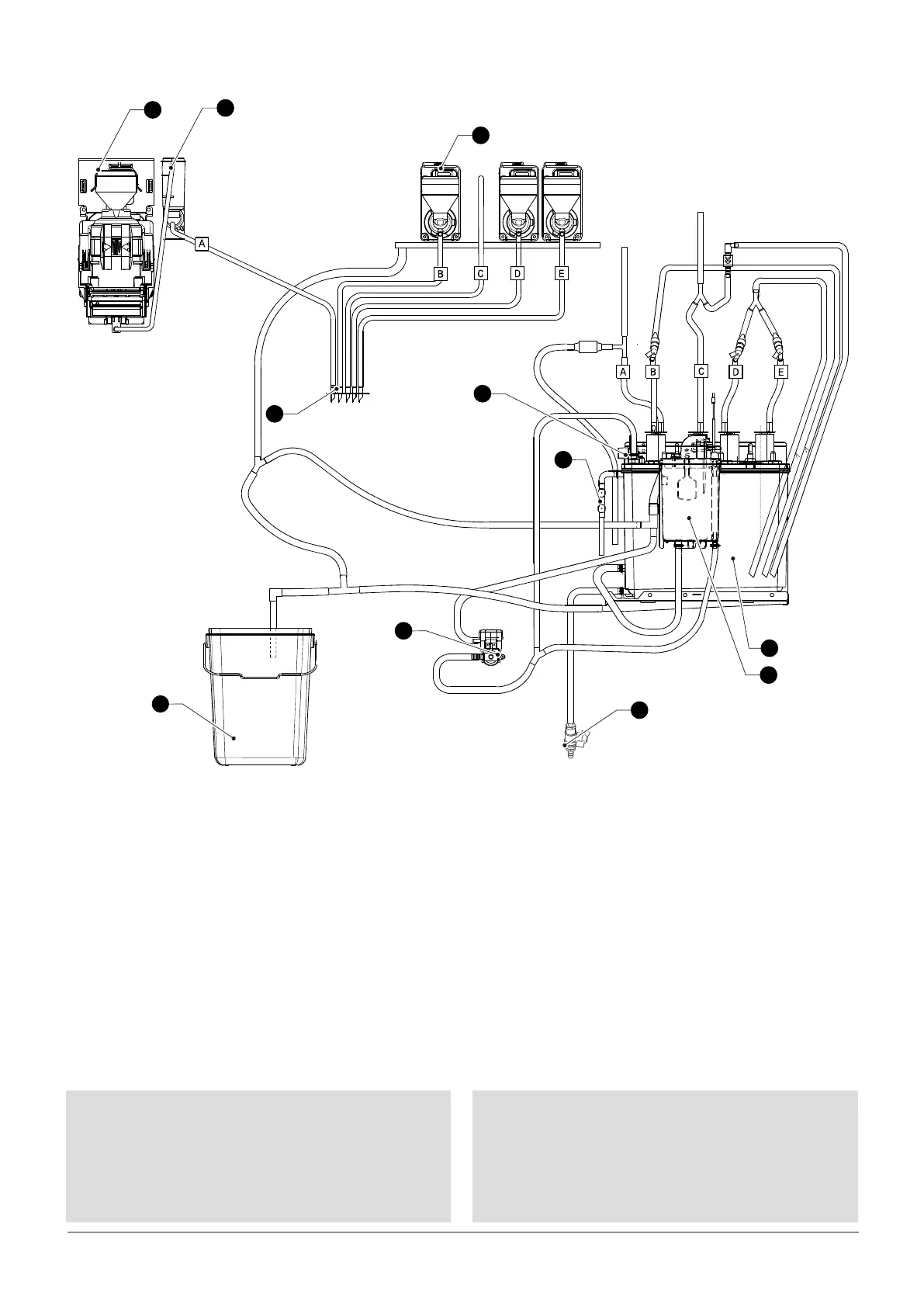

FRESH BREW HYDRAULIC CIRCUIT
1
2
3
4
5
6
8
7
10
9
11
