1- LIQUID WASTE CONTAINER
2- WATER INLET SOLENOID VALVE
3- DISPENSING NOZZLES
4- MIXER SHELF
5- SAFETY THERMOSTAT
6- ANTI-BOILING THERMOSTATS
7- AIR-BREAK
8- BOILER
9- HOT WATER TAP (IF PRESENT)

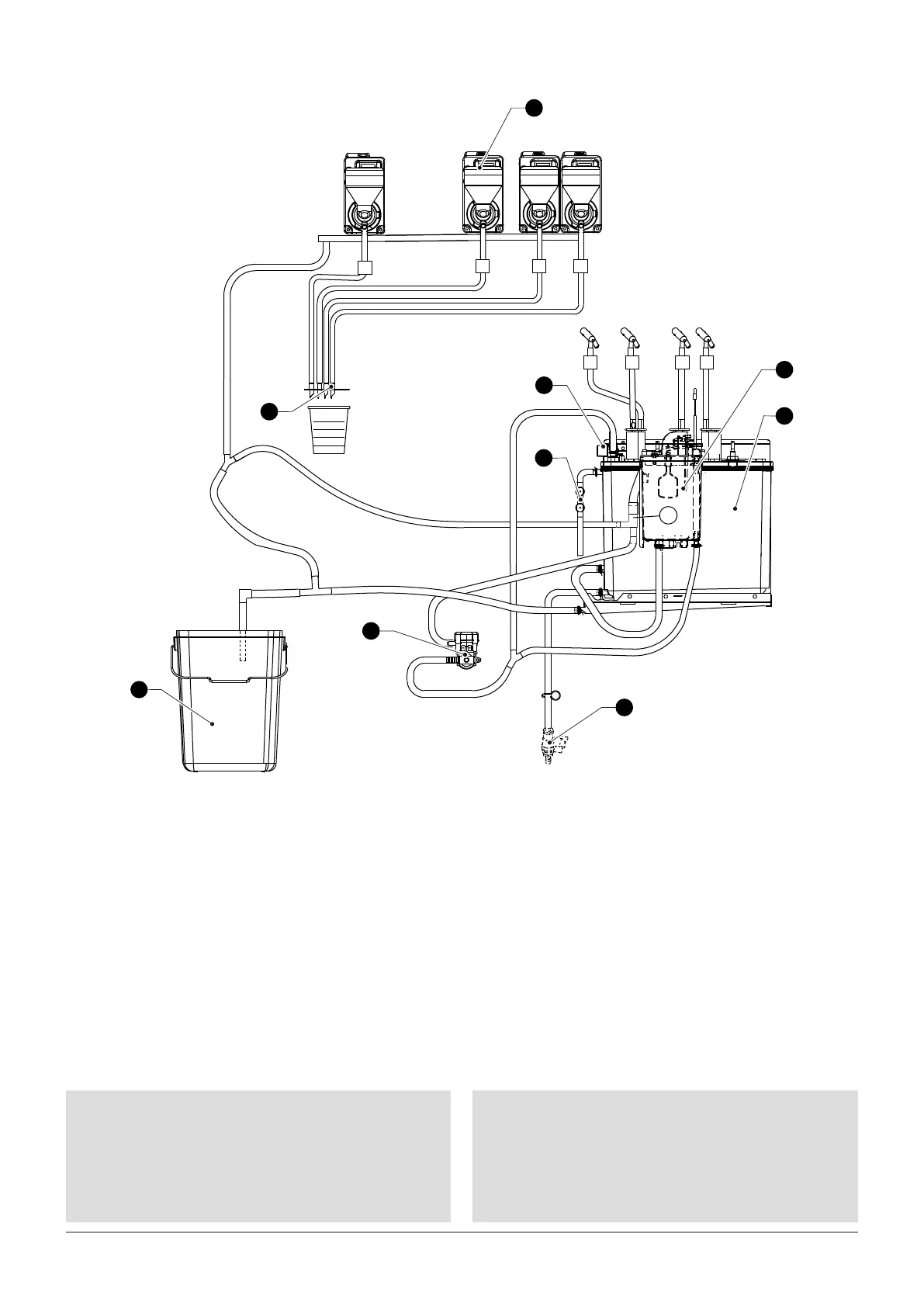

INSTANT HYDRAULIC CIRCUIT
2
1
3
4
5
6
8
7
9
