Rectifying faults

Vent coolant circuit

099-000121-EW501

29.06.2015

101

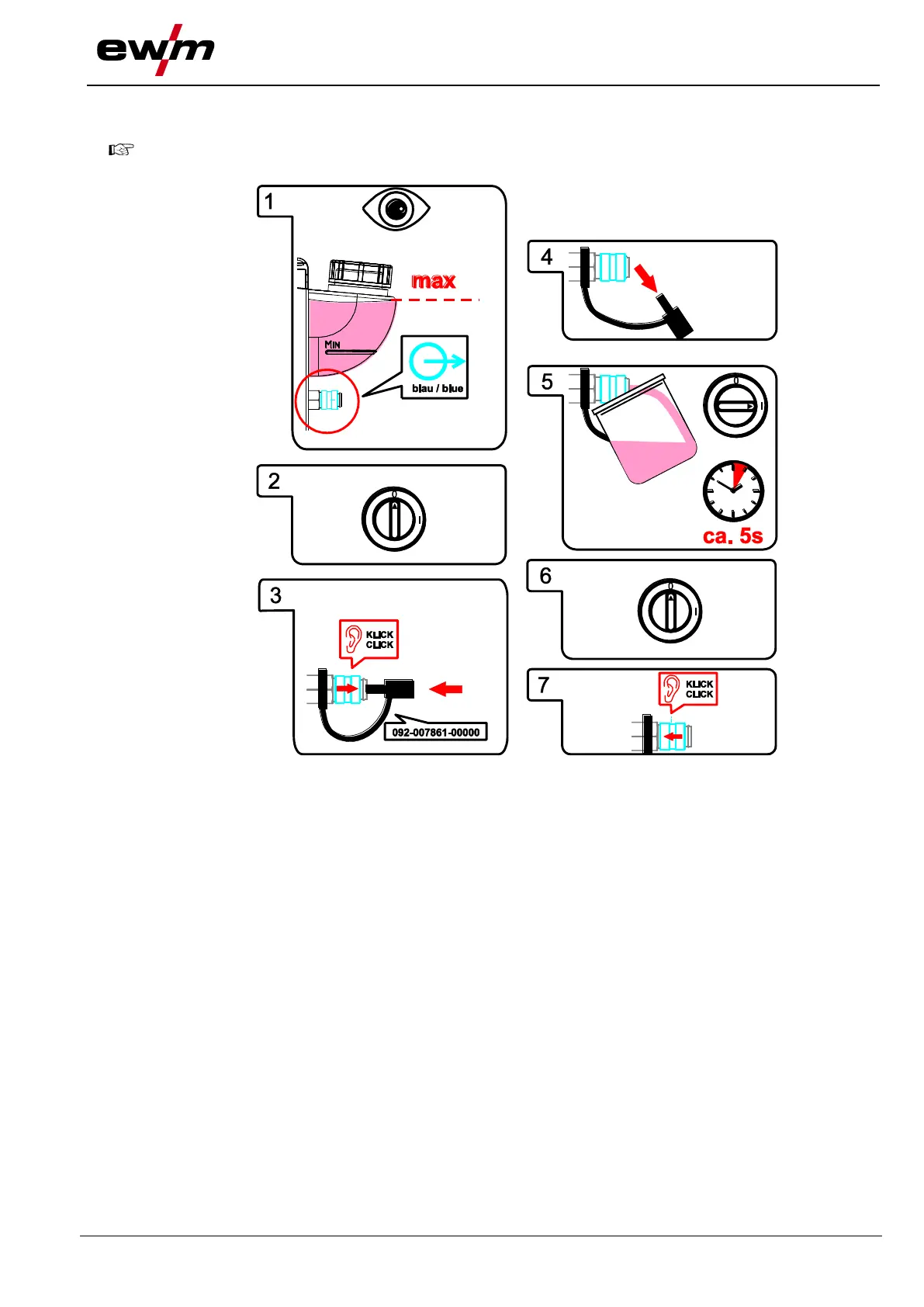

7.7 Vent coolant circuit

To vent the cooling system always use the blue coolant connection, which is located as deep as

possible inside the system (close to the coolant tank)!

Figure 7-3
