Design and function
Welding torch cooling system
26
099-000121-EW501
29.06.2015
5.5 Welding torch cooling system
Please note the relevant documentation of the accessory components.

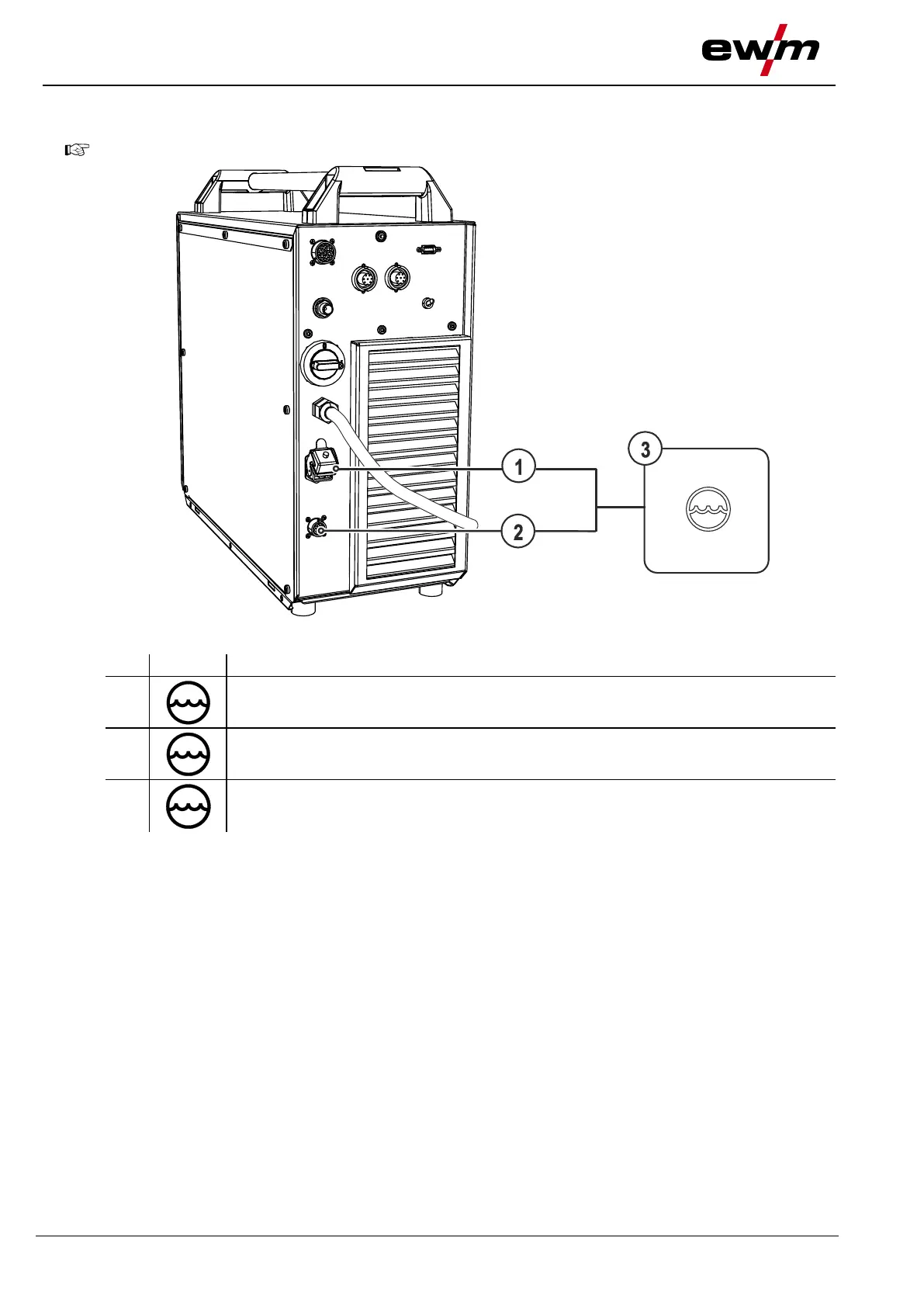

Figure 5-1
Item
Symbol
Description 0
1
4-pole connection socket
Cooling unit voltage supply
2
8-pole connection socket
Cooling unit control lead
3
Cooling module
Control and supply lead to the welding machine
The cooling module and welding machine are connected using two leads.
• Insert the control lead plug on the welding machine.
• Insert the power supply lead plug on the welding machine.
