5.9.17.1 Standard TIG torch (5-pole)

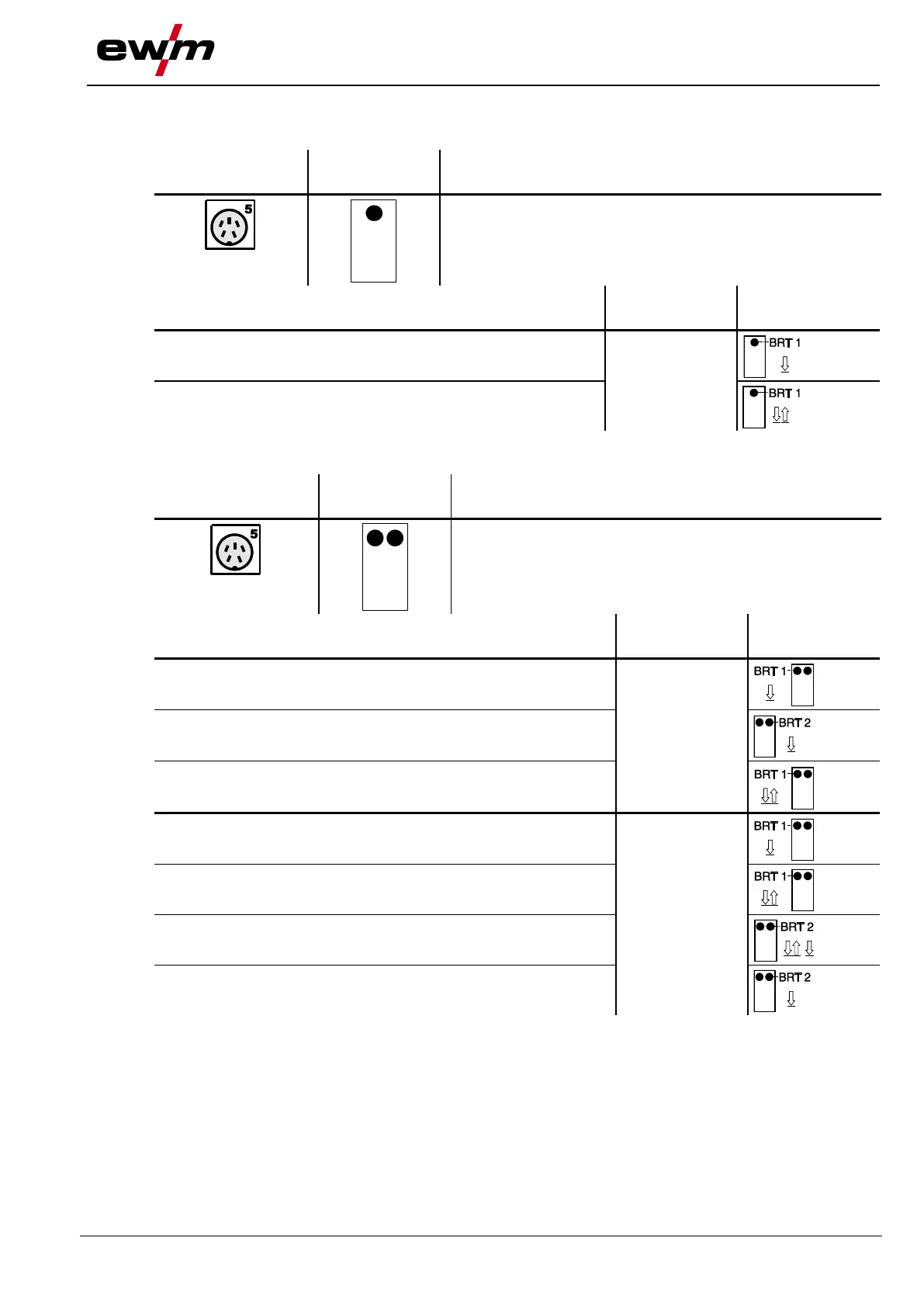

Standard torch with one torch trigger:
Diagram
Operating
elements
Explanation of symbols
BRT1 = Torch trigger 1 (welding current on/off;
secondary current via tapping function)
Functions
mode
Operating
elements
Welding current On/Off
1
(factory-set)
Secondary current (Latched mode)
Standard torch with two torch triggers:
Diagram
Operating
elements
Explanation of symbols
BRT1 = torch trigger 1
BRT2 = torch trigger 2
Functions
mode
Operating
elements
Welding current On/Off
1
(factory-set)
Secondary current
Secondary current (tapping mode) / (latched mode)
Welding current On/Off
3
Secondary current (tapping mode) / (latched mode)
Up function
Down function
