5.13.7 Manual remote control RT PWS 1 19POL
Functions
• Infinitely adjustable welding current (0% to 100%) depending on the preselected
main current at the welding machine
• Pole reversing switch, suitable for machines with PWS function
5.13.8 Foot-operated remote control RTF1 19POL 5 M / RTF2 19POL 5 M
Functions
• Infinitely adjustable welding current (0% to 100%) depending on the preselected
main current on the welding machine.
• Start/stop welding operation (TIG)
ActivArc welding is not possible in combination with the foot-operated remote control.

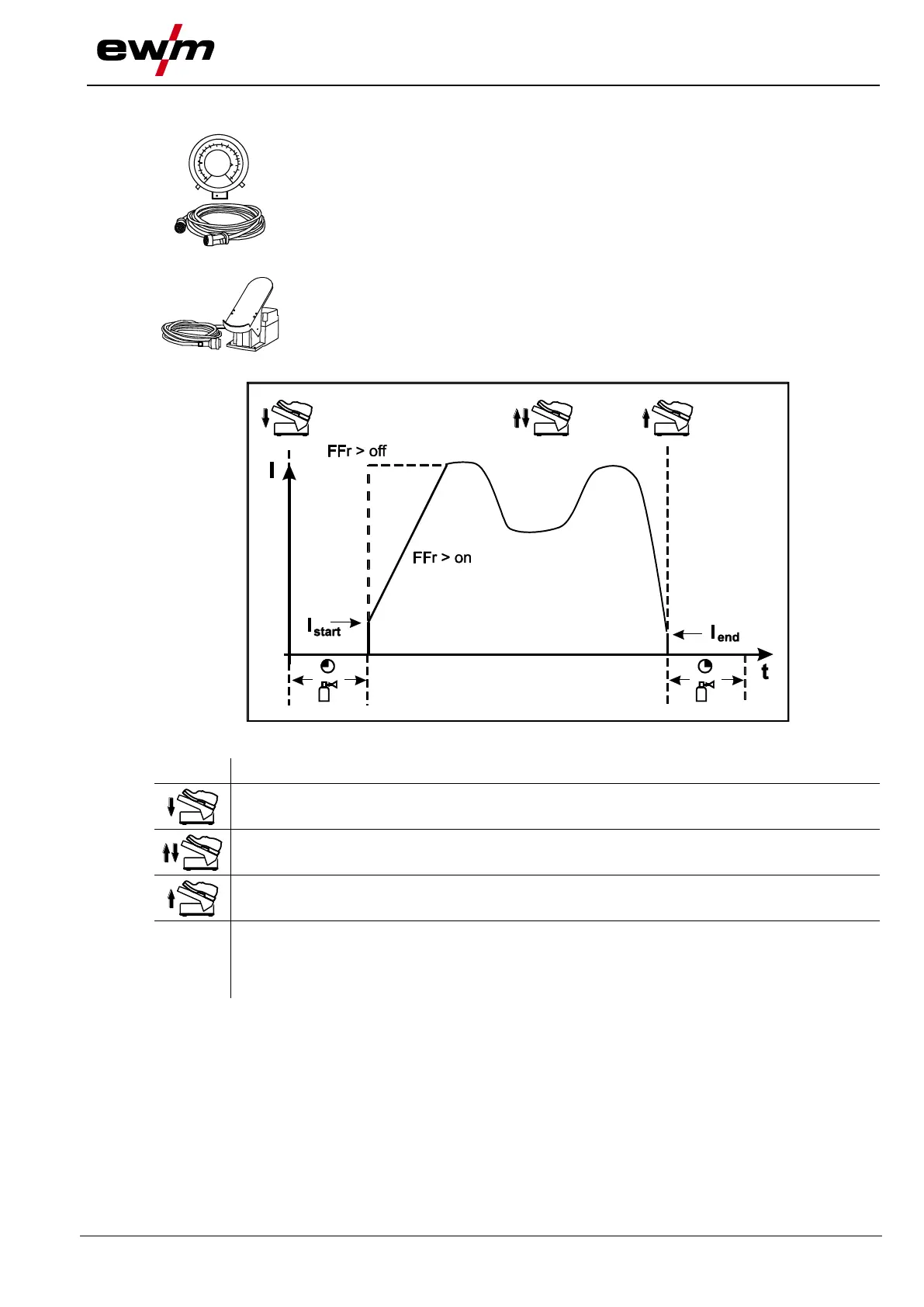

Figure 5-40
Symbol
Meaning
Actuate foot-operated remote control (start welding process)
Operate foot-operated remote control (set welding current according to application)
Release foot-operated remote control (end welding process)
FFr
RTF ramp function
on
Welding current runs in a ramp function at the specified main current
off
Welding current goes immediately to the specified main current
