Design and function
TIG welding
34
099-000121-EW501
29.06.2015

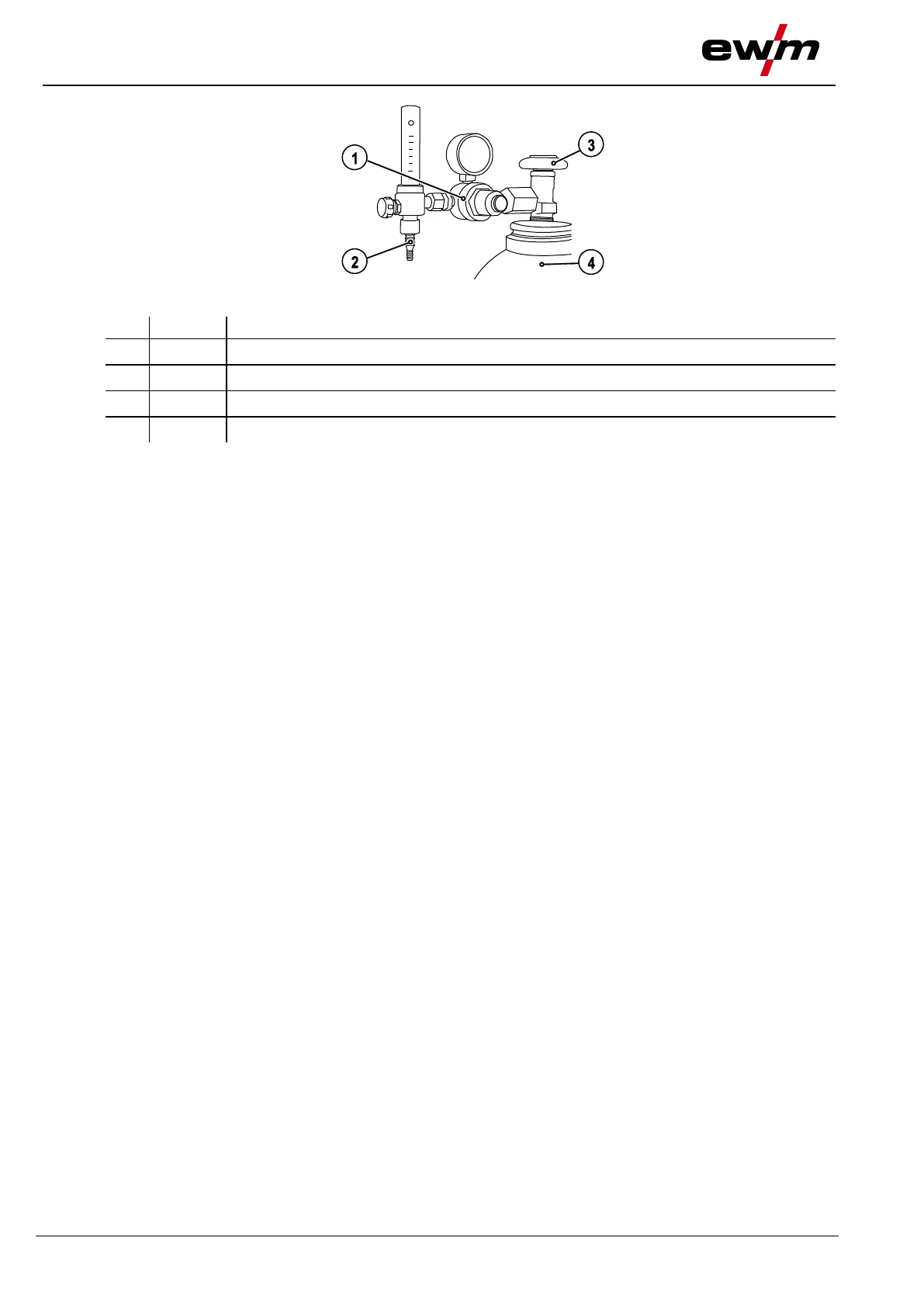

Figure 5-9
Item
Symbol
Description 0
1
Pressure regulator
2
Shielding gas cylinder
3
Output side of the pressure regulator
4
Cylinder valve
• Tighten the pressure regulator screw connection on the gas bottle valve to be gas-tight.
• Screw gas hose connection crown nut onto the output side of the pressure regulator.
