Inspecting Fiber Ends
62 FIP-400B
Inspecting Fiber Ends (Single Fiber and Transceiver - Fiber Receptacles)

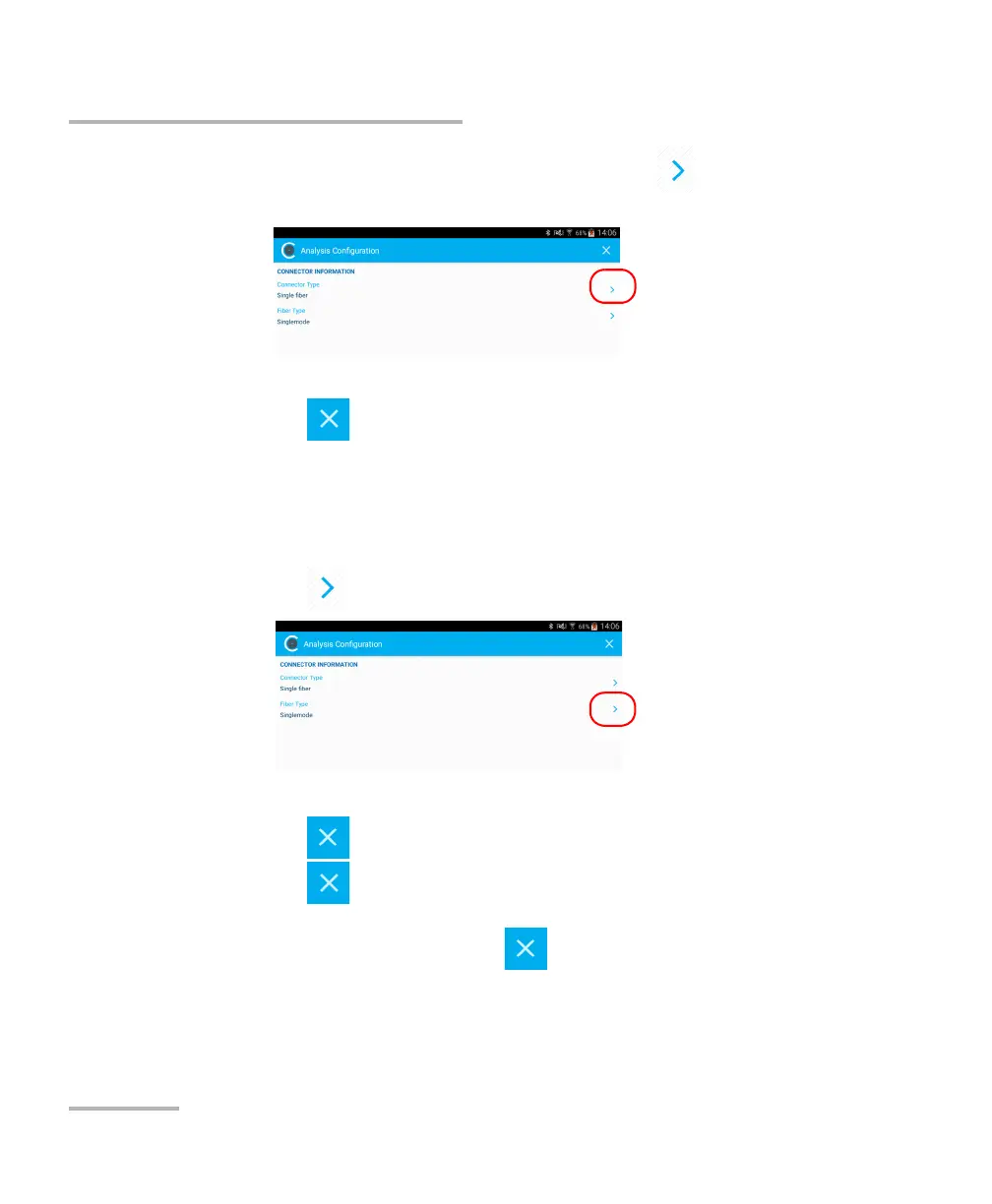

5c. In the Analysis Configuration window, tap to change the
connector type.
5d. Select Single fiber or Transceiver.
5e. Tap to exit the Connector Type window.
Note: If you are using a probe which is not MF-Ready, the multifiber connector
option is not displayed.
6. To specify the fiber type you want to use, proceed as follows:
6a. Tap at the end of the Fiber Type row.
6b. Select a fiber type.
6c. Tap to return to the Analysis Configuration window.
6d. Tap to exit the Analysis Configuration window.
7. In the Test Configuration window, tap the configuration you want to
use for your inspection and tap to return in live video mode.
Note: The test configuration list is updated according to the connector type and
fiber type you have selected.
