Getting Started with Your Unit
Fiber Inspection Scope 25
Changing Your Unit’s SmarTip

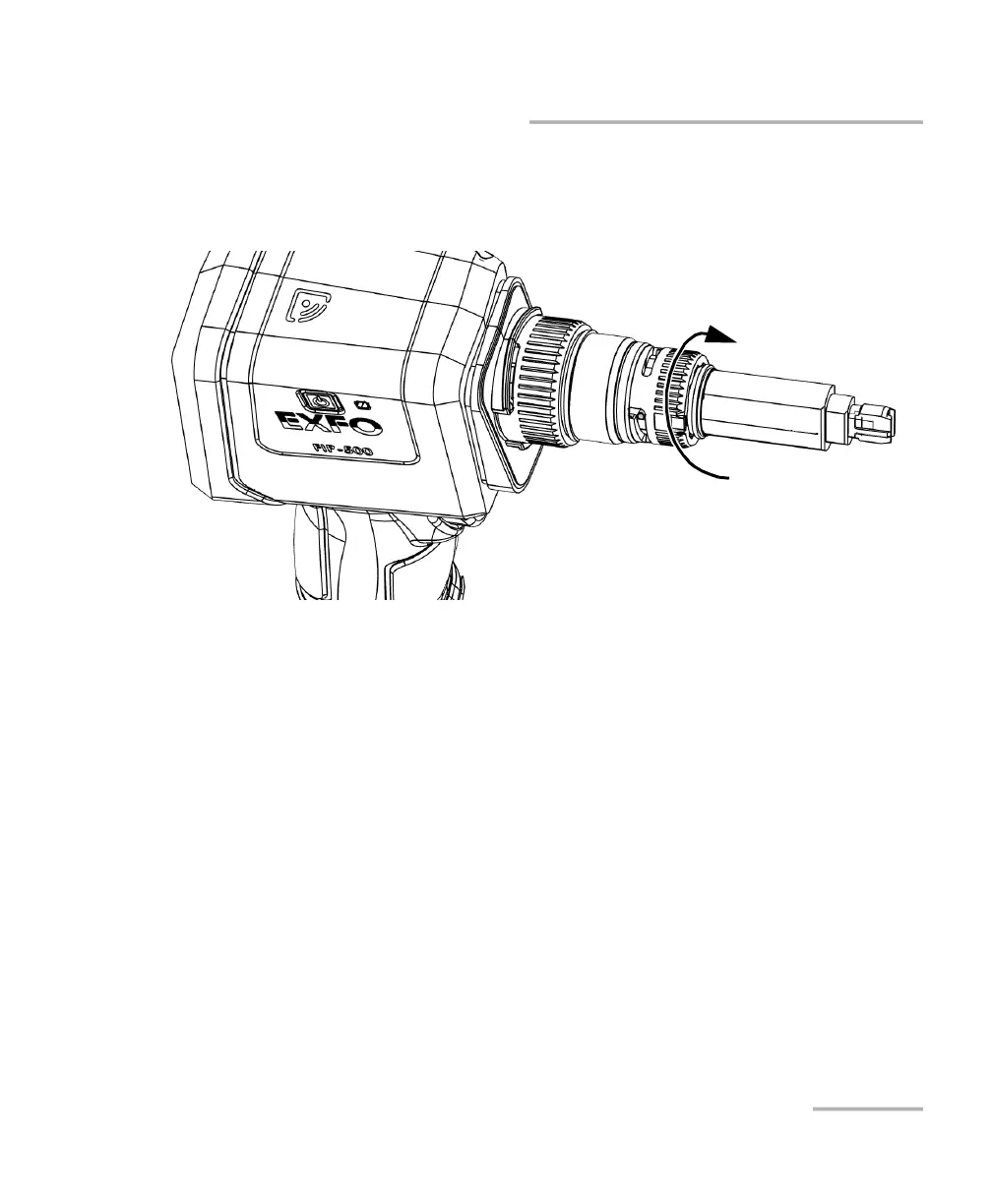

6. Turn the SmarTip retaining nut clockwise until the pins are aligned with
the narrowest part of the anchoring slots to secure the SmarTip in
place.
The new SmarTip is now ready to use.
