Replacing the Battery
8. Place the new battery so that its wires and connector are located on
the same side as the socket in your unit’s case. The battery connector
should be facing down.

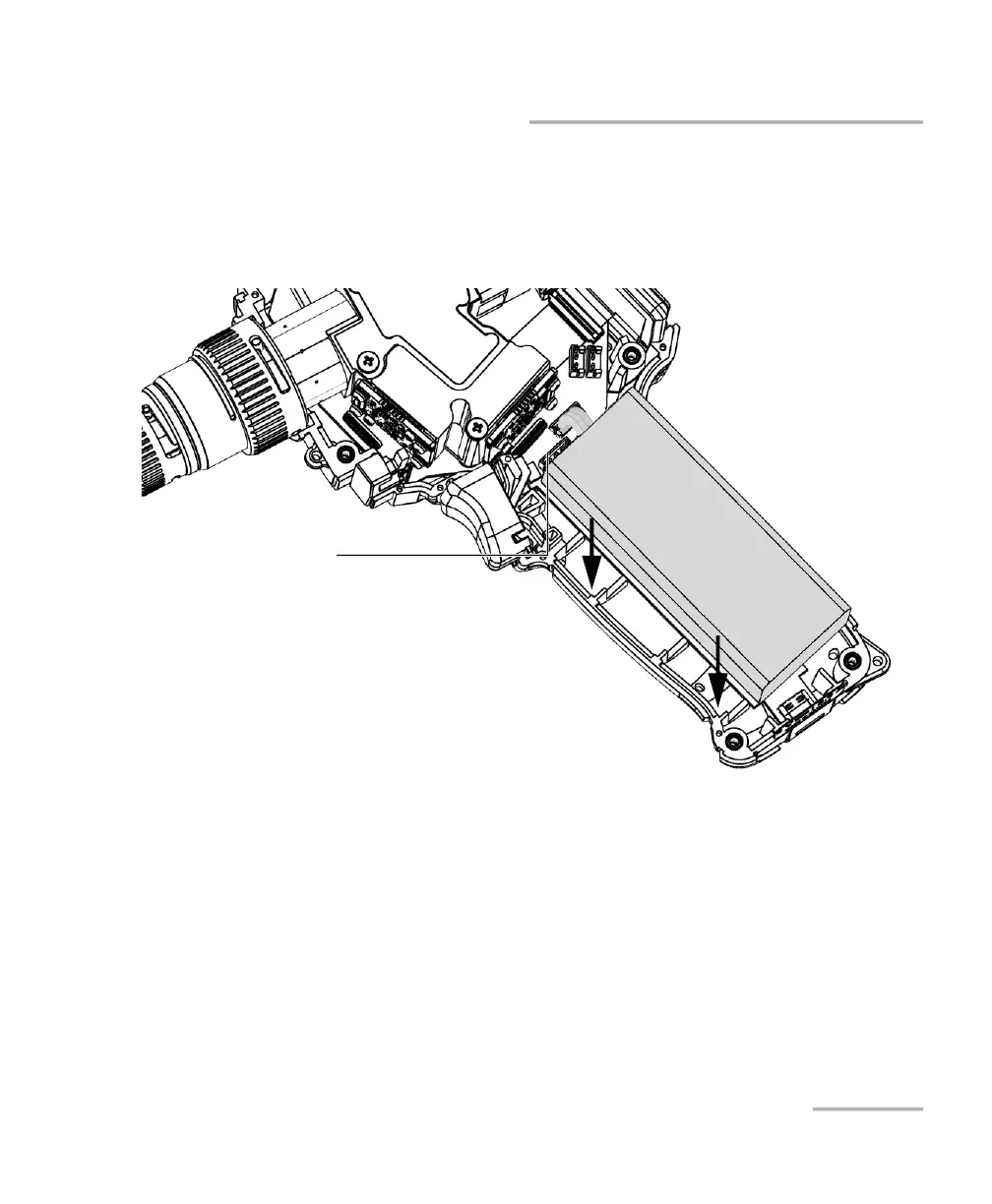

9. Place the new battery in the bottom of the case.
10. Connect the battery connector to the corresponding socket.
Socket for battery
connection
