Setting Up Your FTB-500

100 FTB-500

Configuring the Power Management Options

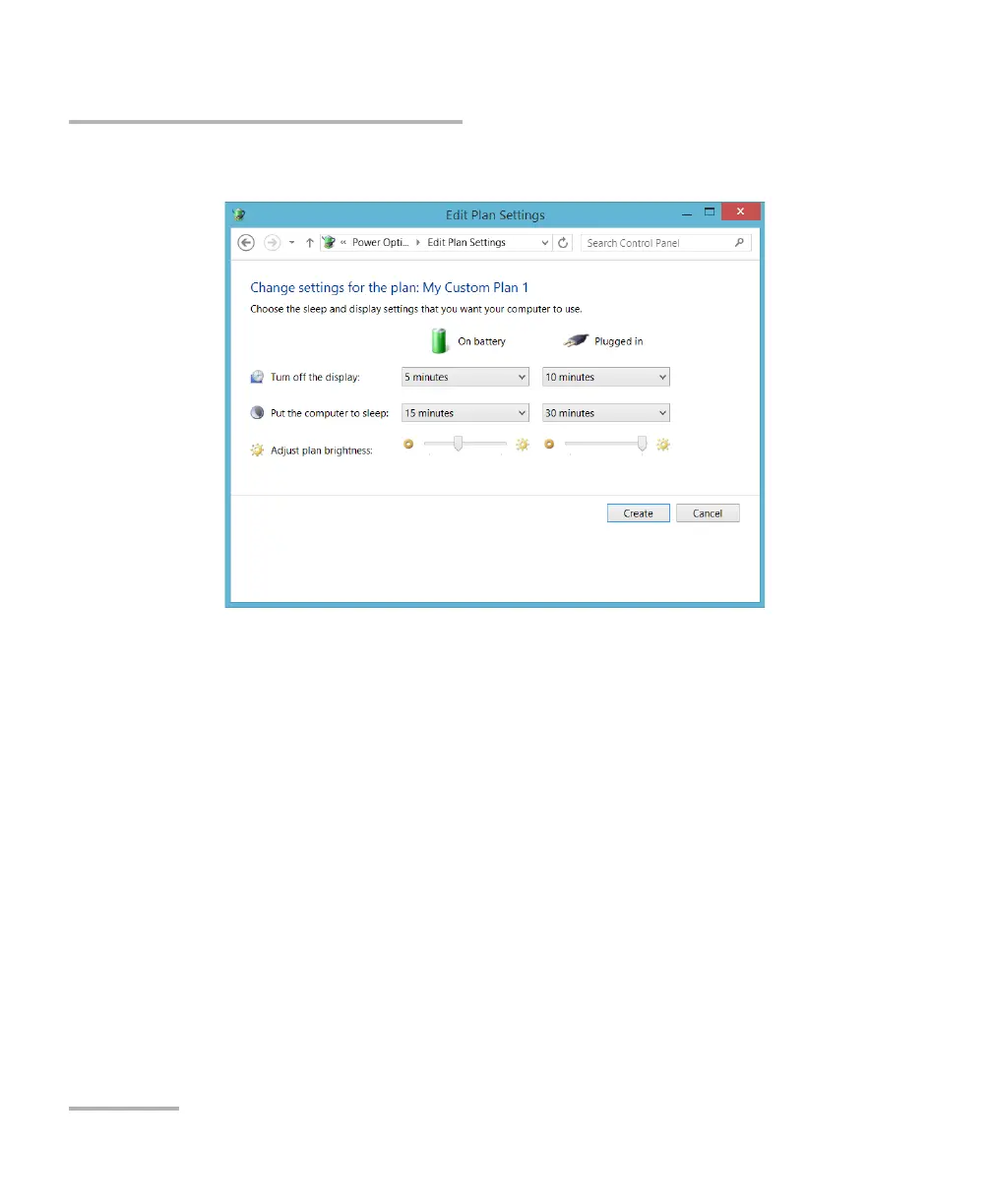

7. Modify the parameters to suit your needs.

8. Tap Create.
