Working with Your Unit

FTB-500 129

Managing Favorites

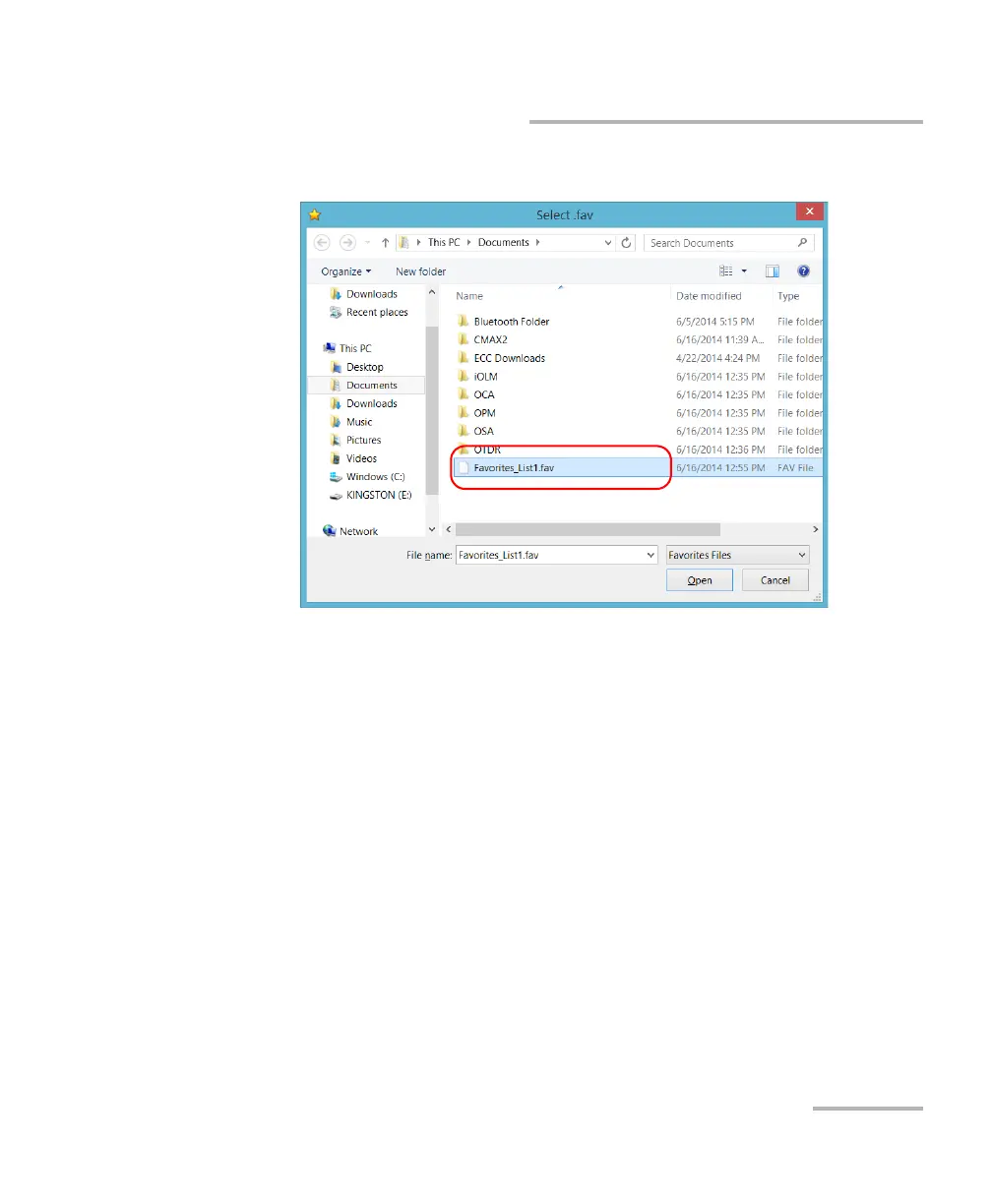

4. Select the desired Favorites list.

5. Tap Open.

6. Tap OK to apply the changes and close the window.
