Managing Data

162 FTB-500

Connecting to a VPN from Your Unit

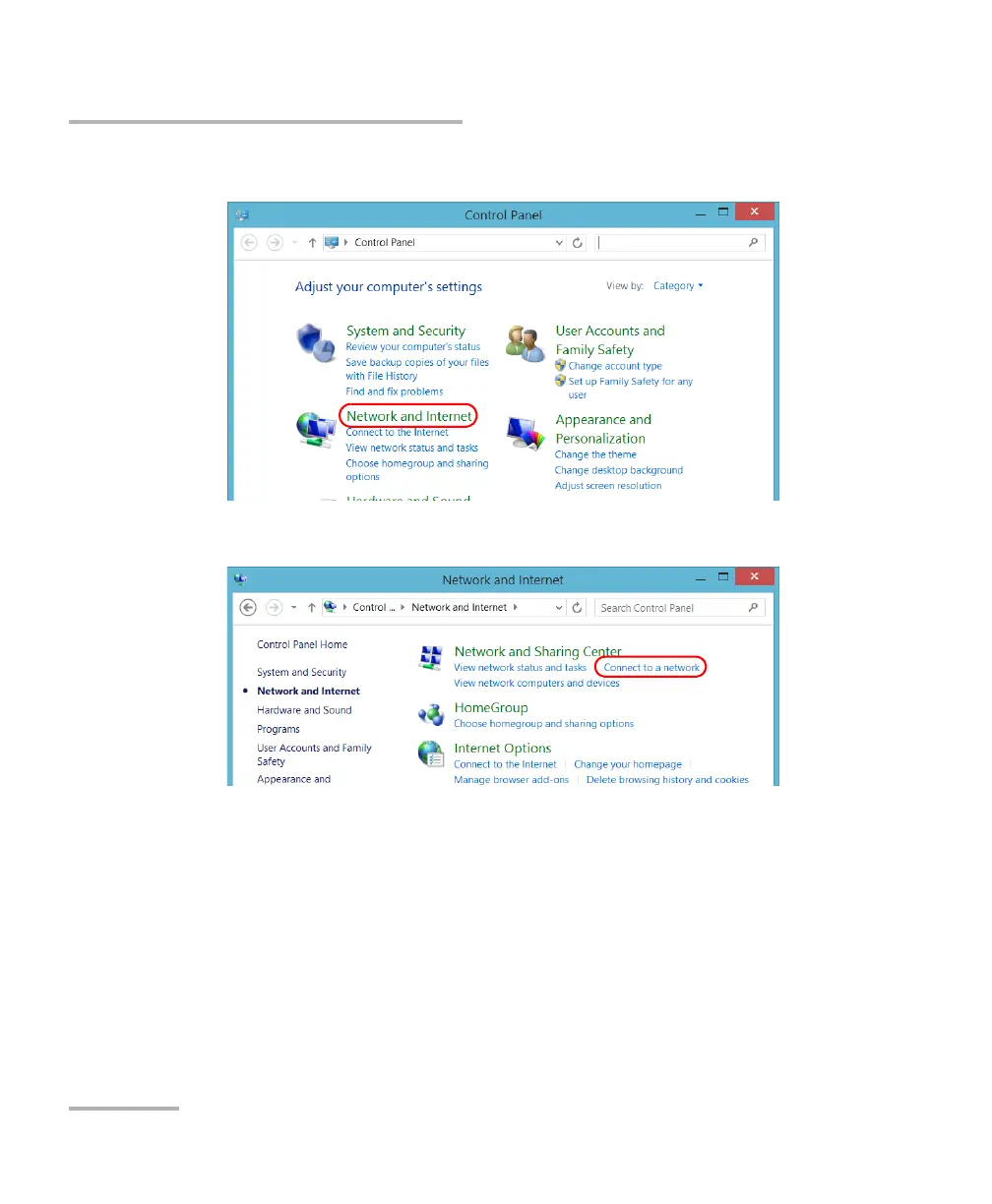

3. Tap Network and Internet.

4. Under Network and Sharing Center, tap Connect to a network.
