Accessing Your Unit Remotely

FTB-500 185

Adding Exceptions to the Firewall

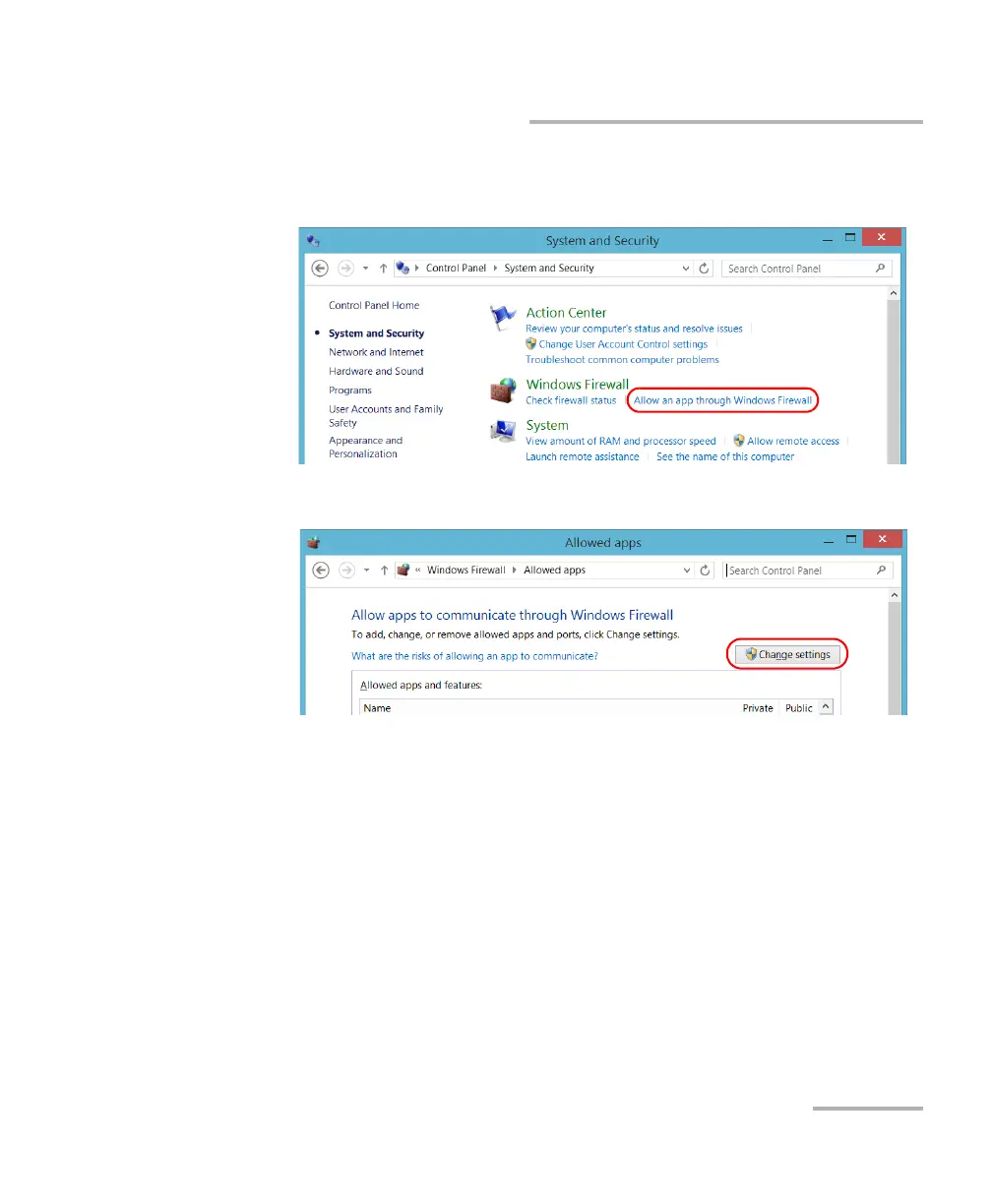

4. Under Windows Firewall, tap Allow an app through Windows

Firewall.

5. Tap the Change settings button.
