Maintenance

282 FTB-500

Managing Windows Updates

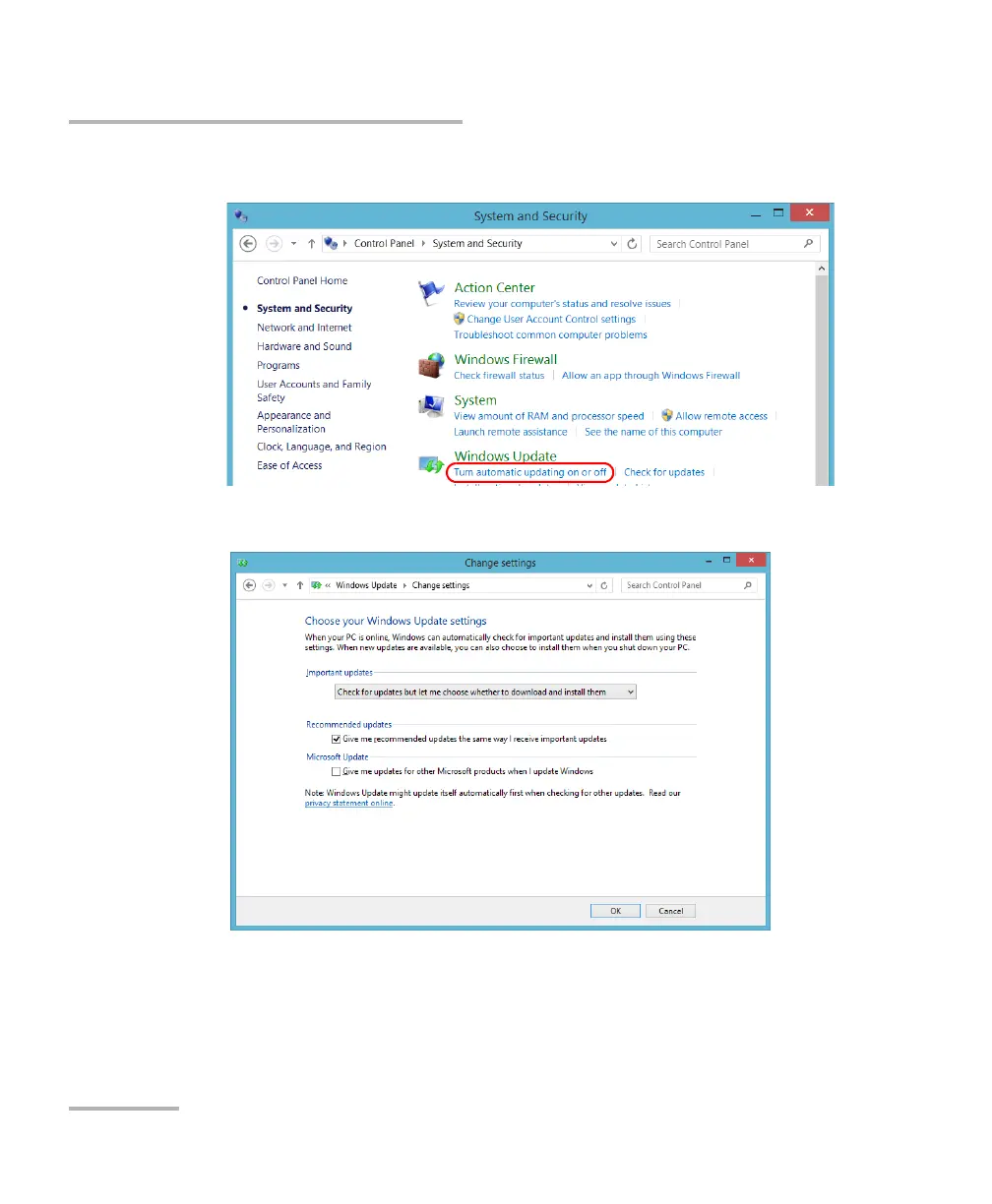

4. Under Windows Update, tap Turn automatic updating on or off.

5. Select the update options that best suit your needs.

6. Tap OK to confirm your changes and return to Control Panel.
