Troubleshooting

FTB-500 305

Restoring Your Unit to Normal Operation

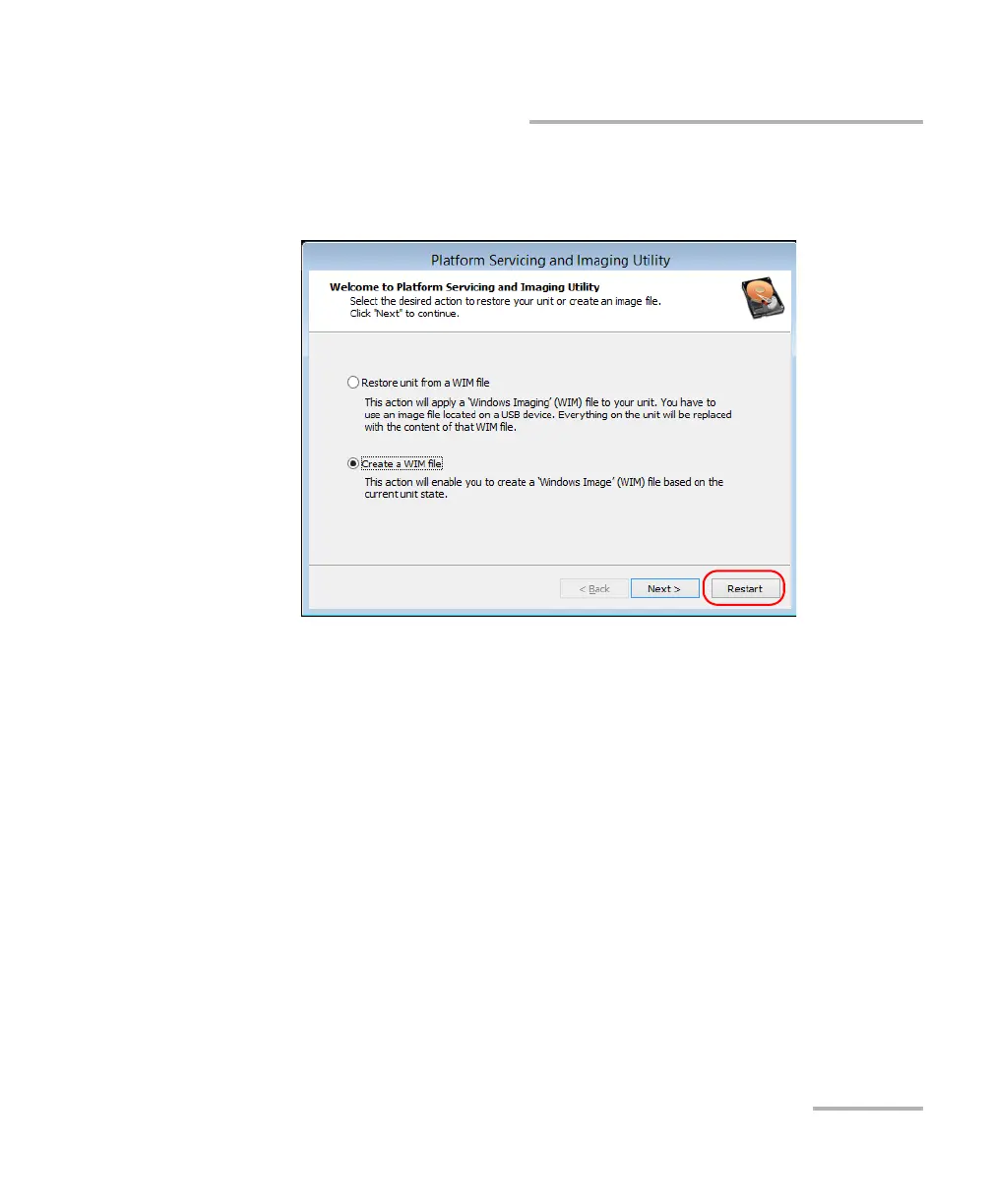

17. Tap Cancel to return to the Welcome window of the utility.

18. Tap Restart.

The WIM file is ready for future use.
