Getting Started with Your Unit

FTB-500 35

Turning Off Your Unit

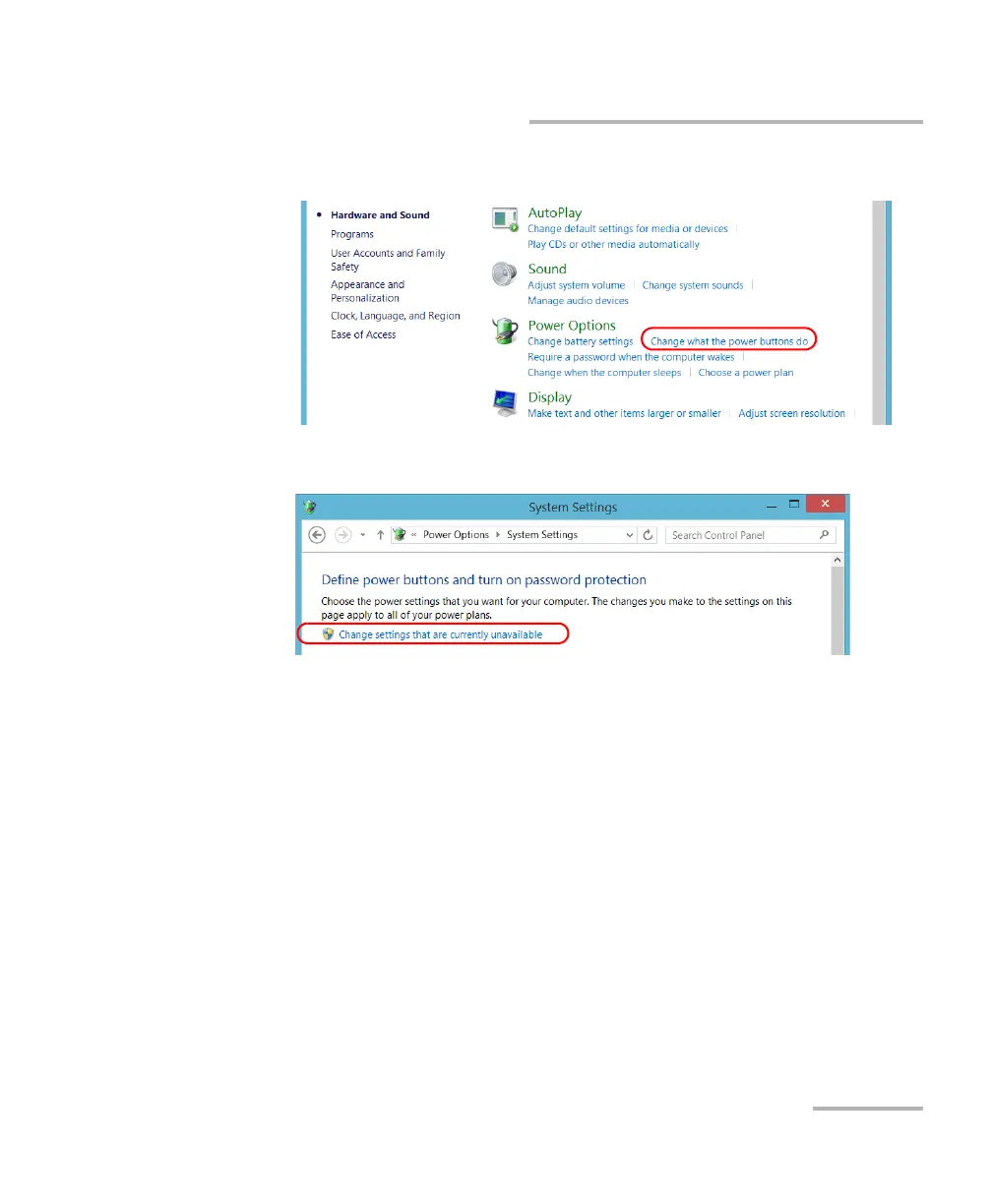

4. Under Power Options, tap Change what the power buttons do.

5. Tap Changes settings that are currently unavailable.
